Everlast Typhoon 330 - Panel Component Identification

23

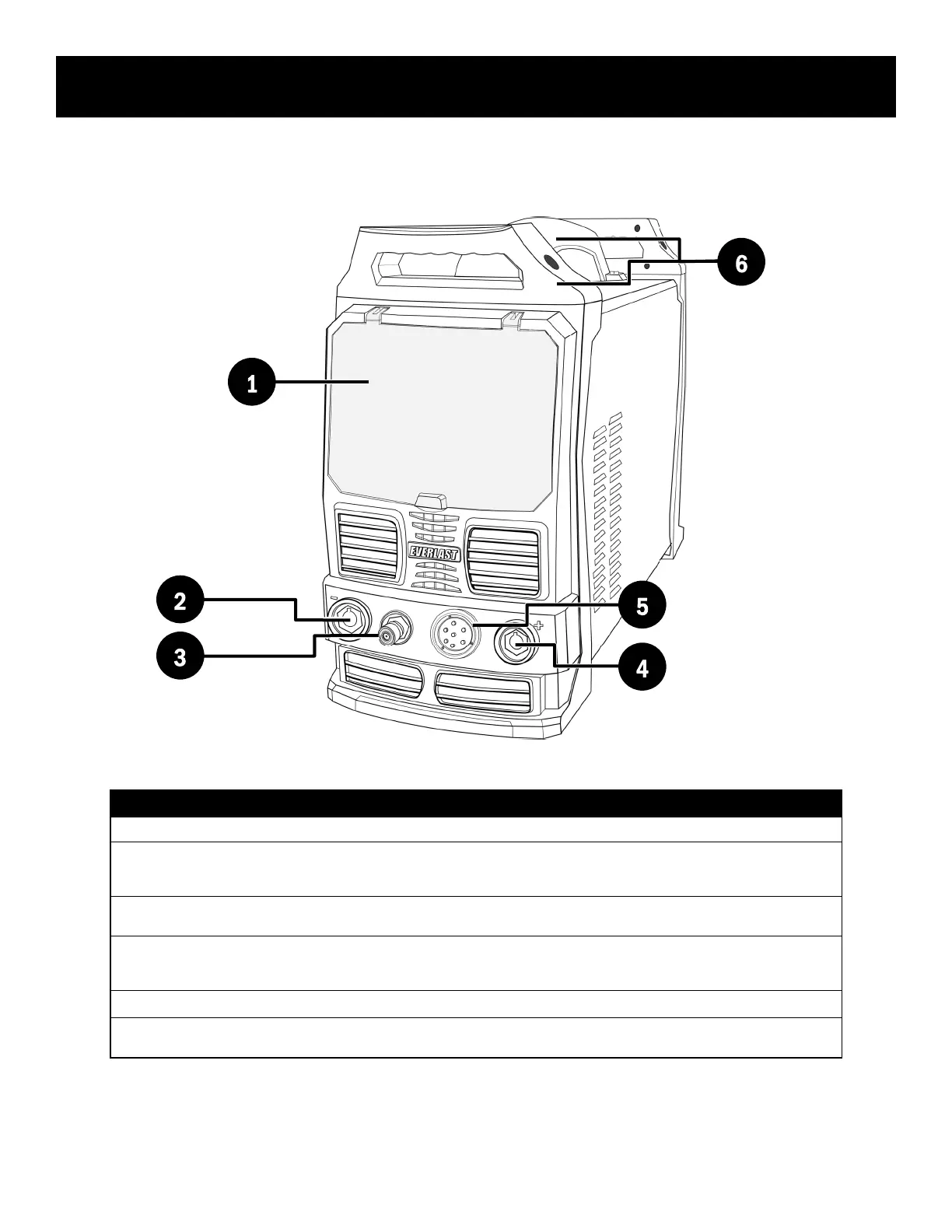

Component Identification and Explanation
1
2
3
4
5
6
No. Component Identication Function/Component Note
1 Protective Cover Keep down and in place during welding activities and while in storage.
2
Negative Terminal (-)
(DINSE 35/50mm
2
Type, 1/2” nominal dia.)
Connect the TIG torch to this terminal for all TIG welding applications including AC.
Connect the work clamp to this terminal for most DC Stick welding applications.
Connect Stick electrode holder (Stinger) to this terminal for AC Stick use.
3
Shielding Gas Connector
(Quick Connect, 9mm tube Type 21 )
Single Shut-off Type for Inert Gas.
Ref. EV-9MM-B-QUICKCONNECT-STDSET or 21KATS09MPX
4
Positive Terminal (+)
(DINSE 35/50mm
2
Type, 1/2” nominal dia.)
Connect the work clamp to this terminal for all TIG welding applications including
AC. Connect the Stick electrode holder (Stinger) to this terminal for most DC Stick
welding applications. Connect the work clamp to this terminal for AC Stick use.
5
7 Pin Control Connector (5/8” Type GX16-7) Ref. EV-PANA7-625-PLUG
6
Handles Assy. Required, removeable for Low Clearance applications. Be sure to Reinstall
screws in the cover and panel if the handles are removed or not installed.
Front Panel View
