Topaz Router
Revision 2.0 Page 15

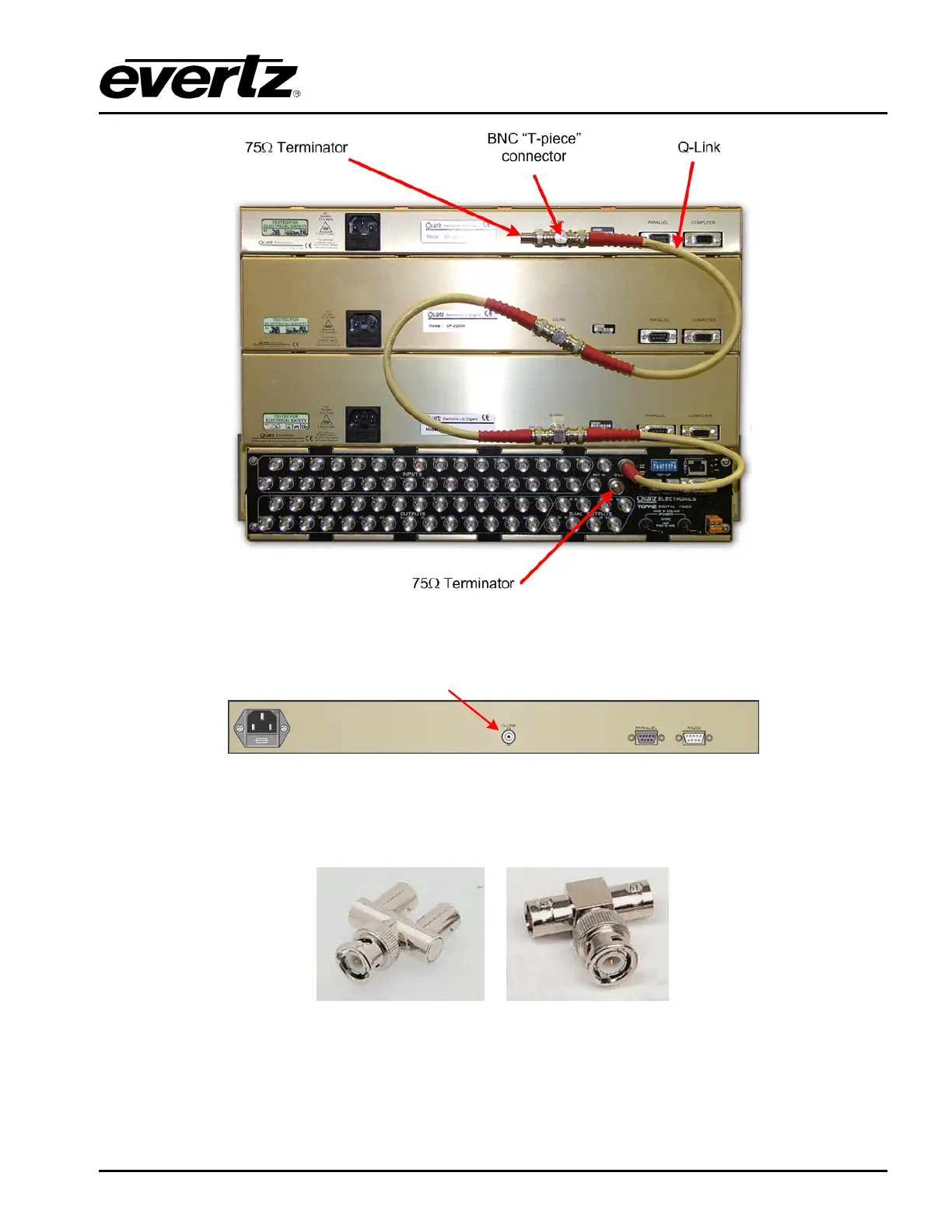

Figure 3-1: Q-LINK to Three Remote Control Panels (shown on Topaz Router)
Q-Link
Figure 3-2: Example Control Panel, rear view
A 'T-piece' is required to connect the control panel on to the Q-Link network.
Figure 3-3: T-Piece
The “T-piece” allows anyone of the control panels within a Q-Link chain to be removed from service and
replaced without disrupting the Q-Link, even temporarily.
This daisy chain method ensures the best transmission quality of the control signals down the cable.
