the routers serial number label. If you cannot find an exact match then use one of the
generic part numbers like Qxx00-SV-3232 for a Q3200-SV-3232 or a Q6400-SV-3232.

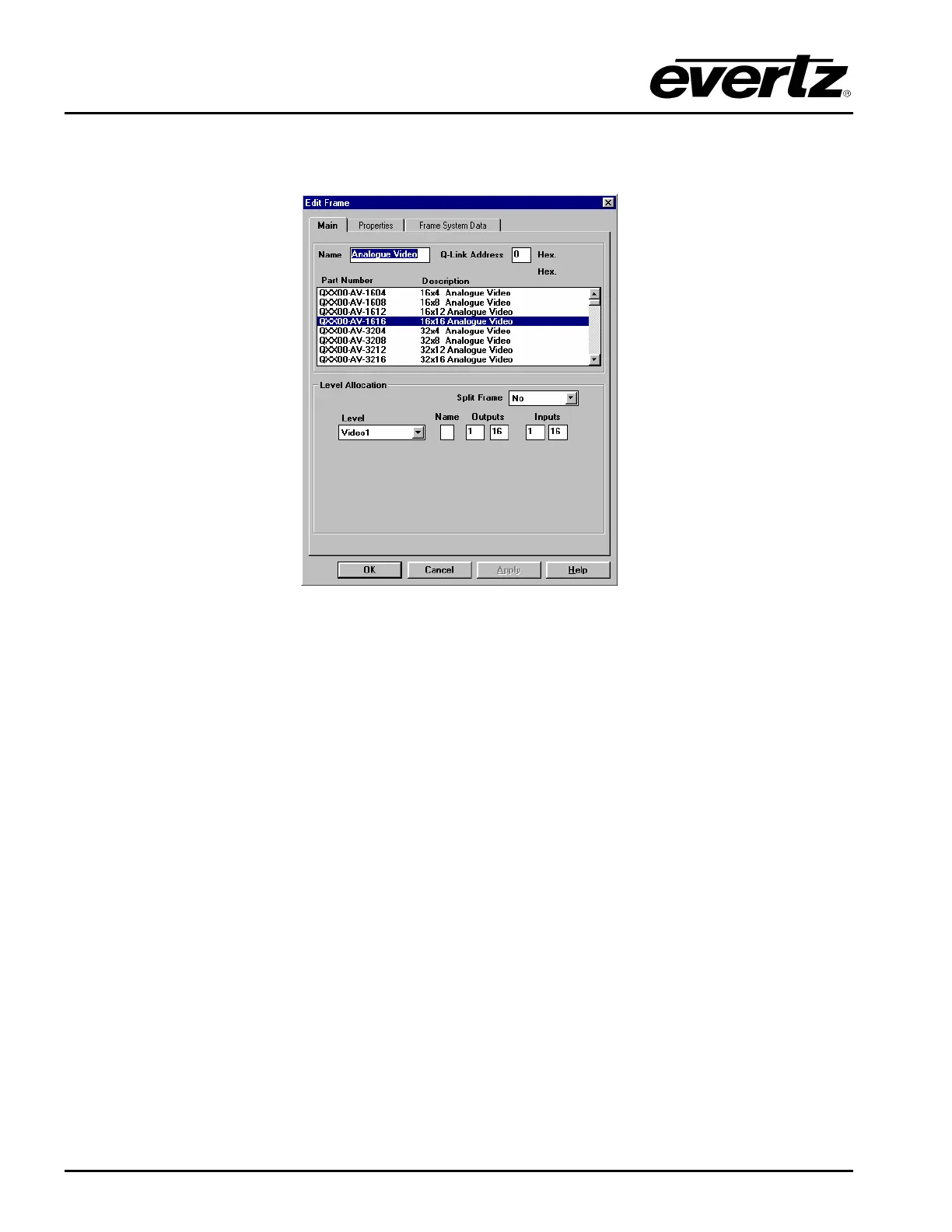

Figure 5-2: Main Tab of Edit Frame Window
Router frames must be ‘attached’ to the router level that they are to follow, and this is
set in the level allocation section in the lower half of the screen.
Now use the properties tab to set the routers internal control functions. Note that this
dialog is not essential for system operation, but if filled in helps to document how the
system is to be used.
