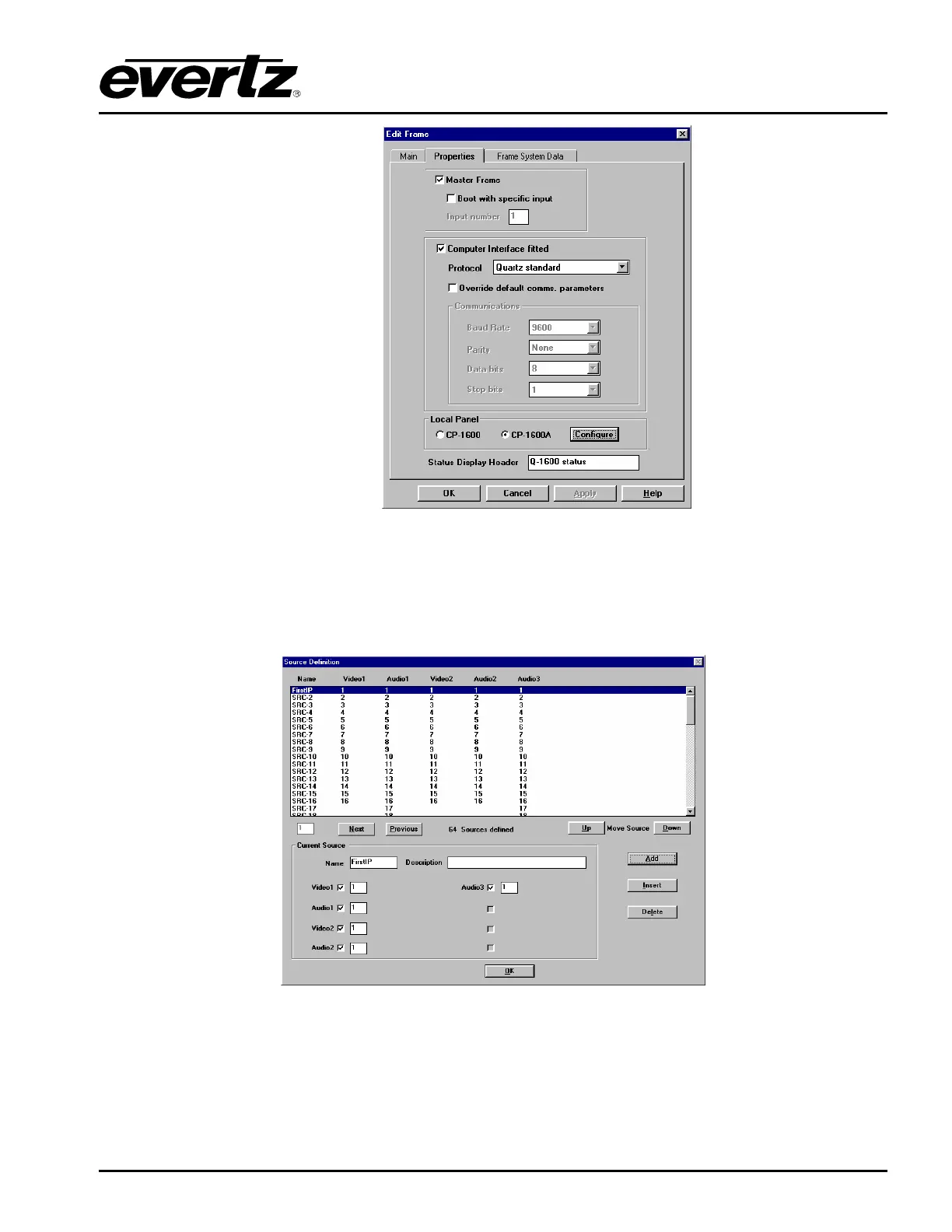

Figure 5-3: Properties Tab of Edit Frame Window
(3) Sources: Enter the sources dialog and use the add button to fill the name table with
SRC-1 to SRC-x. The names can be edited later once a few panels are configured and
working.
Figure 5-4: Source Definition
If you wish to edit a name now then select one row from the list of names in the upper part
of the screen, the details appear in the lower part of the screen. From here you can edit the
name and decide which signal levels that name will control when selected on a control
panel.
