Evolution F210 User Manual

21
www.evolutionpowertools.com
EN
• Ensurethatthebladeandbladeflangesarecleanandfree
from any contamination.
• Theinner-bladeflangeshouldbeleftinplacebutifitis
removed for cleaning it must be replaced the same way
round as it was removed from the machine.

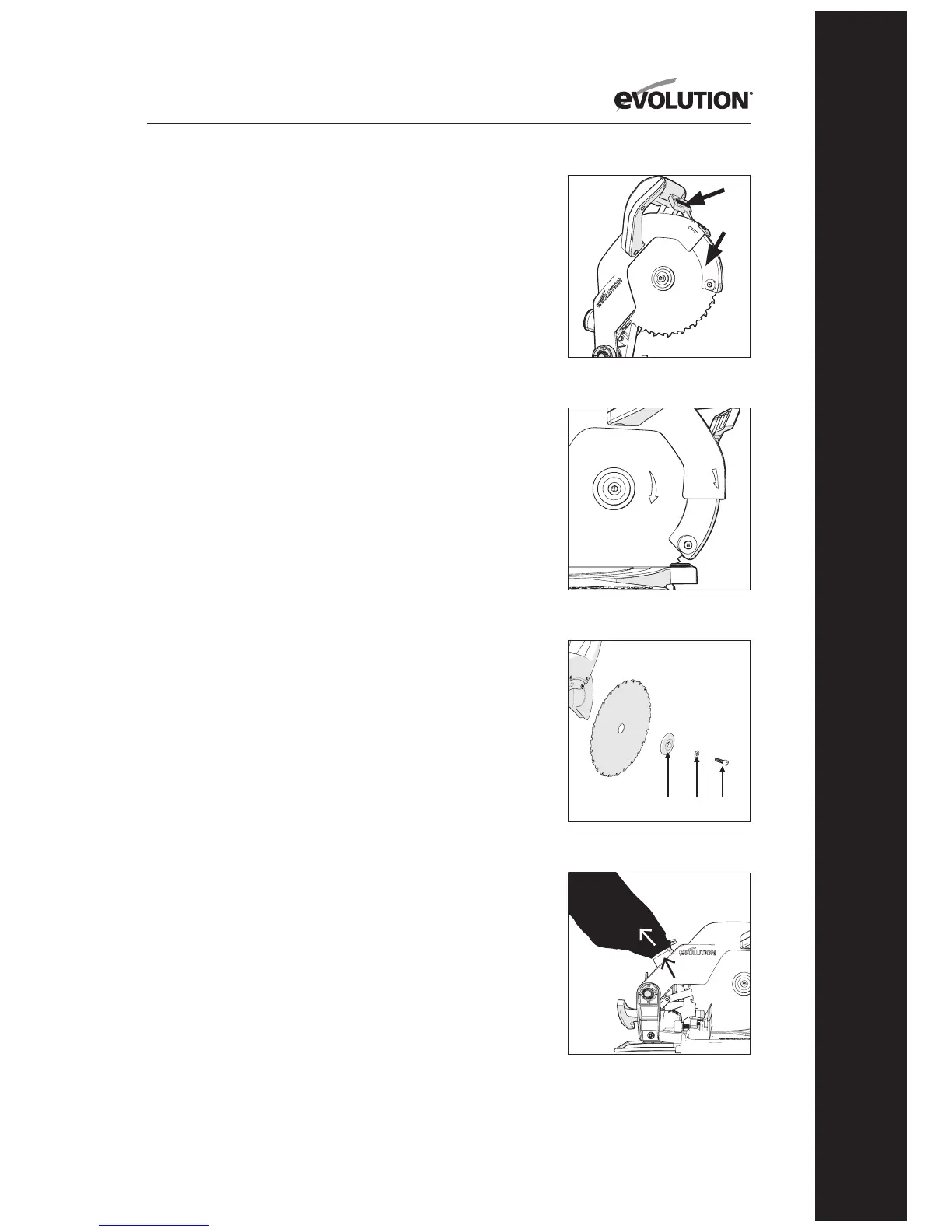

To insert the blade press the lower blade guard release trigger
(A) rotate the lower blade guard (B) up into the upper blade
guard and hold the lower blade guard in that position (Fig. 28).
Install the new blade onto the inner flange ensuring it is seated
properly on the flange shoulder and then slowly release the
lower blade guard back to its original closed position.
Make sure the rotation arrow on the blade (A) matches the
clockwise rotation arrow on the upper guard (B) (Fig. 29).
Note: The blade teeth should always point downward at the
front of the saw.
Install the outer flange (1) (flat face onto the machine),
washer (2) and arbor screw (3) (Fig. 30).
Press & keep pressing the arbor lock button on the motor
housing while tightening the arbor screw using the supplied
hex key until the button locates fully into the shaft and locks
the shaft (Fig. 26).
Tighten the arbor screw using moderate force, but do not
overtighten. Ensure the hex key is removed and the arbor lock
button has released before operating. Ensure the blade guard
is fully functional before using the machine.
(8.12)
USE OF OPTIONAL EVOLUTION ACCESSORIES
Not supplied as original equipment (see ‘Additional
Accessories’).
(8.13) DUST BAG
A dust bag can be tted to the extraction port at the rear of
the machine. The dust bag is for use when cutting wooden
materials only.
• Slidethedustbagoverthedustextractionport,
ensuring that the spring clip grips the port holding
the dust bag securely in place (Fig. 31).
Note: For operational eciency empty the dust bag when
it becomes 2/3 full. Dispose of the contents of the dust bag
in an environmentally responsible way. It may be necessary
to wear a dust mask when emptying the dust bag.
Note: A workshop vacuum extraction machine can be
attached to the dust extraction port if required. Follow the
vacuum manufacturers instructions if such a machine is tted.
WARNING: Do not use the Dust Bag when cutting
metallic materials.
Fig. 28
Fig. 31
A
B
Fig. 29
A B
(1)
(2) (3)
Fig. 30
(1)
(2) (3)
