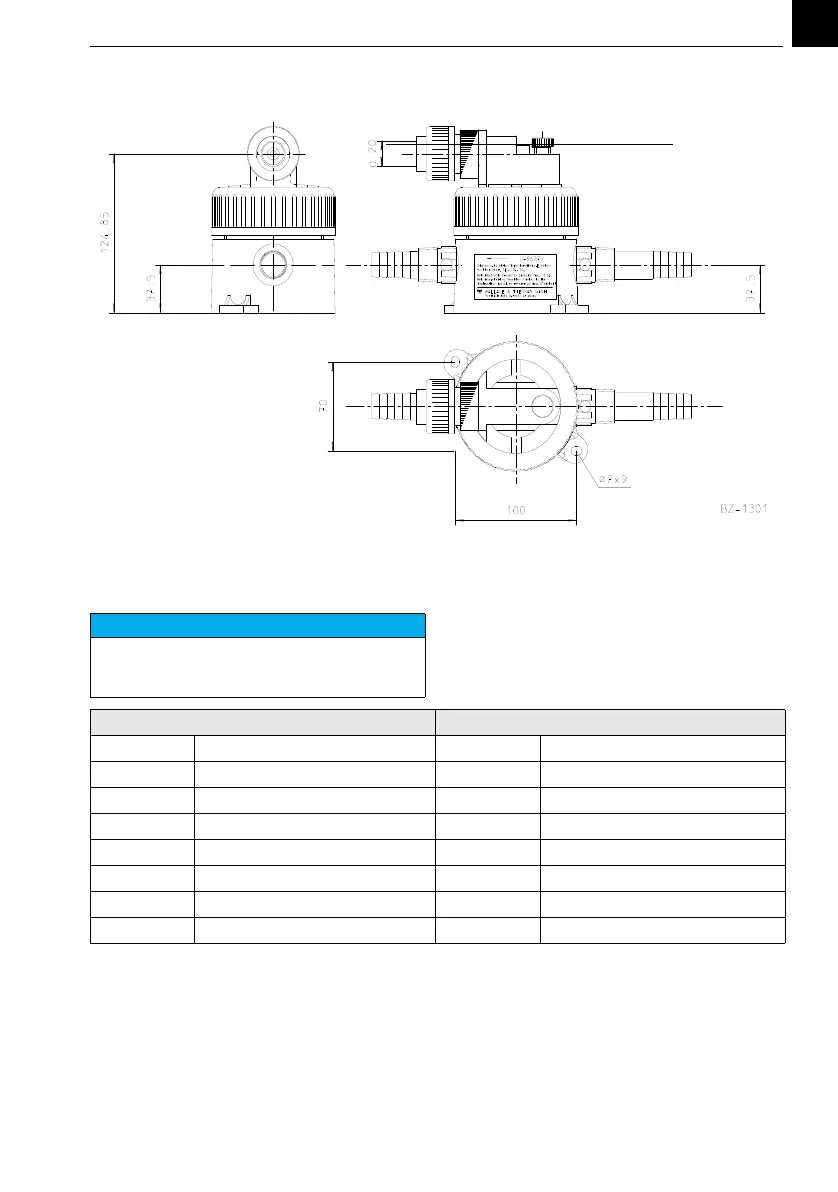

7.2.2 Mounting of standard injector 3/4“ W3T171369
A Gas inlet can be turned in 45° steps
A
NOTICE
Install the injector vertically (direction of
flow upward!) or horizontally. Do not install
hanging overhead!
Nozzle Tailway
99 W3T161564 D W2T507599
140 W3T173060 E W2T507618
193 W3T173078 F W2T507600
242 W3T173080 G W2T507601
70 W3T172990 H W2T507602
120 W2T507210 J W2T507603
165 W3T173070 S W3T173099
C W2T507614
