Evoqua V10K - Mounting of Anti-syphon Injector 3;4

7. Drawings V10k automatic
46
EN

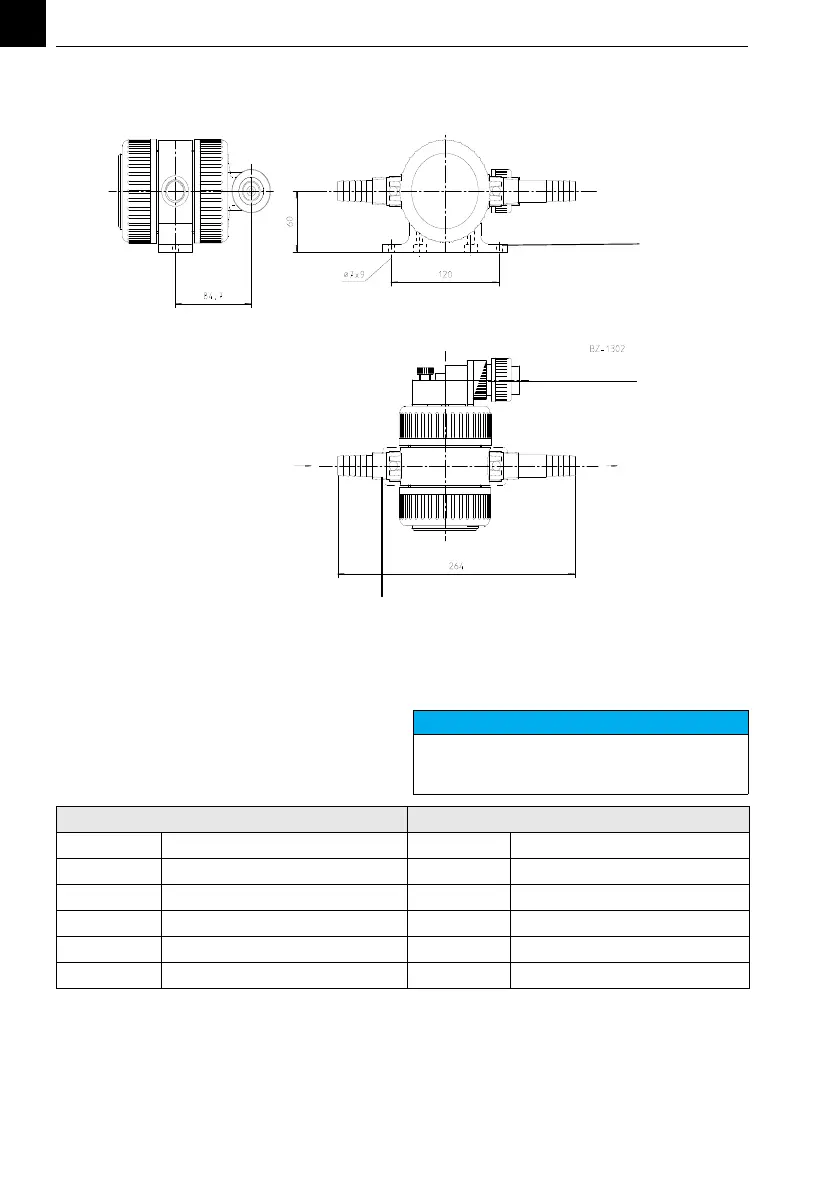

7.2.3 Mounting of anti‐syphon injector 3/4“ W3T171370
A Console (W3T161479), screws (2x
W2T504542)
(not included in W3T171370)
B Gas inlet can be turned in 45° steps
C Nozzle with cross-hole!
A
B
C
NOTICE
Install the injector vertically (direction of
flow upward!) or horizontally. Do not install
hanging overhead!
Nozzle Tailway
99 W3T171246 D W2T507599
140 W3T171257 F W2T507600
193 W3T171271 G W2T507601
242 W3T171273 H W2T507602
J W2T507603
S W3T173099
