V10k automatic 7. Drawings
47
EN

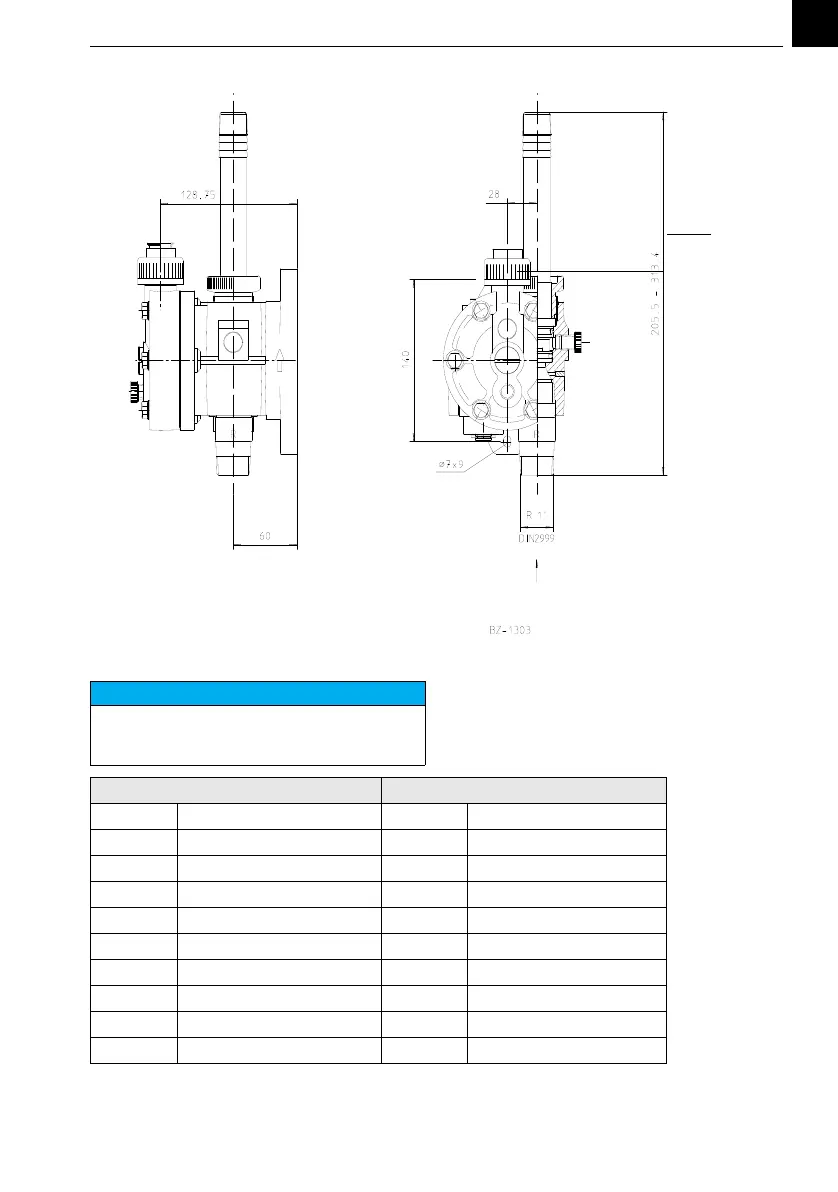

7.2.4 Mounting of injector 1“ W3T171367 and W3T171368
A Total length depending on tailway
B Gas inlet can be turned in 60° steps
NOTICE
Install the injector vertically (direction of
flow upward!) or horizontally. Do not install
hanging overhead!
Throat Tailway
99 W2T506230 C W2T507414
120 W2T506088 D W3T165389
140 W2T506089 E W2T507415
165 W2T506090 F W2T507416
193 W2T506091 G W2T507417
242 W2T506092 H W2T507418
312 W2T506093 J W2T507419
70 W2T506229 K W2T507420
L W2T507421
B W3T165342
