Evoqua V10K - Injector 3;4 with Accessory

7. Drawings V10k automatic
48
EN

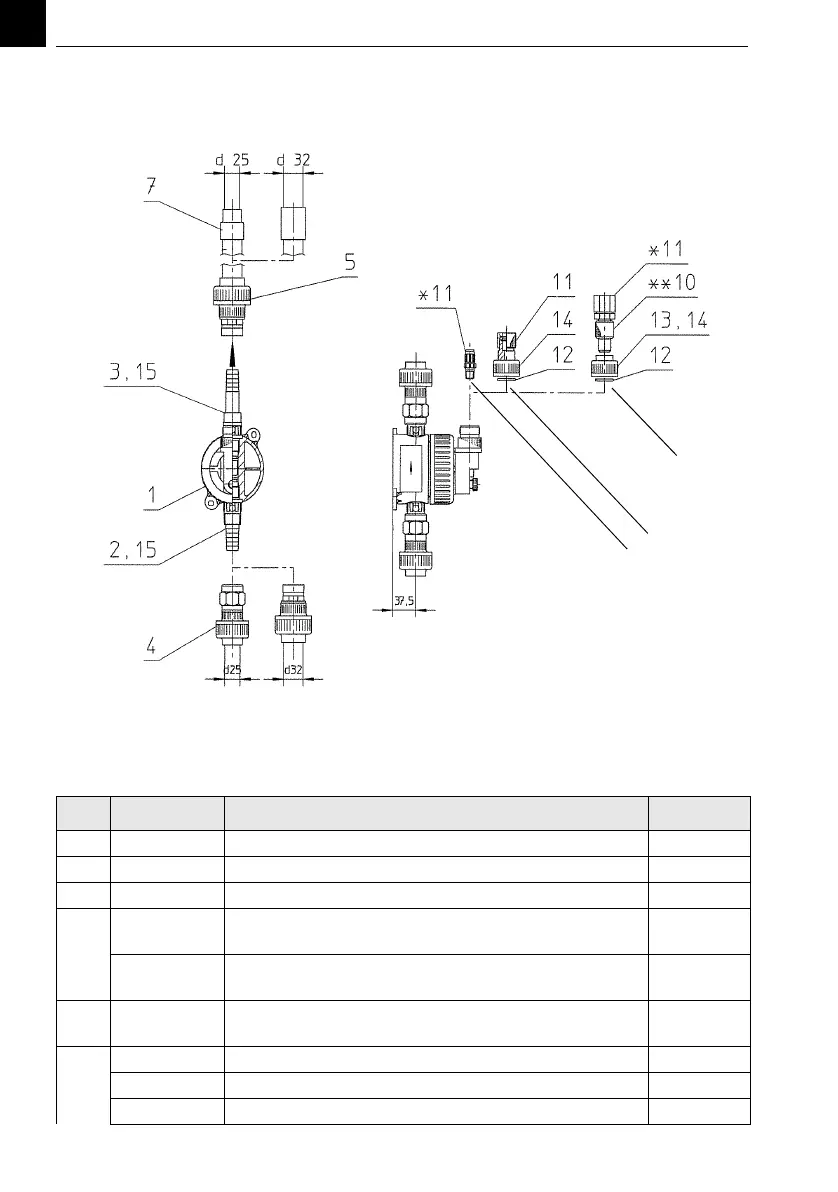

7.2.5 Injector 3/4" with accessory
A for hose ID12x2 (W2T505677)
B for hose ID9,5x1,6 (W2T505672 )
C for hose ID6,35x1,6 (W2T505671)
Pos. 4 and 5 tightened with teflon tape.
* tightened with silicone grease (W3T165077).
** cemented (PVC)
A
B
C
Pos Part no. Description Qty.
1 W3T171369 Injector 3/4" PVC-U 1
2 Nozzle 1
3 Tailway 1
4 W3T167396 Adaptor union incl. o-ring
W3T172725
DN25-R 3/4"
d32.92 x 3.52
1
W3T163750 Adaptor union incl. o-ring
W3T173010
DN 20-R 3/4
d28.17 x 3.52
1
5 W3T163705 Adaptor union incl. o-ring
W3T172725
DN25-R 3/4"
d32.92 x 3.52
1
7 W2T505599 Reduction d32+40-20+25 1
W2T507634 Socket PVC-U; d32 1
W2T505442 Reduction d32+40-25+32 1
