Evoqua V10K - Anti-syphon-Injector 3;4 with Accessory

V10k automatic 7. Drawings
49
EN

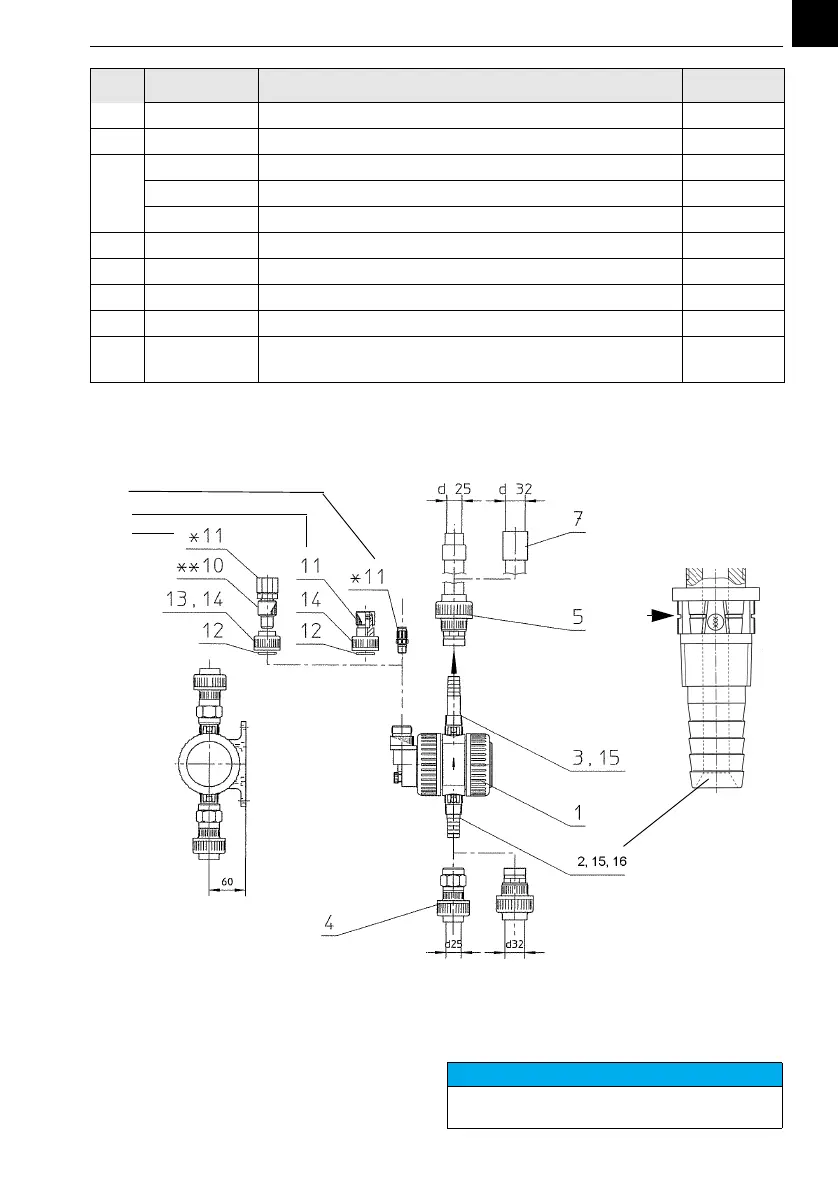

7.2.6 Anti‐syphon‐injector 3/4" with accessory
A for hose ID6,35x1,6 (W2T505671).
B for hose ID9,5x1,6 (W2T505672).
C for hose ID12x2 (W2T505677).
Pos. 4 and 5 tightened with teflon tape.
* tightened with silicone grease (W3T165077).
** cemeted (PVC)
W2T505599 Reduction d32+40-20+25 1
10 W3T167194 Reduction nipple PVC, 1/2"NPT x DN 15 1
11 W3T171372 Connector for hose 3/8 x 1/2" 1
W3T161698 Connector 1/2-14NPT 1
W3T171353 Connector for hose D3/8" d1/4" 1
12 W3T172724 O-ring d20.22 x 3.53/FPM 1
13 W2T507291 Union end PVC-U; d20 1
14 W2T506920 Union end PVC-U; d20 1
15 W3T169068 O-ring d13.94 x 2.62/FPM 2
20 W3T173049 Fixing set 2 x dowel S8,
2 x screw 6x45 with washer
1
Pos Part no. Description Qty.
A
B
C
NOTICE
Pos. 2: Only use nozzle with groove (see
arrow)!.
