26
THG/TLG/TLT
3. HoldthecontrolrmlyandpulltheDIN-8plug(1) out of it.
Fig. 30
7.7 After use
Disconnectthepillarfromthepowersupplyorswitchothe
control (⮑ Separate operating manual for the control).

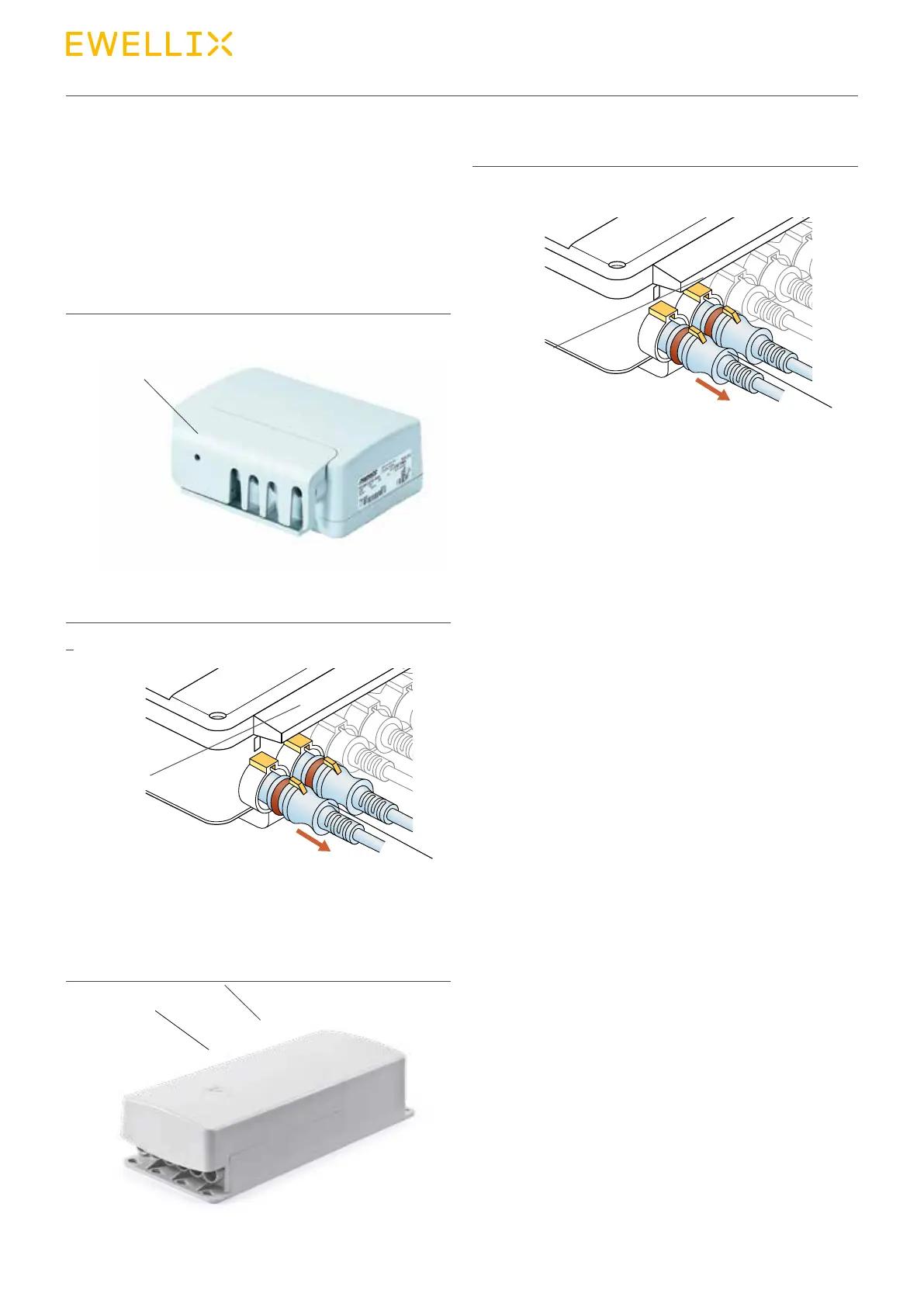

7.6.3 Pull the DIN-8 plug out of the
BCU/VCU/SCU control unit
BCU control
Proceed as follows to pull DIN-8 plug out of the connection
socket of the control unit:
1. press with a screw driver into to hole (1) to release the
cover to lift up and remove it:
Fig. 27
BCU control
2. HoldthecontrolrmlyandpulltheDIN-8plug(1) out of it.
Fig. 28
VCU and SCU control
1. Loosen and remove the screw (1).
2. Lift up the cover (2) and remove it.
Fig. 29
1
1
1
1
2
1
