34
THG/TLG/TLT

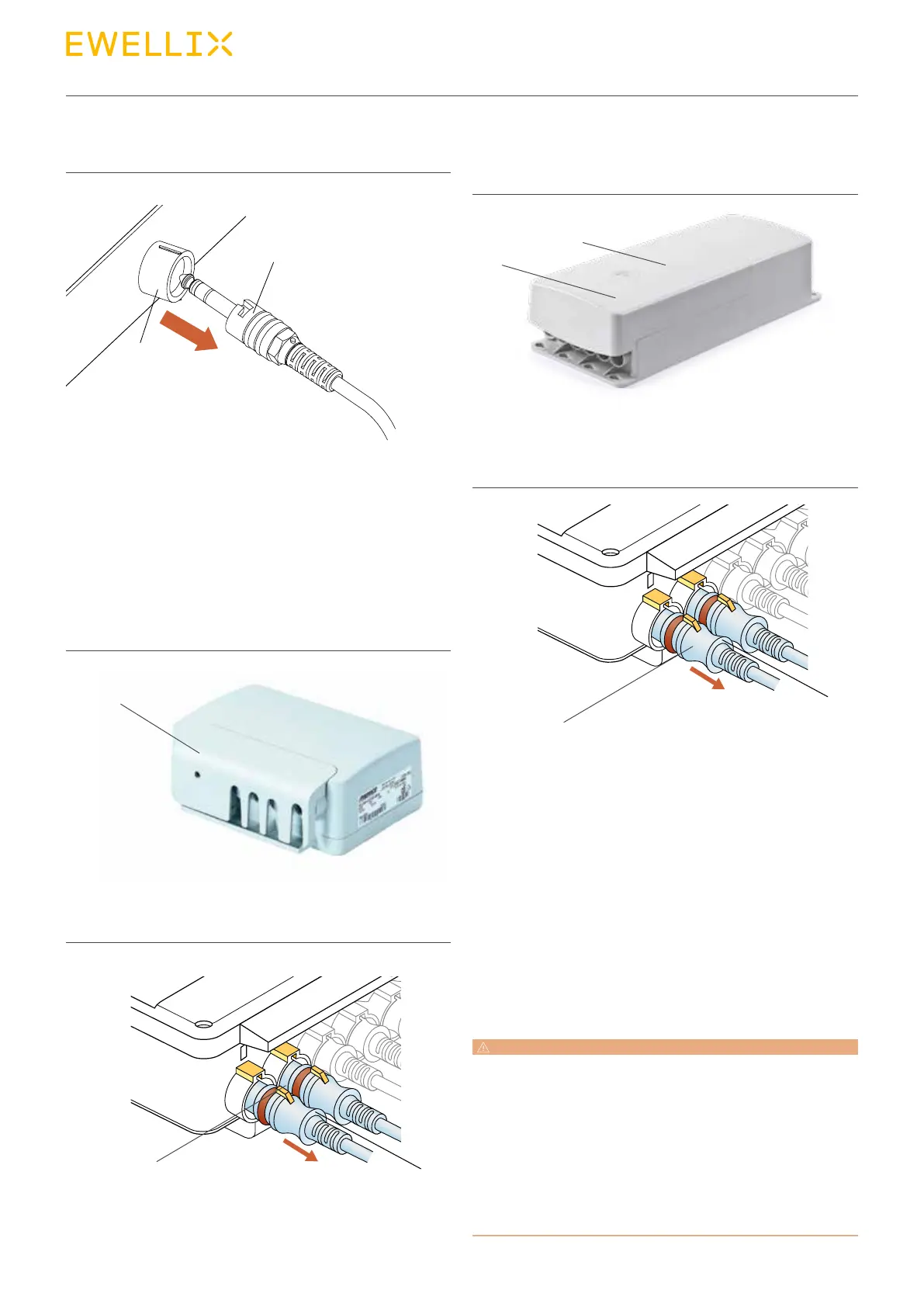

3. Pull jack plug (1) out of the connection outlet (2) of the
control unit (arrow).
Fig. 34
10.2.3 Pull the DIN-8 plug out of the
BCU/ VCU/SCU control unit
BCU control
Pull DIN-8 plug out of the connection socket of the control
unit:
1. press with a screw driver into to hole (1) to release the
cover to lift up and remove it:
Fig. 35
2. HoldthecontrolrmlyandpulltheDIN-8plug(1) out of it.
Fig. 36
1
1
1
2
VCU and SCU control
1. Loosen and remove the screw (1).
2. Lift up the cover (2) and remove it.
Fig. 37
3. HoldthecontrolrmlyandpulltheDIN-8plug(1) out of it.
Fig. 38
10.3 Disposal
For the disposal, uninstall the device according to applicable
local occupational health and environmental regulations (re-
fer to chapter ⮑ 10 Dismantling and disposal).
For disposal, clean component groups and components
professionally and in accordance with applicable local occu-
pational health and environmental regulations.
If no return or disposal agreement has been made with
Ewellix, send the uninstalled components to a licensed recy-
cler for recycling.
CAUTION
Incorrect disposal can cause environmental damage
Therefore:
• Electrical scrap, electronic components, lubricants and other aux-
iliary materials must be disposed of by authorised recycling com-
panies.
• If in doubt, obtain information about disposal in accordance with
the environmental regulations from the local municipal authorities
or specialised waste disposal companies.
1
2
1
