3.0 Technical data
9
NOTE
Technical data (dimensions, weights, output, connection values
etc.) can be found in the appendix.
3.1 Safety equipment
WARNING
Life-threatening situation due to malfunctioning safety
equipment!
Safe operation is possible only if safety equipment is in good
working order.
Therefore:
• Always check functionality of safety equipment according to the
maintenance plan in section 8.2 of this manual.
• Never disengage safety equipment.
• Safetyequipmentmayneverbebypassedormodied.
3.2 Operating conditions
Environment
Indoor use only
Information Value Unit
Ambient temperture +10 to +40 °C
Relative atmospheric humidity, maximum
(no build up of condensation)
up to 85 %
Air pressure 700 to 1 060 hPa
Maximun altitude above sea level
2 000
(3 000 for MOPP)
m
Supply mains with overvoltage category I –
Pollution degree 2 –
Duration (intermittent)
Information Value Unit
Maximum operating time without a break 1 Minutes
Break until next operation 9 Minutes
3.0 Technical data

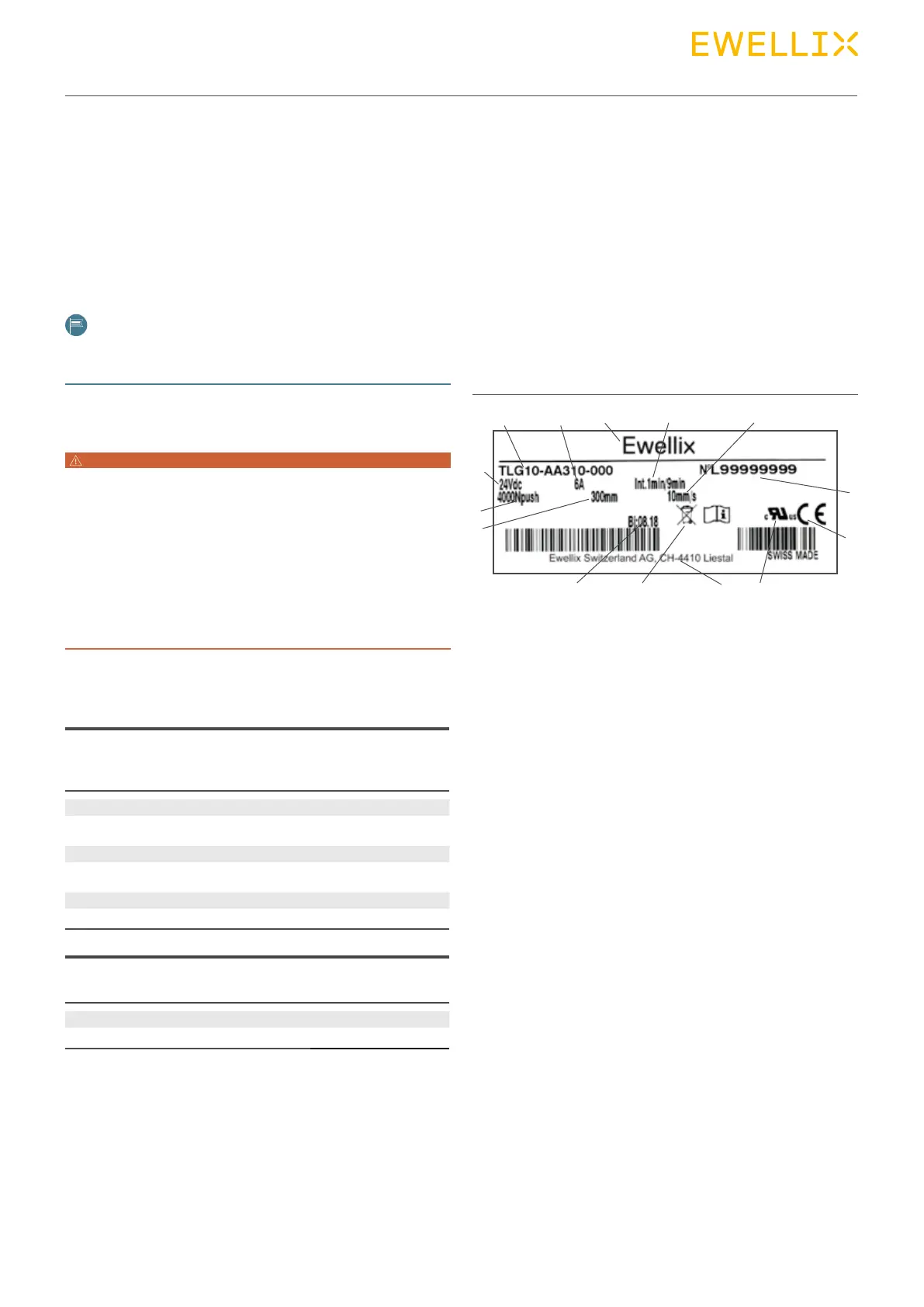

3.3 Type label
The type label contains the following information:
Fig. 1
Type label (without options)
1. Type designation
2. Current consumption
3. Manufacturer
4. On/O-Time(dutycycle)
5. Speed of the telescopic pillar
6. Serial number
7. CE mark
8. UL quality mark
9. Manufacturer’s address
10. Disposal information
11. Manufacturing date (month.year)
12. Maximum lift length
13. Compressive force
14. Voltage
For further information see into the manual
