Ewellix THG - THG Telemag Telescopic Pillar; Technical Data

36
THG/TLG/TLT
THG

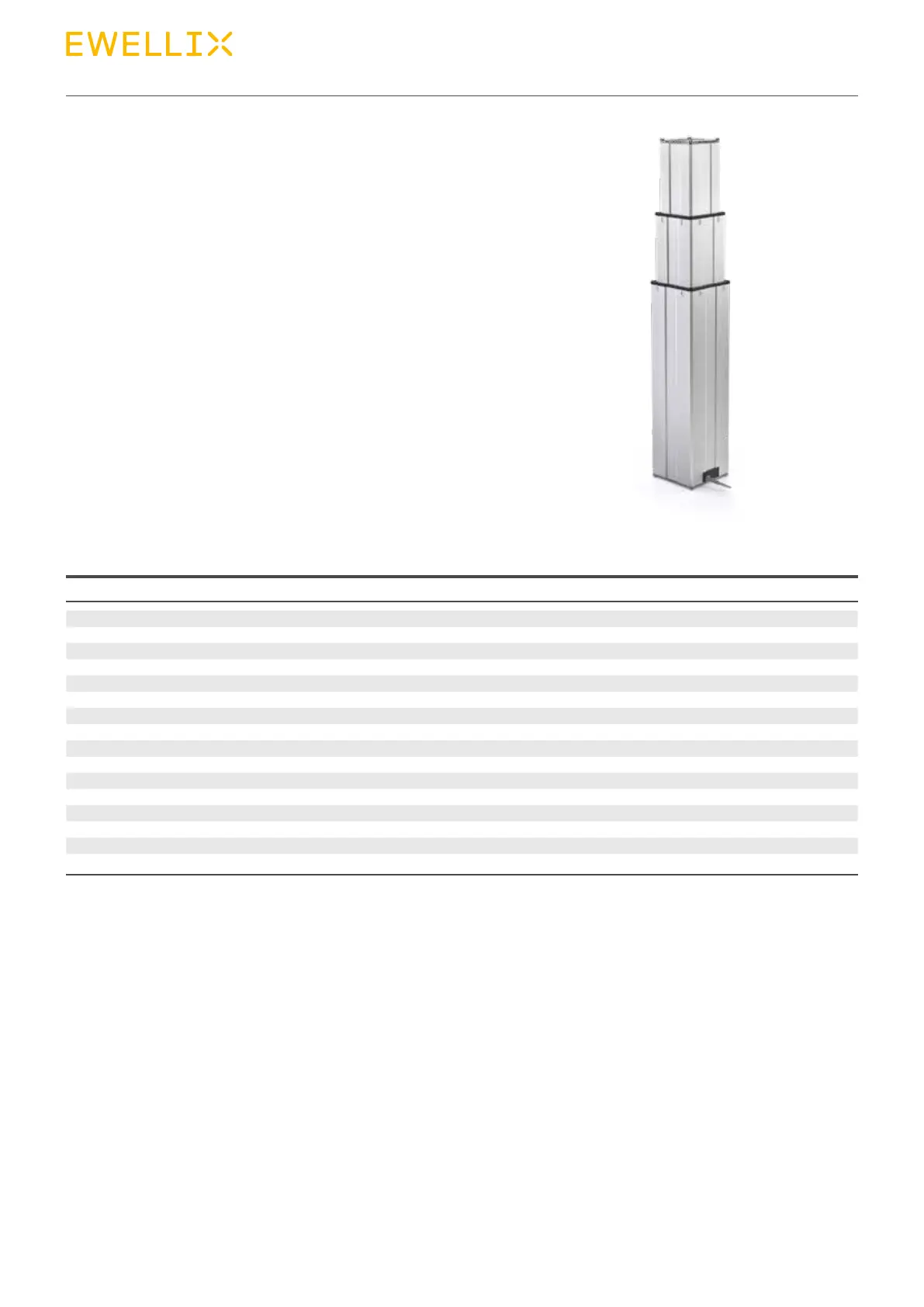

Telemag telescopic pillar
Technical data
Benets
• Compact design
• Robust
Standards
• EN/IEC 60601–1
• UL 60601–1
1)
For details, please see bending load diagrams (⮑ page 38)
Unit THG 10/11–BA THG 10/11–CA THG 10/11–BD THG 10/11–CD
Rated push load N 2 000 1 000 2 000 1 000
Rated pull load N 0 0 0 0
Bending load Nm up to 250
1)
up to 120
1)
up to 1 000
1)
up to 450
1)
Speed (full load to no load) mm/s 5 to 7 12 to 15 5 to 7 12 to 15
Telescopic pillar version # of section 2-section 2-section 3-section 3-section
Stroke mm 200 to 700 200 to 700 200 to 700 200 to 700
Retracted length mm S+270 S+270 S+18 0 S+180
Voltage V DC 24 24 24 24
Power W 120 120 120 120
Current A 5 5 5 5
Duty cycle: intermittent operation min. 1 min./9 min 1 min./9 min 1 min./9 min 1 min./9 min
Ambient temperature °C +10 to +40 +10 to +40 +10 to +40 +10 to +40
Type of protection IP 30 30 30 30
Protection class – SELV SELV SELV SELV
Type of control – electrical electrical electrical electrical
Weight kg 8 to 14 8 to 14 8 to 14 8 to 14
