Getting Started With Your Variable Attenuator
12 FVA-3100
Installing your FVA-3100 Variable Attenuator in a Rackmount
To install your FVA-3100 Variable Attenuator in a rackmount:
1. Slide the benchtop unit into the rackmount and tighten it from
underneath using the four cover fixing screws.

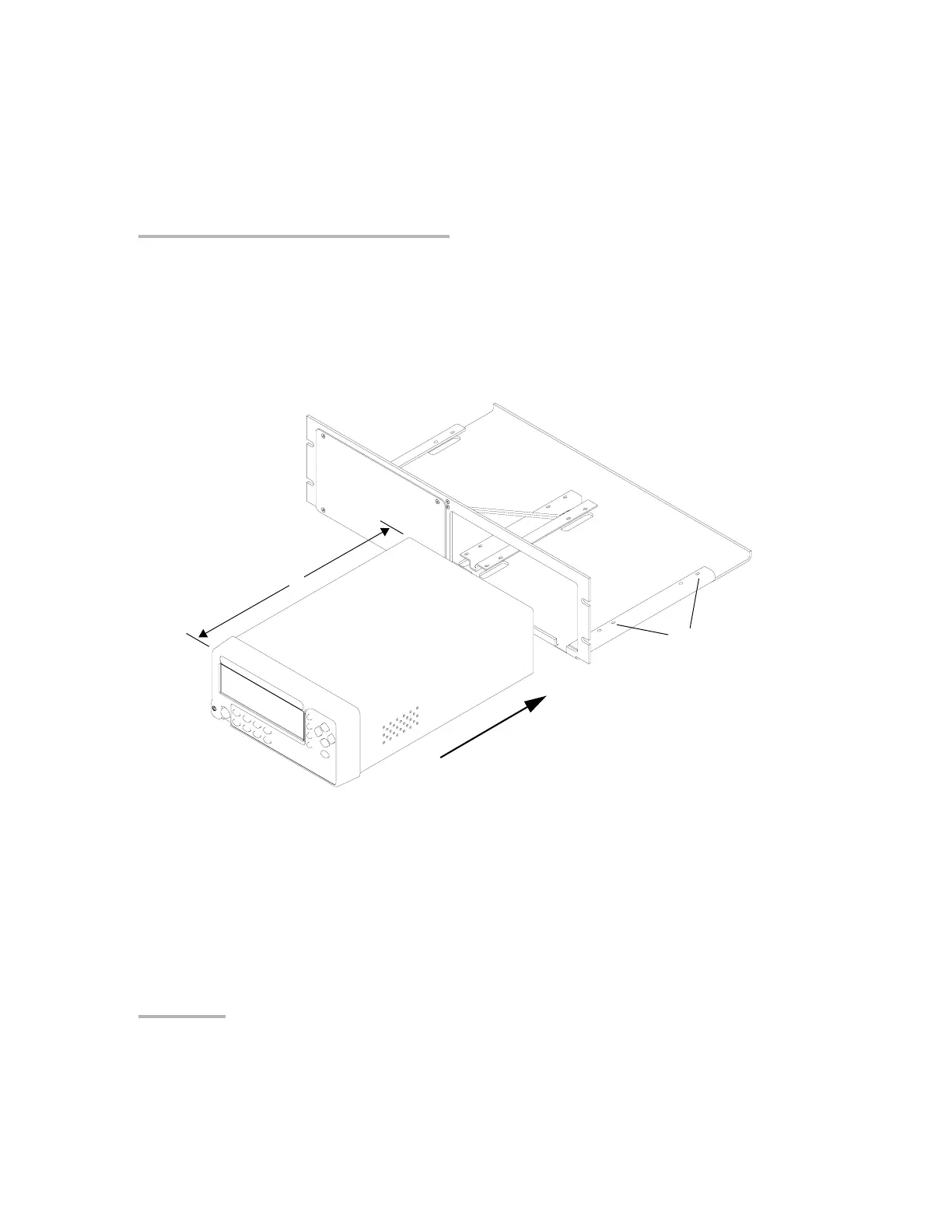

If measurement X on the illustration exceeds 11.125 in., fix the unit into
the four holes identified as A. Otherwise, use the other four holes.
2. If a second benchtop is to be installed, remove the cover plate and
repeat step 1.
X
A
