Setting Up Your Variable Attenuator
26 FVA-3100
Selecting the Attenuation
To set the maximum attenuation:
1. Select a wavelength by clicking on the wavelength control until you
reach the desired wavelength.
2. Press the Abs button.
3. Press the Attenuation button and set an attenuation of -999.99 dB.
4. Press ENTER. The Variable Attenuator will default to the maximum
attenuation.

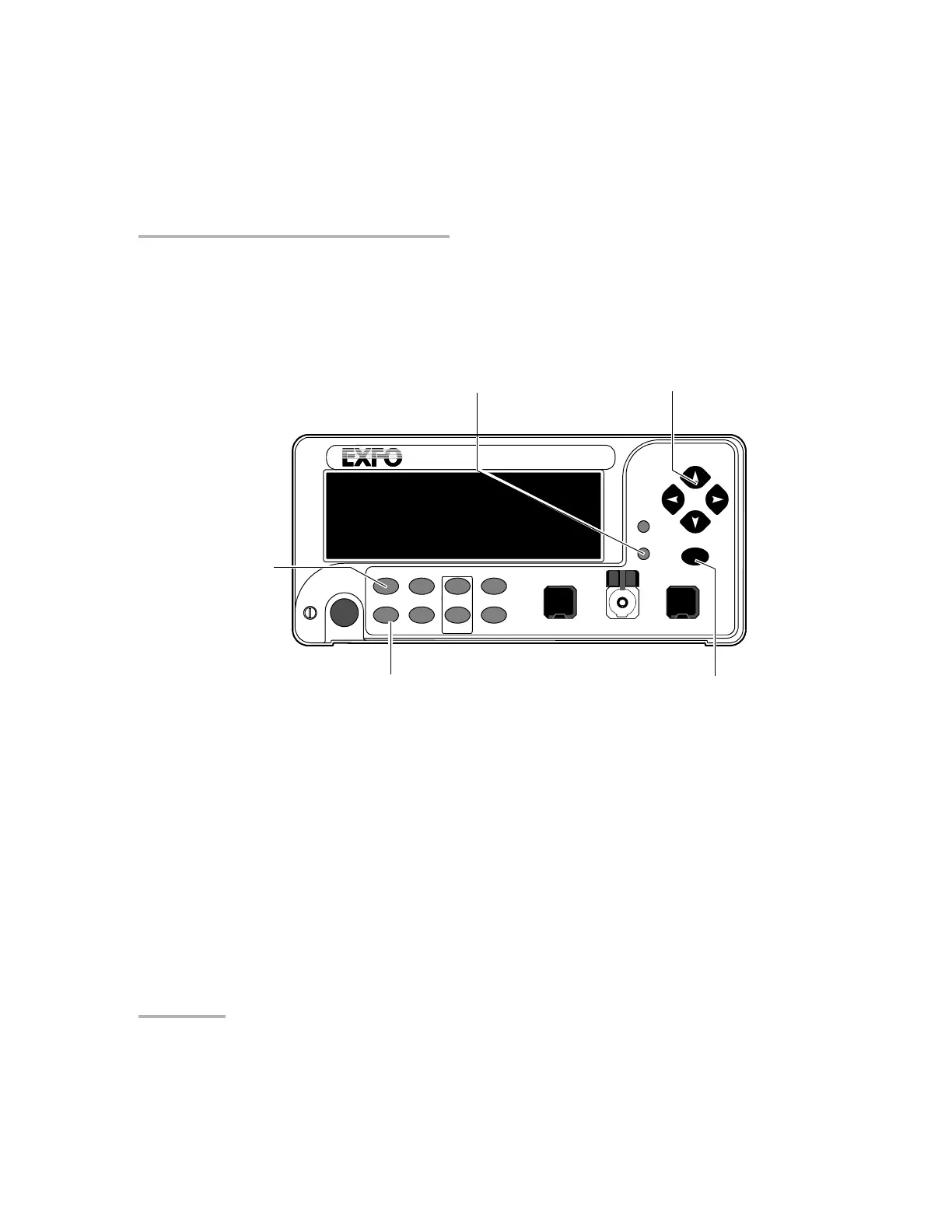

VARIABLE ATTENUATOR
FVA-3100
Offset
ENTER
Abs Up Shutter
Ref
λ
Down Attenuation
Program
Setup
Confirmation
button
Absolute mode access
Wavelength control
Arrow buttons for menu navigation
and parameter setting
Step
In Monitor Out
Setup menu access
Shutter
