ProductOverview
TorqueRequirements
BoltLocation
Torque
CutterHousingSpindle
Nut
140-145ft-lb
(190-197N-m)
BladeMountingBolt
(lubricatewithanti-seize)
55-60ft-lb(75-81N-m)
EngineDeck/MowerDeck
SupportMountBolts
30-35ft-lb(41-47N-m)
Anti-ScalpRollerNyloc
NutSee
Figure9
30-35ft-lb(41-47N-m)
Anti-ScalpRollerWhizlock
NutSeeFigure9
30-35ft-lb(41-47N-m)
EngineMountingBolts
17-23ft-lb(23-31N-m)
WheelLugNuts
90-95ft-lb(122-129N-m)
WheelHubSlottedNuts140-155ft-lb
(190-210N-m)
WheelMotorMounting
Bolts
30-35ft-lb(41-47N-m)
MuferGuardMounting
Bolts
30-35ft-lb(41-47N-m)

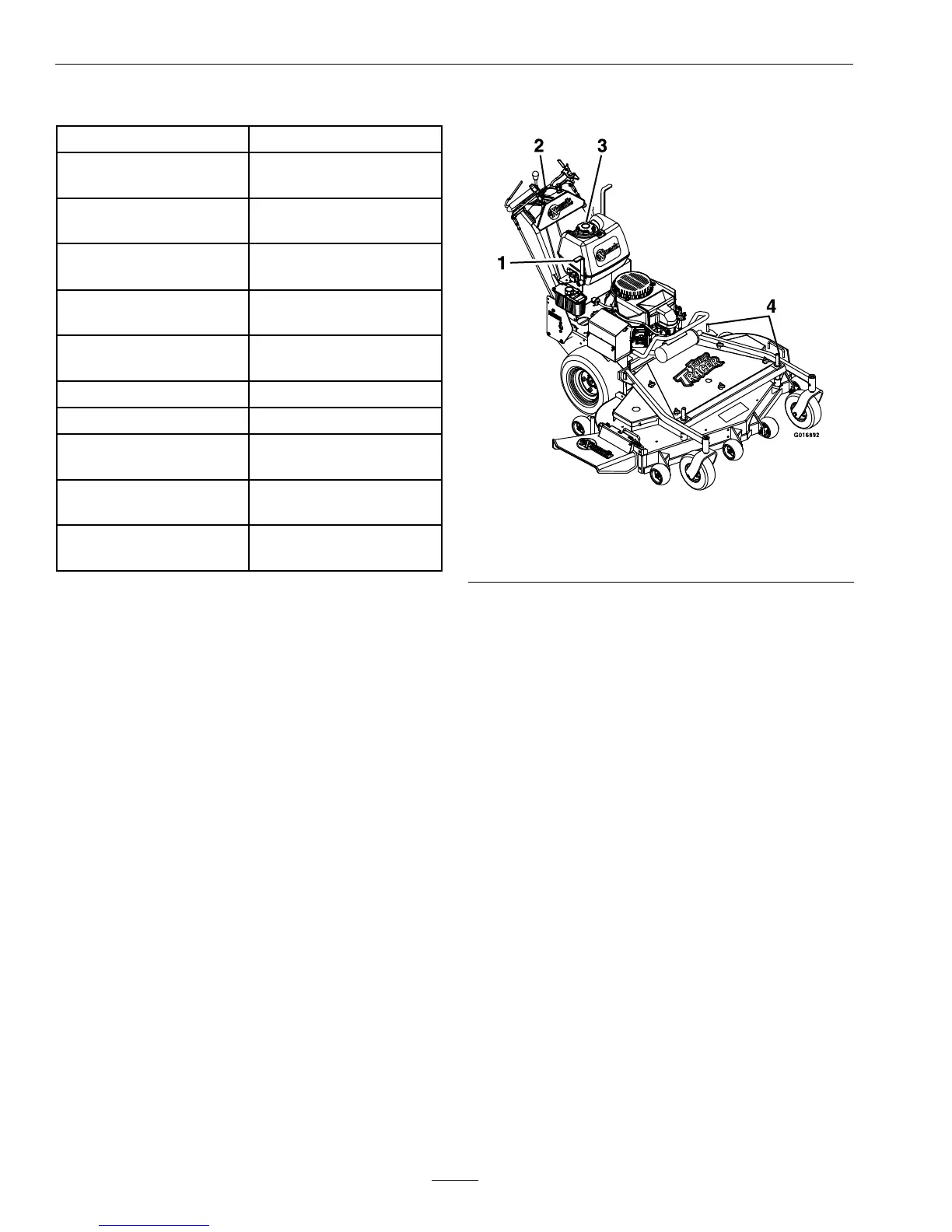

ProductOverview
Figure3
1.ParkBrakeLever
3.FuelCap
2.Controls4.Height-of-CutPins
16
