Exmark TURF TRACER S-SERIES User Manual

Maintenance

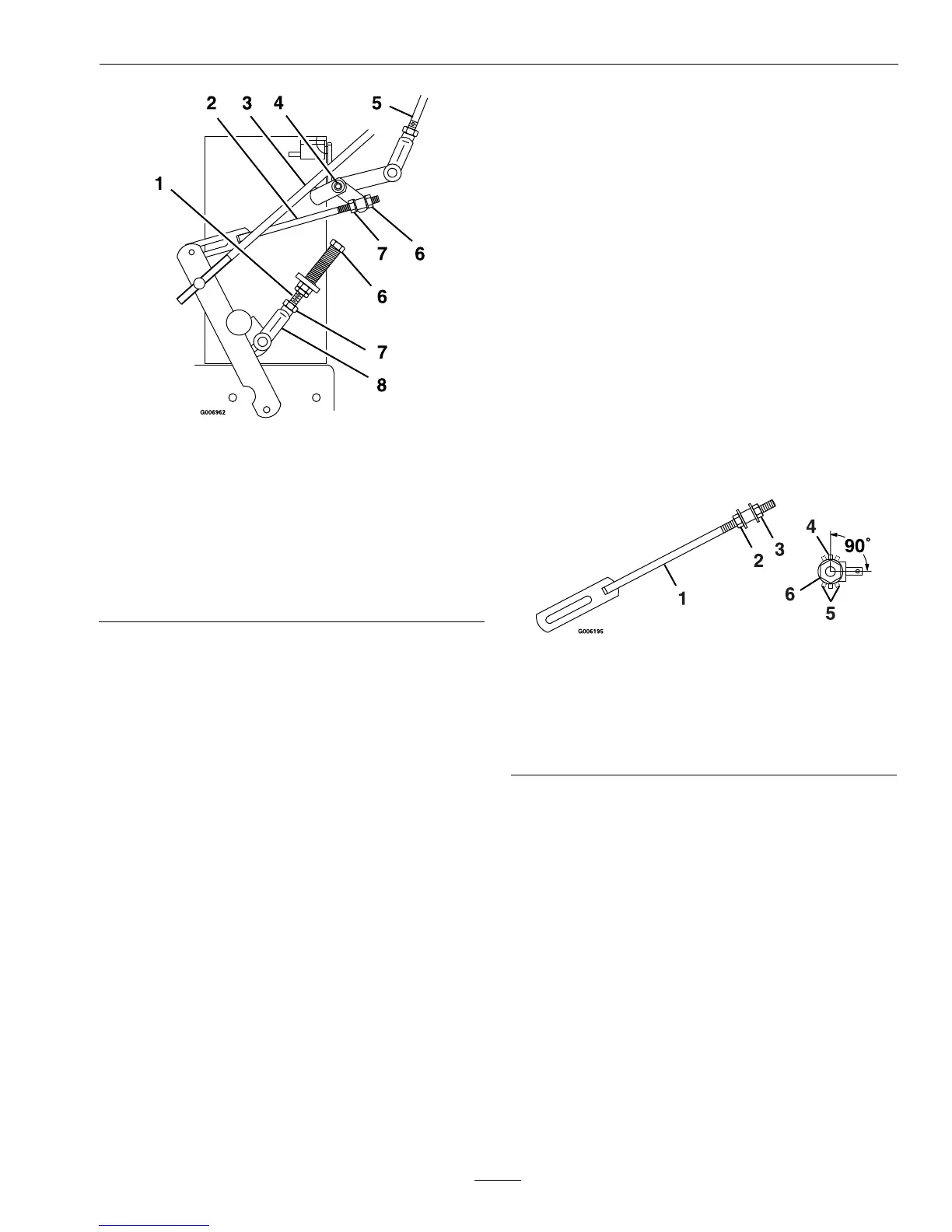

Figure17
ViewedfromLeftSideofUnit
1.NeutralControlLinkage5.SpeedControlLinkage
2.HydroControlLinkage
6.Adjusthere-rotateat
approximately1/4
turnincrementsand
re-check.
3.DriveLeverLinkage7.Loosennut
4.SpeedControlCrank
8.Yoke
4.Loosenthenutagainsttheneutralcontrol
linkageyokeasshowninFigure17.
5.Adjusttheneutralcontrollinkageuntil
therespectivedrivewheelstopswhenthe
leverispulledagainsttheneutralspring
(neutralposition).Turntheadjustingbolt
approximately1/4turnclockwiseifthe
wheelisturninginreverseorturnthebolt
approximately1/4turncounterclockwiseif
thewheelisturningforward.Releasethe
drivelevertotheforwarddrivepositionand
squeezebackintotheneutralposition.Check
toseeifthewheelstops.Ifnot,repeatthe
aboveadjustmentprocedure.
6.Makethisadjustmentonbothsides.
7.Afteradjustmentsaremadeandthewheels
stopwhenthedriveleversareintheneutral
position,tightenthenutsagainsttheyokes.
•AdjustHydroControlLinkages:
1.Placethespeedcontrolleverinthe“neutral”
position.Thisadjustmentisagainmadewith
rearofmachineonjackstandsandengine
runningatfullthrottle.OPCleverswillhave
tobehelddownandtheparkbrakemustbe
disengagedwheneverspeedcontrolleversare
movedoutoftheneutralposition.
Note:Theneutrallocklatchesshouldbe
“unlocked”andintheforwardposition.
2.Loosenthefrontnutonlefthydrocontrol
linkageasshowninFigure17.Turntherear
controllinkageadjustingnutcounterclockwise
untilwheelrotatesforward.Turntherearnut
ofleftcontrollinkageclockwise1/4ofaturn
atatime,stoppingtomovethespeedcontrol
forwardandbacktoneutral,untilleftwheel
stopsrotatingforward.
Turntherearnutanadditional1/2turnand
tightenthefrontnutmakingsurenottoput
abindonthelinkage.Makesureatpartof
linkageisperpendiculartopinpartofswivel
(see
Figure18).
Figure18
1.LeftHydroControlLink
(leftsideshown)
4.Linkageisperpendicular
topin(correctposition)
2.Frontnut5.Linkageinincorrect
position
3.Rearnut
6.Endviewofswivel
Afteradjustingthelefthydrocontrollinkage,
movethespeedcontrollevertothemid-speed
positionandthenbacktotheneutralposition.
Rechecktheleftdrivewheelrotationtoseeif
furtheradjustmentisnecessary-besurethe
speedcontrolleverisintheneutralposition.
Important:Ifinconsistentneutraloccurs,
checktobesurebothspringsareproperly
tightenedonthespeedcontrolleverunder
theconsole–especiallytherearpivot
spring.
Repeataboveadjustmentsifnecessary.
3.Placethespeedcontrolleverinneutral.Adjust
therightsidelinkagebyturningthequicktrack
knobcounterclockwiseuntilthetirebeginsto
rotateforward.Begintoretightentheknob
35
