INSTALLATION
10

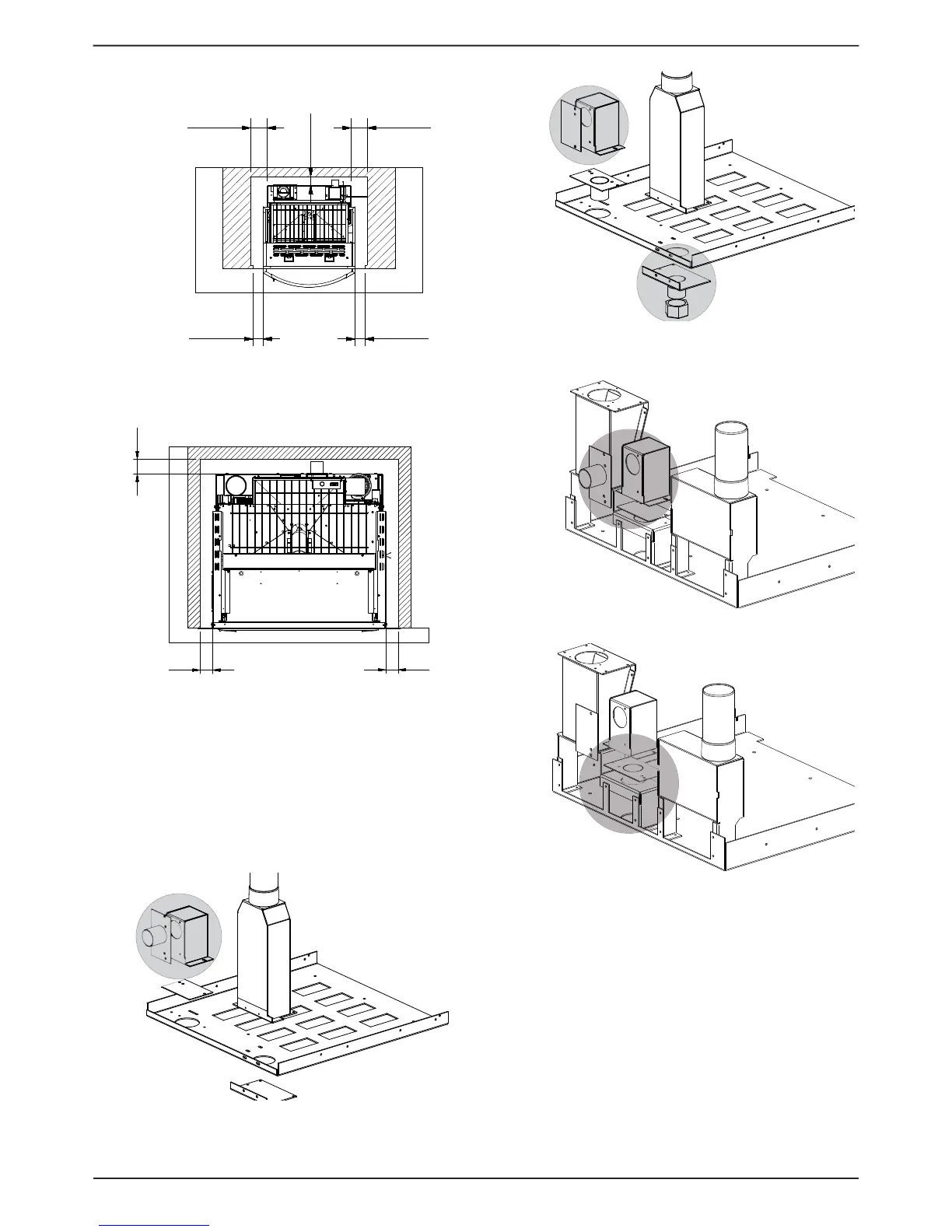

COMFORT MAXI
85 mm 85 mm
60 mm
50 mm 50 mm
gure 15
COMFORT PLUS /MINI/CRYSTAL
35 mm
35 mm
60 mm
gure 16
AIR INLETS5.2.
Regarding the air intake box, it is possible to apply the intake pipe
above the base or below depending on requirements.
These operations must be carried out by a quali ed technician
and/or the manufacturer's technical after-sales assistance.
COMFORT MAXI - MINI
gure 17
gure 18
COMFORT PLUS
gure 19
gure 20
AIR CIRCULATION PIPES5.3.
It is necessary to create air recirculation inside the structure that
covers the insert for correct functioning. This prevents the appliance
from over-heating.
To guarantee this, just realise one or more openings in the lower
part and in the upper part of the covering.
The following measurements must be respected:
Lower part (cold air inlet) total minimum surface
including openings of 600 cm.
The openings in the lower part must be realised below the
rest bottom.
Upper part (hot air outlet) total minimum surface
