PRODUCT FUNCTIONALITY
14

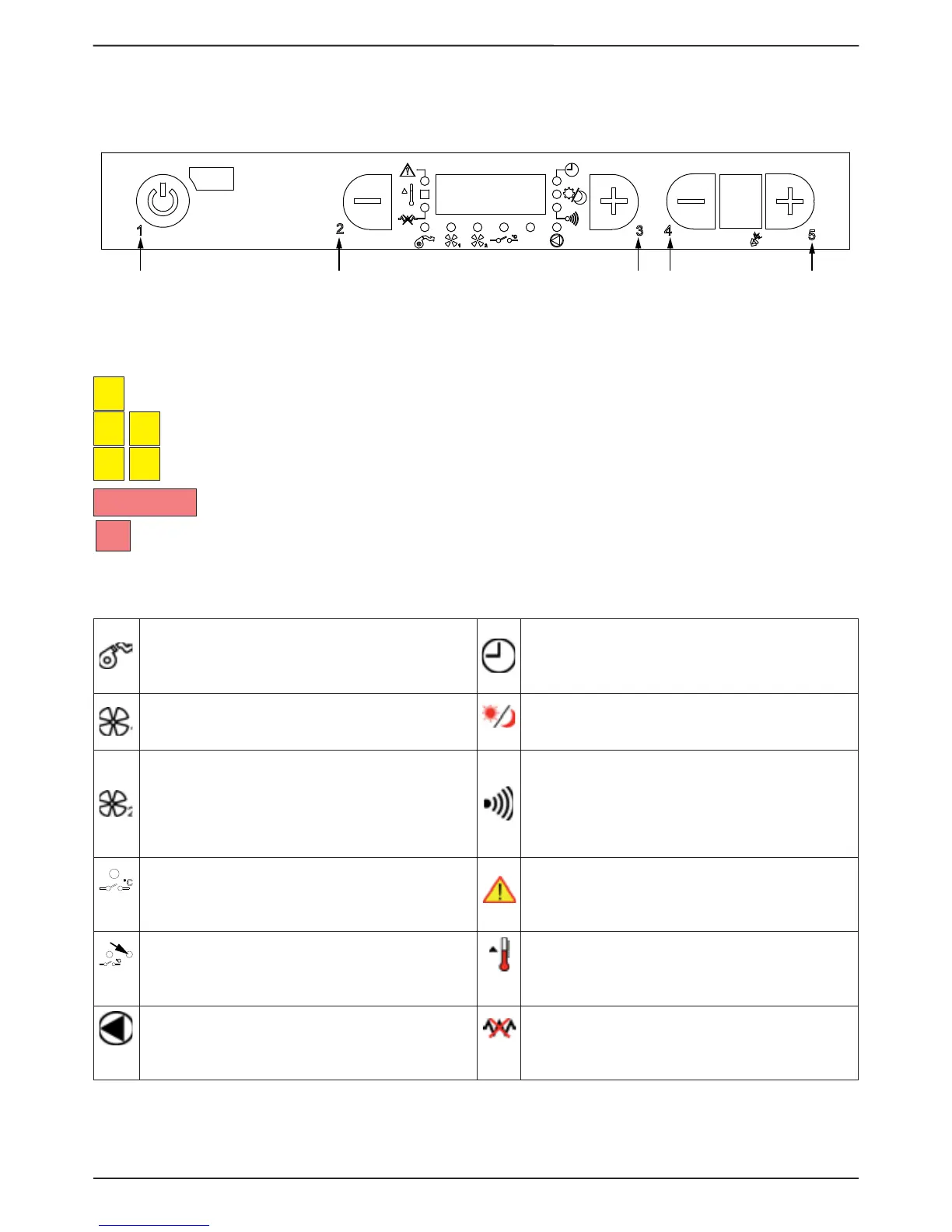

PRODUCT FUNCTIONALITY8.
CONTROL BOARD8.1.
D1 D2
P1
P2 P3P4 P5
gure 39
P1
ON/OFF BUTTON
P2
P3
SETTING ROOM TEMPERATURE
P4
P5
REGULATION OF FUNCTIONING POWER
D1
DISPLAY OF THE VARIOUS TEXT MESSAGES
D2
DISPLAY OF THE POWER
DISPLAY ICONS KEY8.2.
It indicates functioning of the fumes motor.
O = fumes motor not working
On = fumes motor working
Flashing = breakdown
It indicates weekly programming functioning
Indicator on = Weekly programming on
Indicator o = Weekly programming o
It indicates functioning of the tangential fan
O = not working
On = working
It indicates the stby function
O = Stby deactivated
On = Stby activated
It indicates functioning of the ducting fan
O = not working/On = working
Flashing = motor at minimum (input in additional heat board
open)
It indicates the communication between remote control and
stove. Every time a key is pressed on the remote control, the
indicator must switch-on. If the indicator is always on, it means
that the communication between remote control and stove is
blocked.*
Additional external thermostat input status
O = open contact
On = closed contact
Indicates the presence of an alarm.
On: indicates the presence of an alarm
O : indicates the absence of alarms
Flashing: indicates the deactivation of the depression sensor.
Additional thermostat input status for ducting motor control (in
the models envisioned)
O = open contact
On = closed contact
It indicates the room T°. status
On = Room T° lower than desired set
O =room T°higher that set-point set
Feed box probe
O = normal functioning
Flashing = anomaly
Ign-plug
O = ign-plug active
On = ign-plug deactivated
Flashing = Ignition phase
