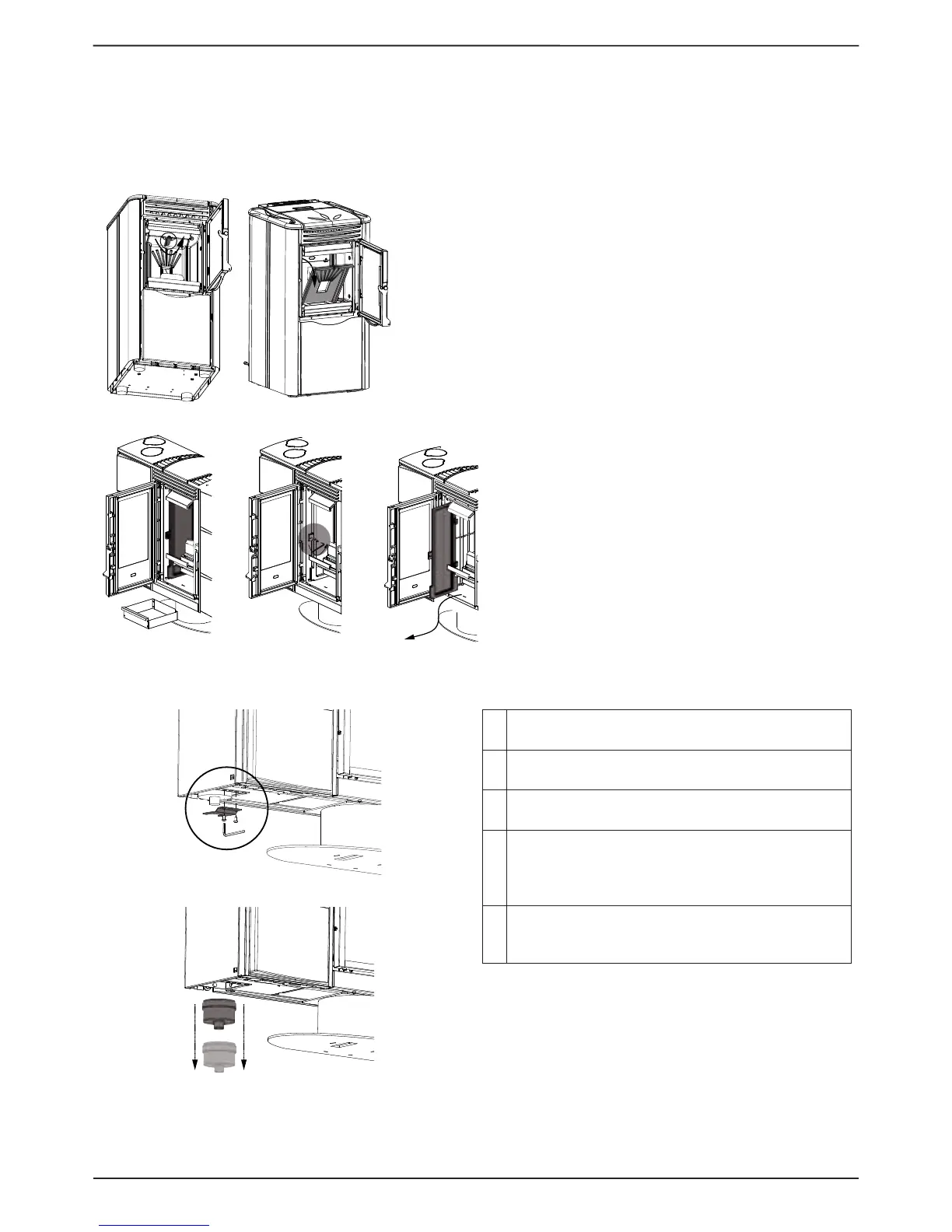

CLEANING OF THE “T” FITTING FOR ELISIR
24
MONTHLY
Cleaning the heat exchanger: the heat exchangers chamber must be cleaned every month as the soot deposited on the rear of the cast
iron hearth wall blocks the regular ow of fumes. It is therefore recommended to remove the ash in the combustion chamber at least
once a week using a suitable suction device.
The lever must be turned upwards to remove the cast iron part
gura 53
gura 54
CLEANING OF THE “T” FITTING FOR ELISIR14.
A
B
C
gura 55
1 Loosen the two screws A and B using the Allen wrench
number 3
2 Remove the coloured bracket in the drawing and indicated
with the letter C
3
Slide the inspection cap downwards until it is removed
completely and clean everything.
4
When cleaning has been completed, re-insert the cap,
making sure that the pipe gasket is not worn or out
of the seat and that the “T” tting pipe is completely
inserted in its housing.
5
Fix the previously-removed bracket using the 2 screws
Nota bene: if the bracket cannot be xed, it means that the
“T” tting pipe has not been inserted correctly.
gura 56
