Air circulation ducts
It is necessary to create air intakes on the top of the
fireplace for a correct operation.
These can be made in the sides of the hood or in
the front.
It is important that following measurements are
respected:
Air intakes made in both sides of the fireplace
Minimum measurement requested 200 cm2 x side
Air intake made in the front of the fireplace
Minimum measurement requested 400 cm2 x side
The position of the air intakes is shown in Fig. 17
Also in the bottom part of the chimney an air intake
must be created ( for the min. measures see Fig.17)

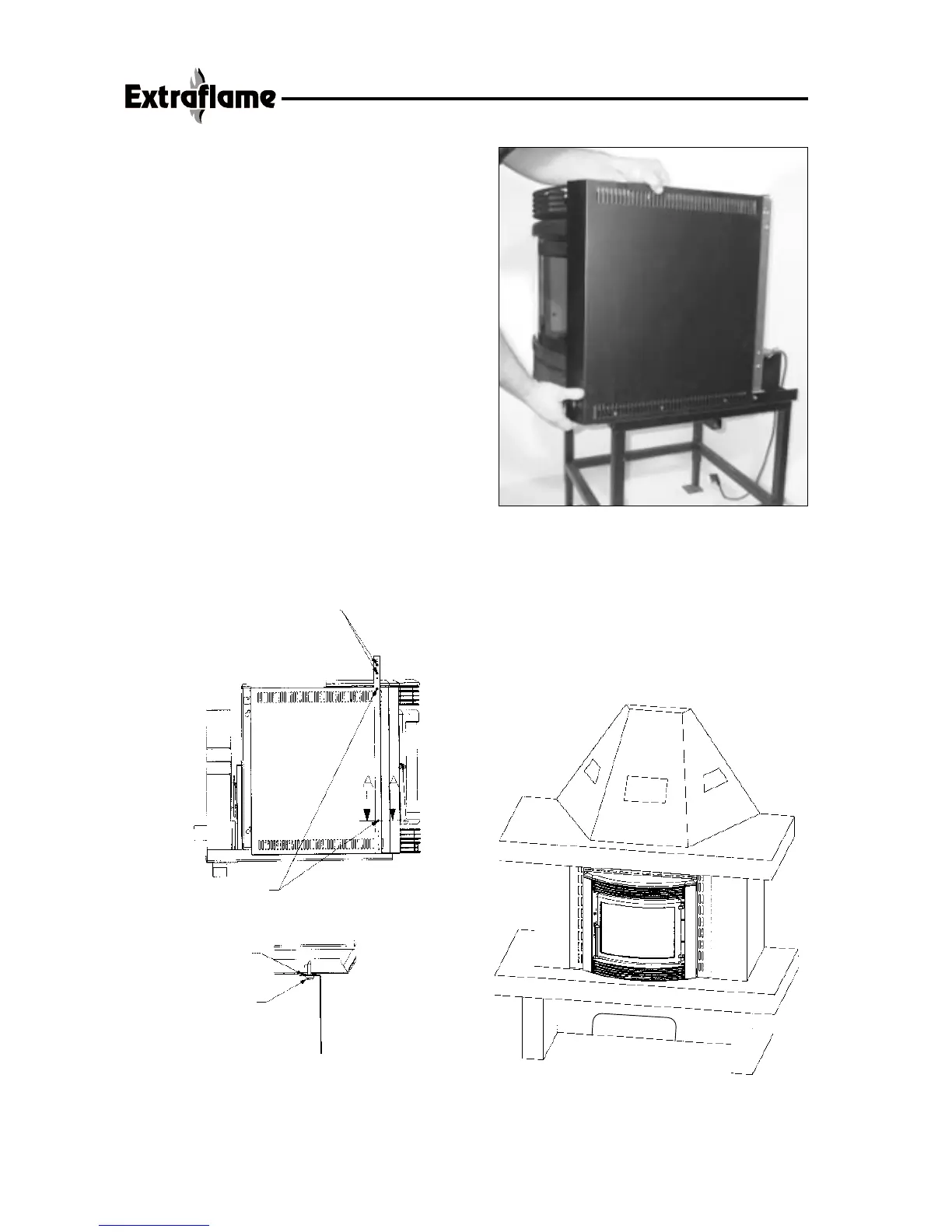

fig. 14
fig. 15 fig. 16
FIXING SIDE SURROUNDS WITH
TOP SURROUND BY MEANS OF
TWO SCREWS PER SIDE
USE THESE HOLES FOR
FIXING THE SIDE
SURROUNDS ONTO
THE SIDES
WASHER
SCREW
SECT A-A
