3. Align the DIN bracket with the DIN rail and attach the port extender:

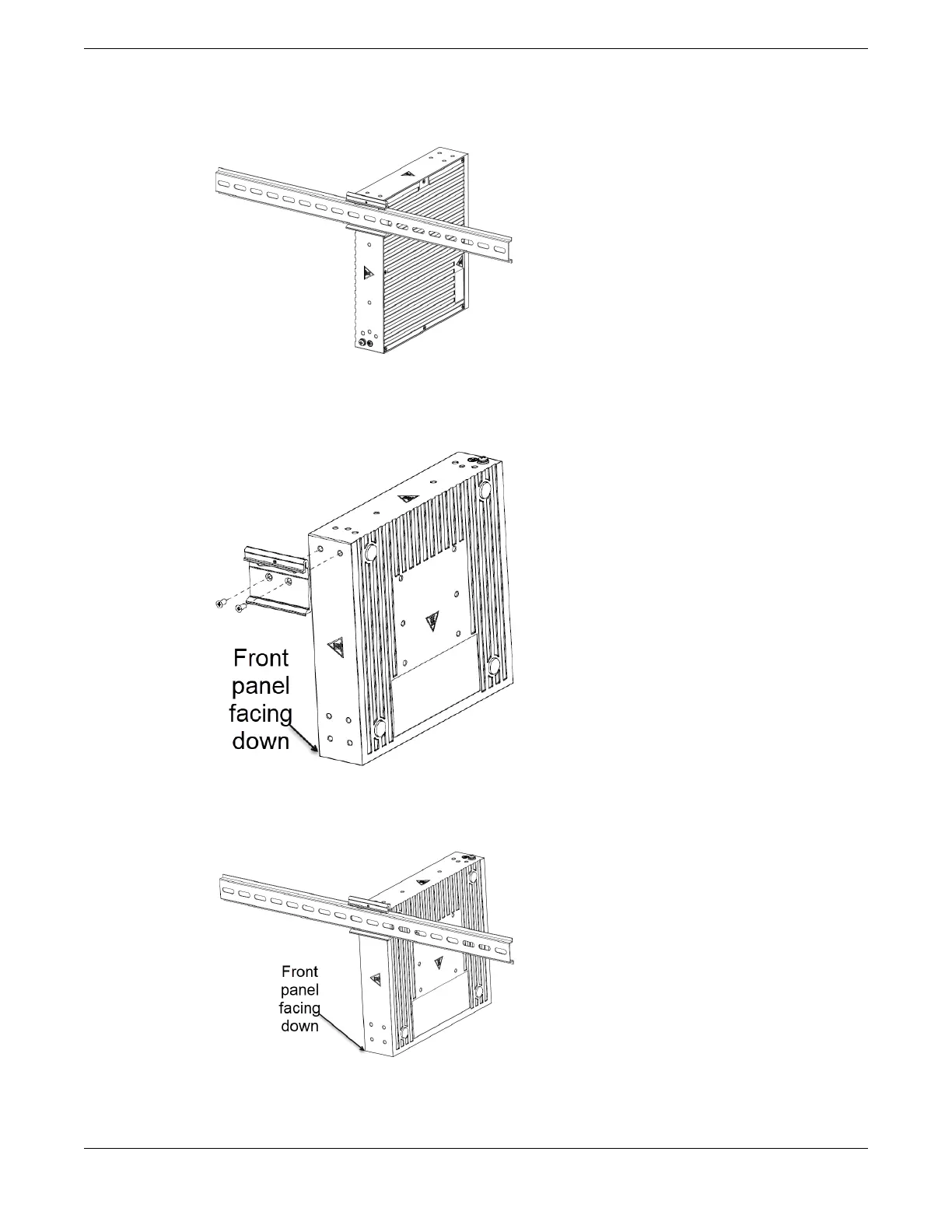

Figure 74: DIN Rail Mounting Option 1: Secure the Port Extender
4. For option 2, attach the DIN mounting bracket to the side panel of the port extender:
Figure 75: Din Rail Mounting Option 2: Attach the Bracket
5. Align the DIN bracket with the DIN rail and attach the port extender:
Figure 76: DIN Rail Mounting Option 2: Secure the Port Extender
Installing a V300-8P-2T-W Model in a DIN Rail Mount
Installing Expansion Modules
