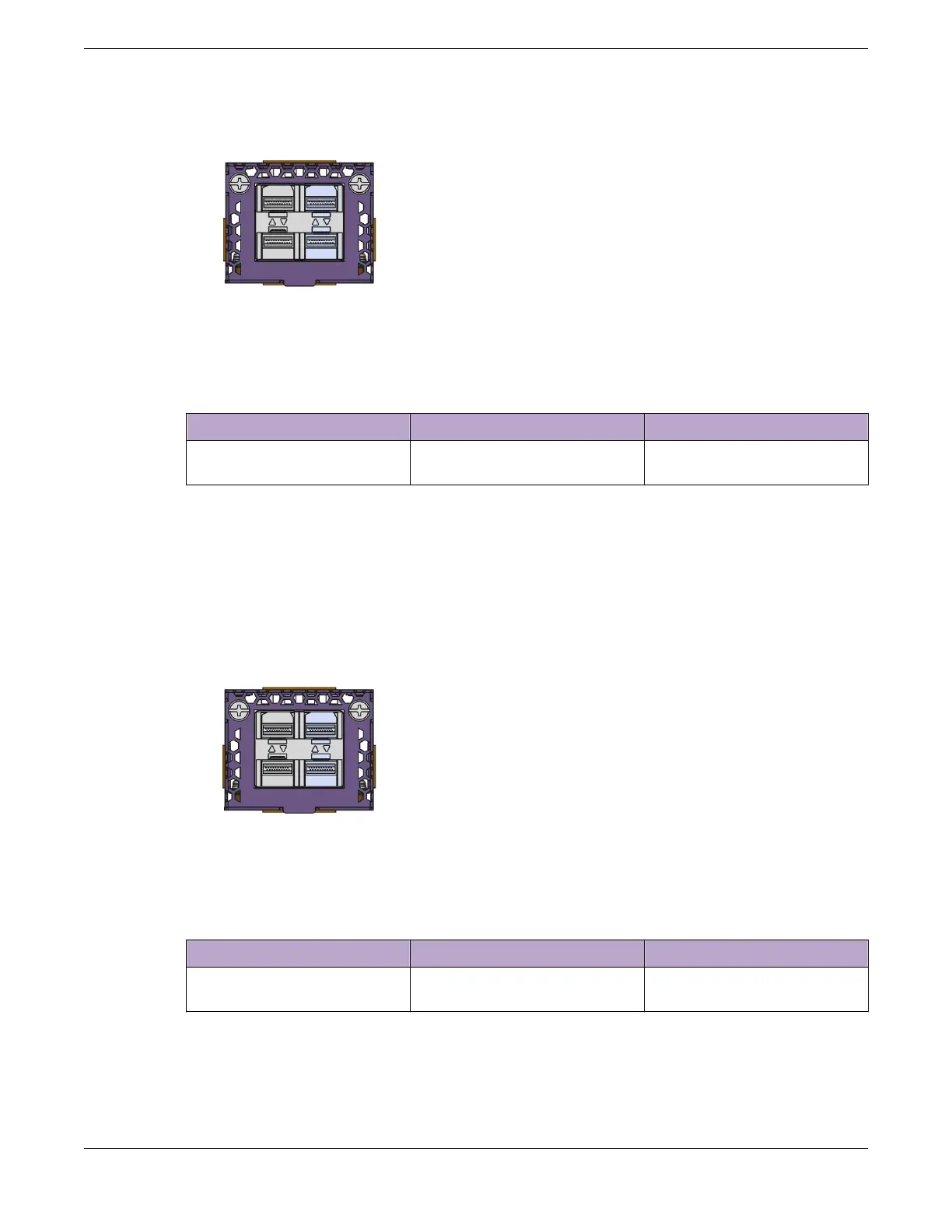

Figure 28: 5520-VIM-4X Versatile Interface Module
Table 12: Port Numbers for Ports on the 5520-VIM-4X Module
5520 Series 24-port models 5520 Series 48-port models VOSS (all models)
33-36 (EXOS) 57-60 on 48-port models (EXOS) VIM slot number=2
Interface names=2/1-2/4
5520-VIM-4XE Versatile Interface Module
The 5520-VIM-4XE versatile interface module provides four 10-GbE (SFP+) ports, MACsec capable.
For information about the supported optical modules, refer to the most recent version of the Extreme
Optics website.
Figure 29: 5520-VIM-4XE Versatile Interface Module
Table 13: Port Numbers for Ports on the 5520-VIM-4XE Module
5520 Series 24-port models 5520 Series 48-port models VOSS (all models)
33-36 (EXOS) 57-60 on 48-port models (EXOS) VIM slot number=2
Interface names=2/1-2/4
Expansion Modules 5520-VIM-4XE Versatile Interface Module
ExtremeSwitching 5520 Series Hardware Installation Guide 35
