2. For non-PoE models, after attaching short brackets and PSU bracket to the V300, attach the PSU(s)
to the PSU mounting bracket using two cable ties:

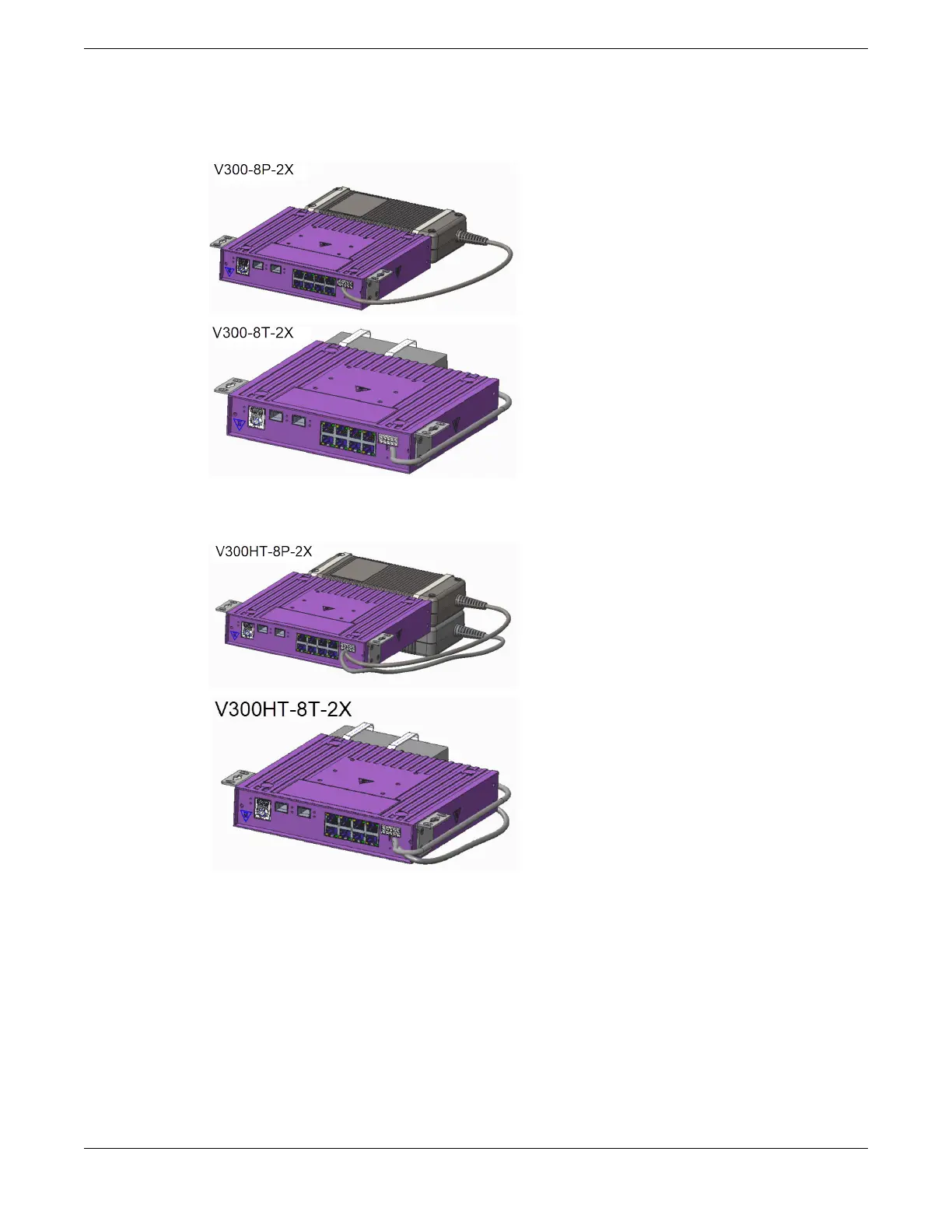

Figure 58: V300-8P/8T-2X Under Table Mounting with PSU
Figure 59: V300HT-8P/8T-2X Under Table Mounting with PSU
3. Secure the port extender to to the underside of the table using the provided 4 wood screws and 4
anchors.
4. When power is connected, verify that the SYS LED on the port extender turns green.
Install a V300 Virtual Port Extender in a VESA Mount
The following tools and materials are required to install a V300 Virtual Port Extender with a VESA
mount:
• ESD-preventive wrist strap
Installing Expansion Modules
Install a V300 Virtual Port Extender in a VESA Mount
ExtremeSwitching 5520 Series Hardware Installation Guide 93
