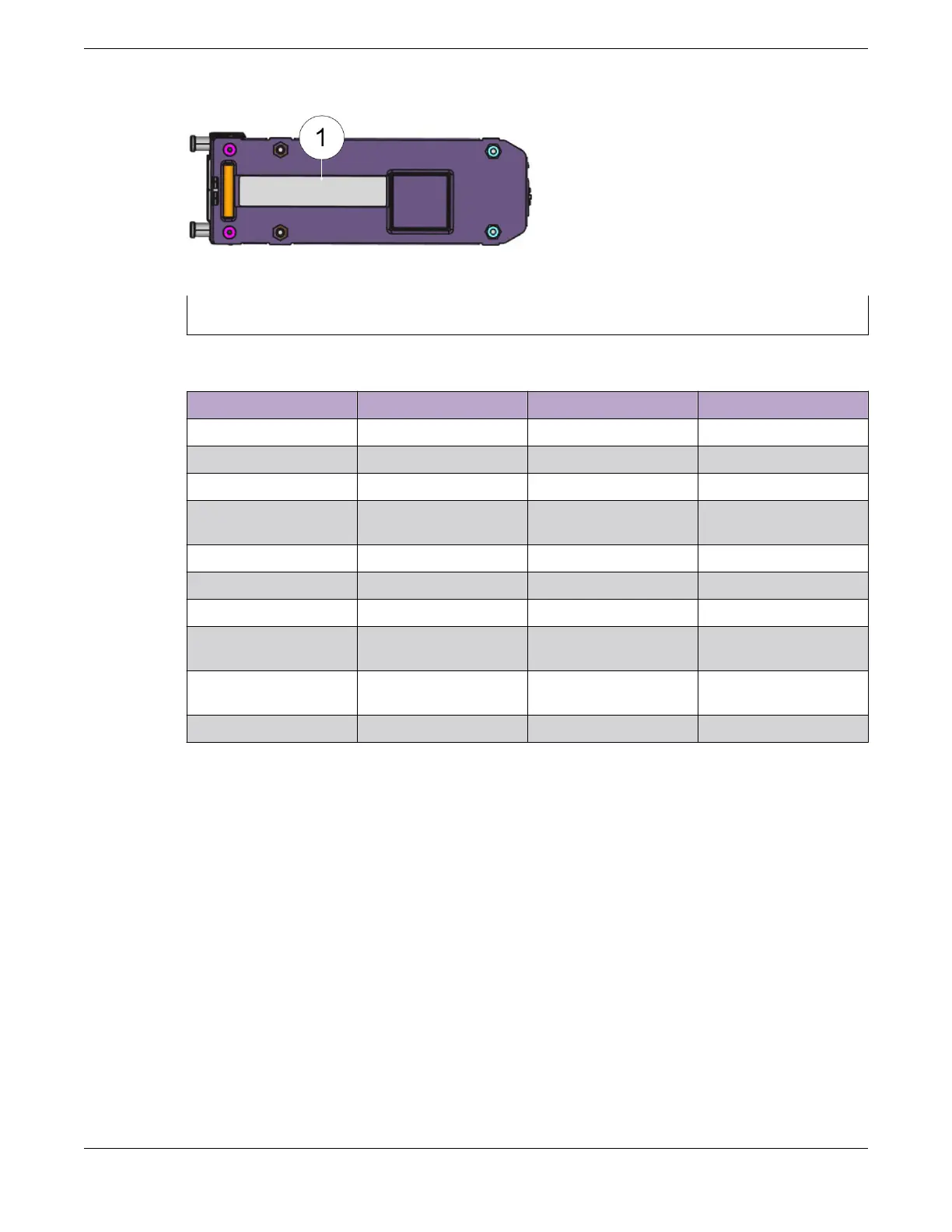

Figure 27: 5520-VIM Label
1 = 5520-VIM label
Table 11: 5520-VIM Matrix
5520-VIM-4X 5520-VIM-4XE 5520-VIM-4YE
Usable ports 4 4 4
Operational speeds 1Gbps & 10Gbps 1Gbps & 10Gbps 10Gbps & 25Gbps
PHY present No Yes Yes
1000BASE-T &
10GBASE-T
10GBASE-T only Both 10GBASE-T only
Mixed speeds 1Gbps & 10Gbps 1Gbps & 10Gbps Not supported
1
1G Auto-negotiation Disabled Enabled
10G Auto-negotiation Disabled Disabled Disabled
25G Auto-negotiation Enabled for DAC
Disabled for Fiber
FEC Not supported Not supported Auto-FEC enabled for
DAC and Fiber
2
MACsec Not supported 128/256bit 128/256bit
1
- In VOSS, you must set vim-speed to 10G or 25G for 5520-VIM-4YE. The default is 25G.
1
- In EXOS, use the configure ports partition command with 4x25 or 4x10 on the
first VIM
port.
2
- FEC is enabled by default only with autonegotiation set to ON.
See Versatile Interface Modules (VIM) Port LEDs on page 126 for VIM LED details.
5520-VIM-4X Versatile Interface Module
The 5520-VIM-4X versatile interface module provides four 10-GbE (SFP+) ports.
For information about the supported optical modules, refer to the most recent version of the Extreme
Optics website.
5520-VIM-4X Versatile Interface Module
Expansion Modules
34 ExtremeSwitching 5520 Series Hardware Installation Guide
