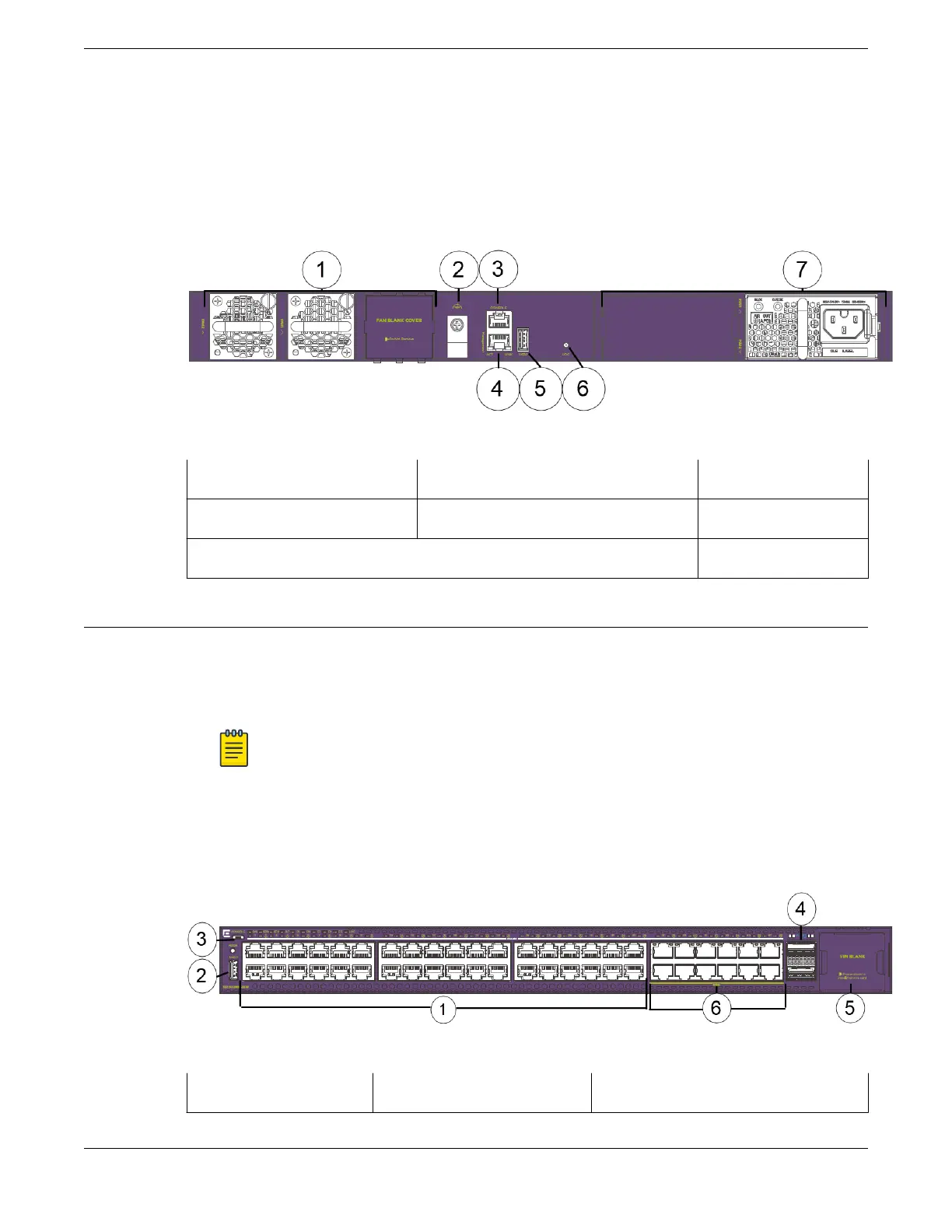

The rear panel of the switch includes:
• 2 fan modules
• Grounding lug
• 1 Type-A USB port
• 2 power supply slots
Figure 6: 5520-24X Rear Panel
1 = Fan modules 3 = Serial console port 5 = USB 2 port
2 = Grounding lug 4 = OOB management port 6 = Locator LED
7 = Power supply slots
5520-12MW-36W Switch Features
The front panel of the 5520-12MW-36W switch includes:
• 12 100Mb/1/2.5/5Gb multi-rate MACsec capable ports
• 36 10/100/1000Mb full/half duplex MACsec capable ports with 802.3bt Type 4 PoE (90W)
Note
Half-duplex is not supported on these ports when operating at 1Gbps or higher.
• 1 VIM slot
• 1 Type-A USB port
• 1 Micro-B USB console port
• 2 Stacking/QSFP28 ports
Figure 7: 5520-12MW-36W Front Panel
1 = 10/100/1000Mb ports 3 = Micro-B USB console port 5 = VIM port (covered)
ExtremeSwitching 5520 Series Overview 5520-12MW-36W Switch Features
ExtremeSwitching 5520 Series Hardware Installation Guide 17
