Two short brackets attached to the extender by 4 wood screws and 4 anchors, provided in the
accessory kit.

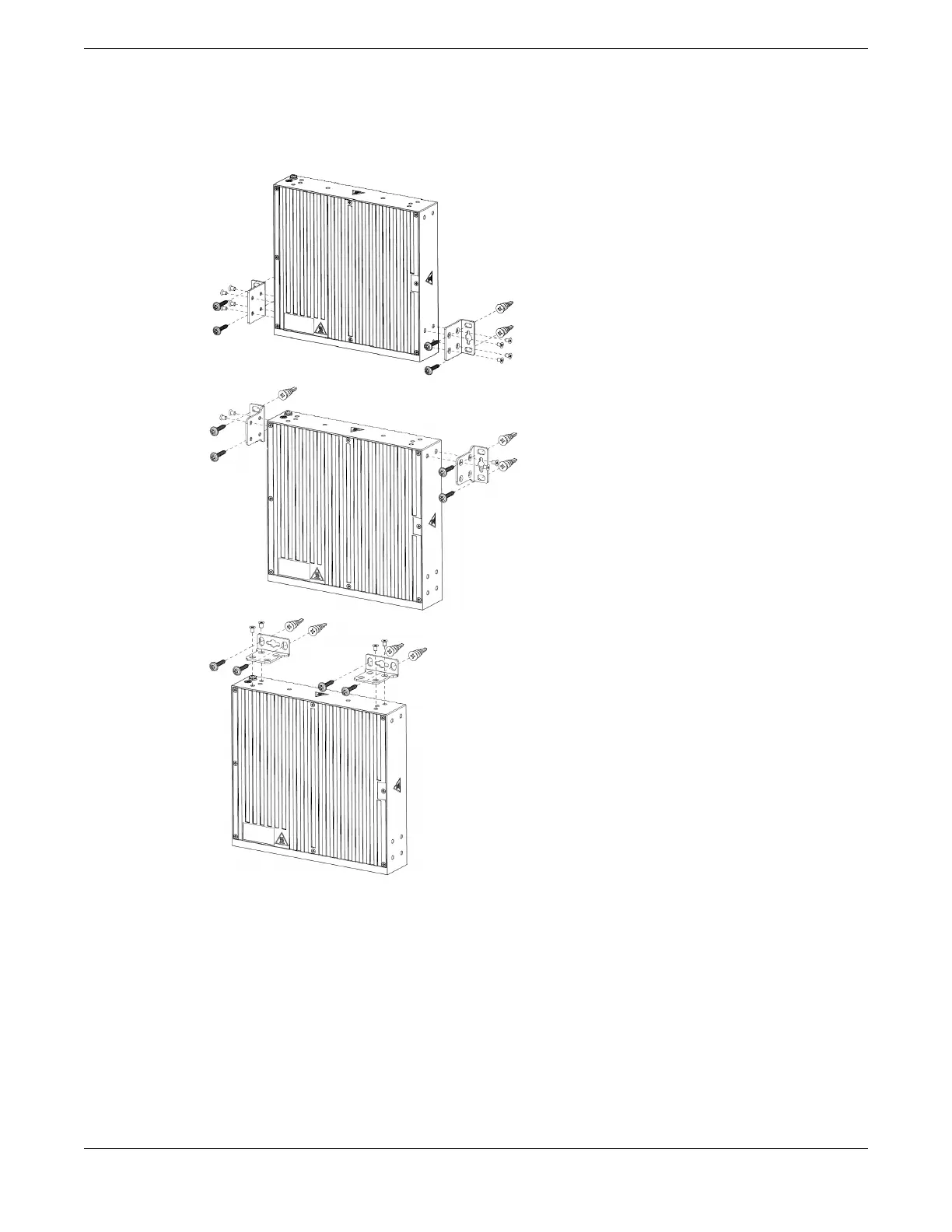

Figure 53: V300-8P-2T-W Wall Mounting
2. Use the optional short bracket as a template and mark the holes to be used. Extreme recommends
using 2 holes per short rack ear.
Installing Expansion Modules
Install a V300 Virtual Port Extender on a Wall
ExtremeSwitching 5520 Series Hardware Installation Guide 89
