5. After attaching the PSU bracket to the V300 using the provided screws, attach the PSU to the PSU
mounting brackets using two, four, or eight cable ties:

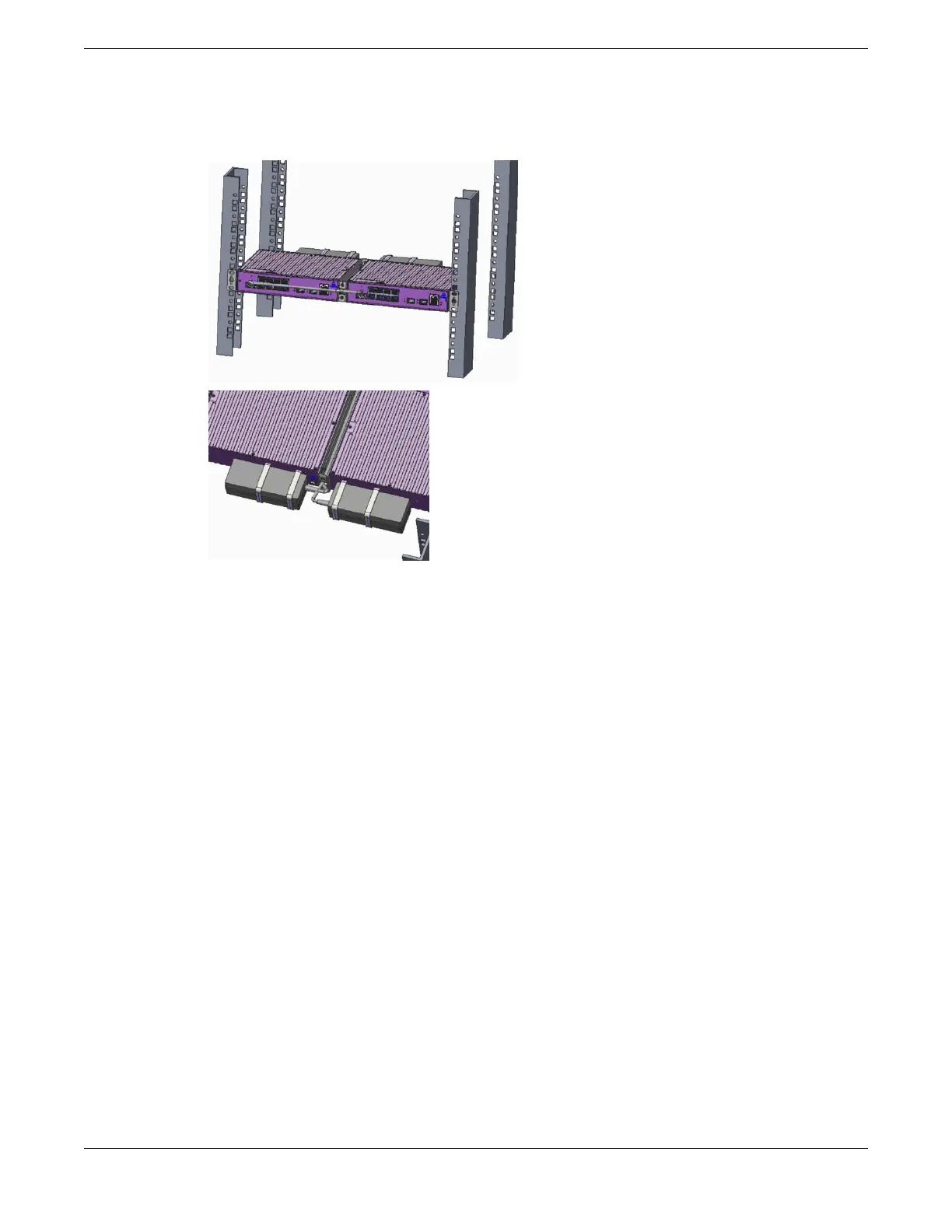

Figure 65: V300-8T-2X Dual Rack Mounting with PSU
Installing Expansion Modules
Install a V300 in a Dual Rack Mount
ExtremeSwitching 5520 Series Hardware Installation Guide 99
