Chapter 2 • Rear Panel Connections
Extron • Matrix 100 • User’s Manual
RGB Connections, with Right & Left Audio

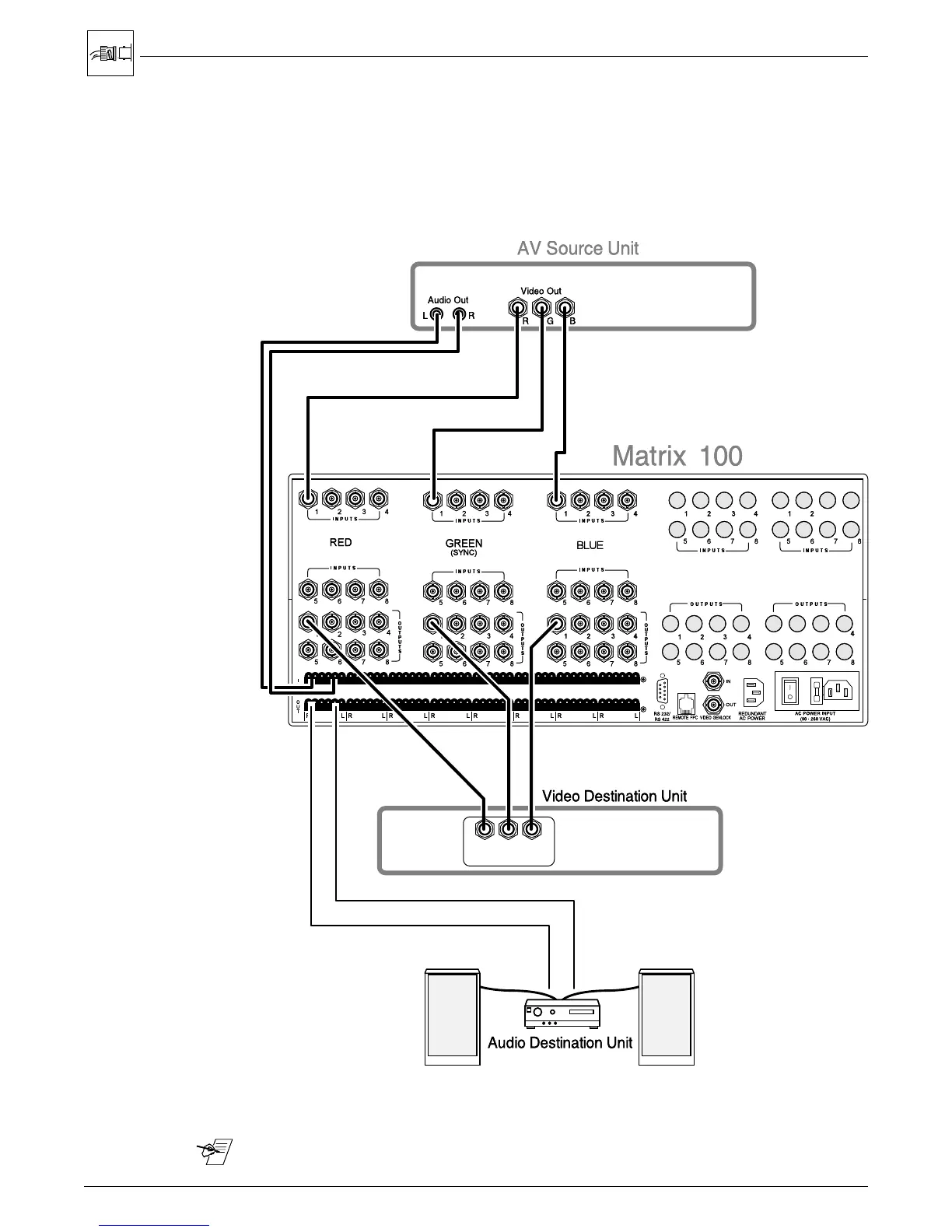

Figure 2-3 illustrates the Matrix 100 connections for switching RGB, or
component video. Choose an input number and connect each cable from the
source to the appropriate input on the Matrix 100. (The example shows
Input #1.) Likewise, choose an output number and connect each of the three
cables to a destination device.
Figure 2-3. An example of RGB, or Component Video
_______ Audio Connections may or may not be used. See page 2-9 for wiring.
