Extron • Matrix 100 • User’s Manual
Chapter 2 • Rear Panel Connections
2-8
12
3
43

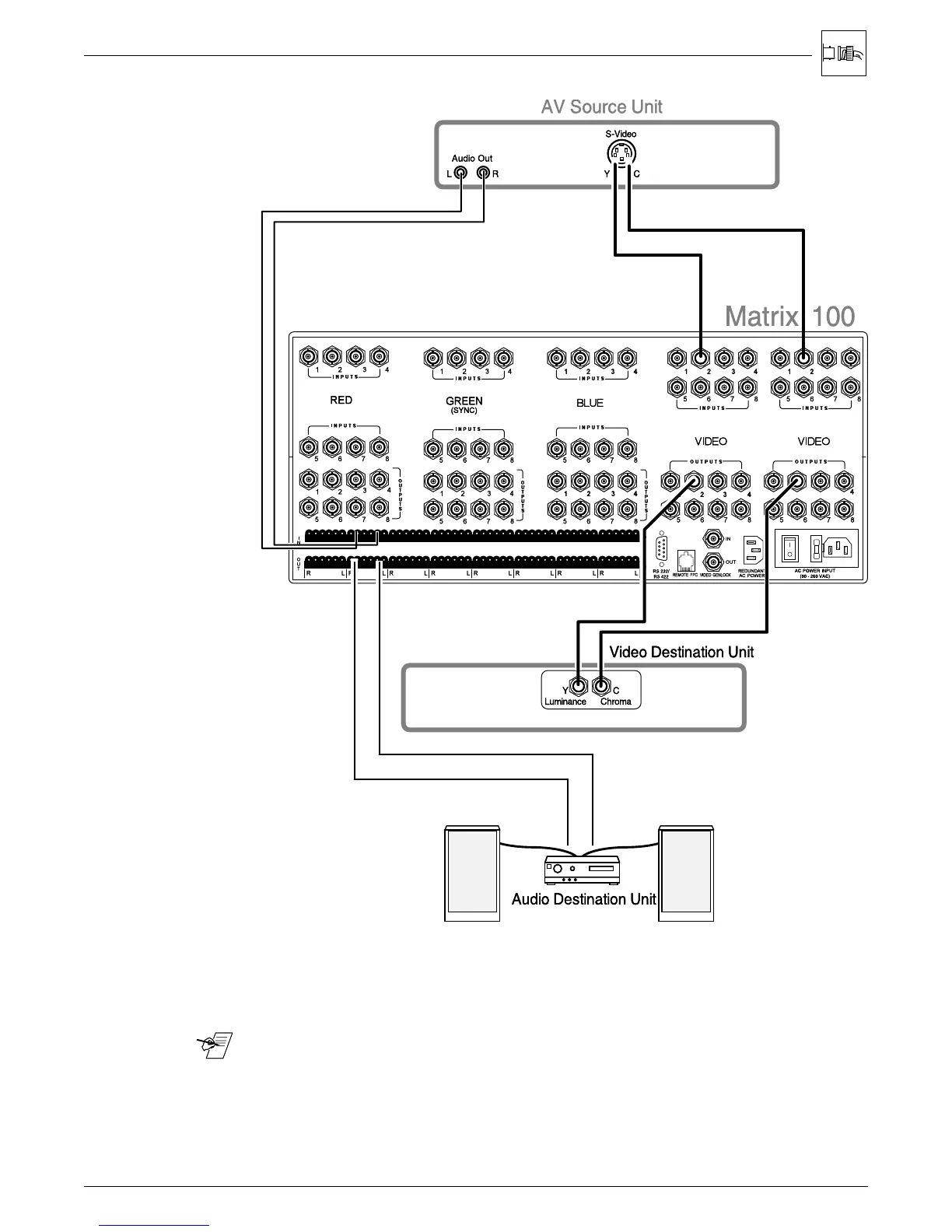

Figure 2-7. S-Video Connections with Right & Left Audio
_______ Audio Connections may or may not be used. See page 2-9 for wiring.
