Occupancy Sensor Configuration
TLS 520M, TLS 525M, TLP Pro 520M, TLS 725M, and TLS 1025M panels have digital I/O
connectors necessary to connect room occupancy sensors. Figure 64 shows how to wire
the sensors to the panels and configure the panels.
NOTES:
•
Figur
e 64 shows the Extron OCS 100C (ceiling) Occupancy Sensors. OCS 100W
(wall) sensors are wired identically. If you use other sensors, check the connections
and wiring in the documentation for your sensors.
•
Figur
e 64 is a configuration drawing only and does not show power to the sensors.

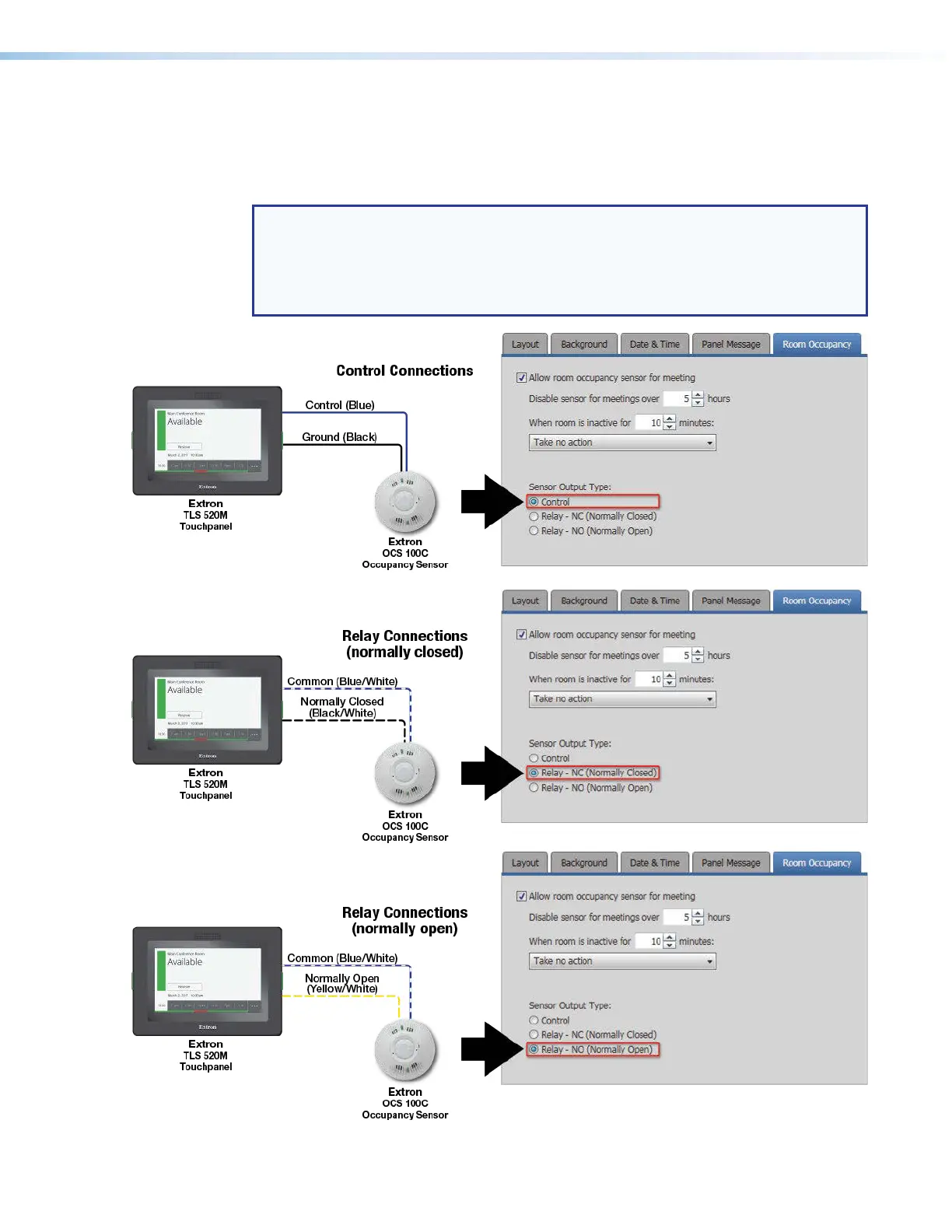

Figure 64. Occupancy Sensor Connection and Panel Configuration
