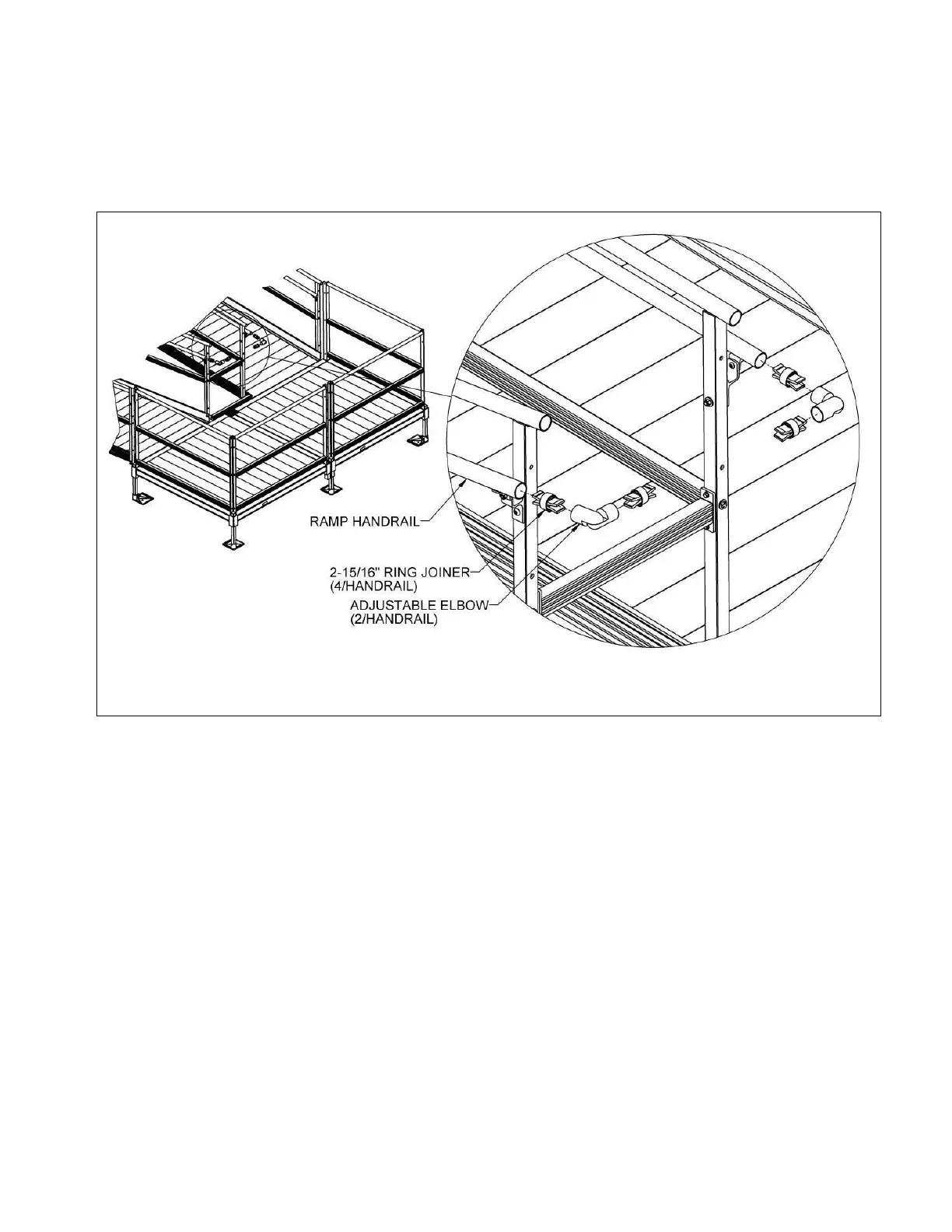

5.7.15. Connect the Ramp Handrails at the turn back by first inserting 2-15/16” ring joiners in
the open ends of the Ramp Handrails and adjustable elbows on the opposite end of
the ring joiner. Then, install another 2-15/16” ring joiner into the other ends of the
elbows. Orient joiner set screw toward the underside of ramp handrail (FIG. 5.26).
5.7.16. Referencing FIG. 5.26, loosen the elbow assembly screws and align the elbows to the
joiners as shown, then tighten elbow assembly screws and joiner set screws enough
to hold the components in position.
