EZ-ACCESS TITAN Assembly Manual

Page 57 of 77

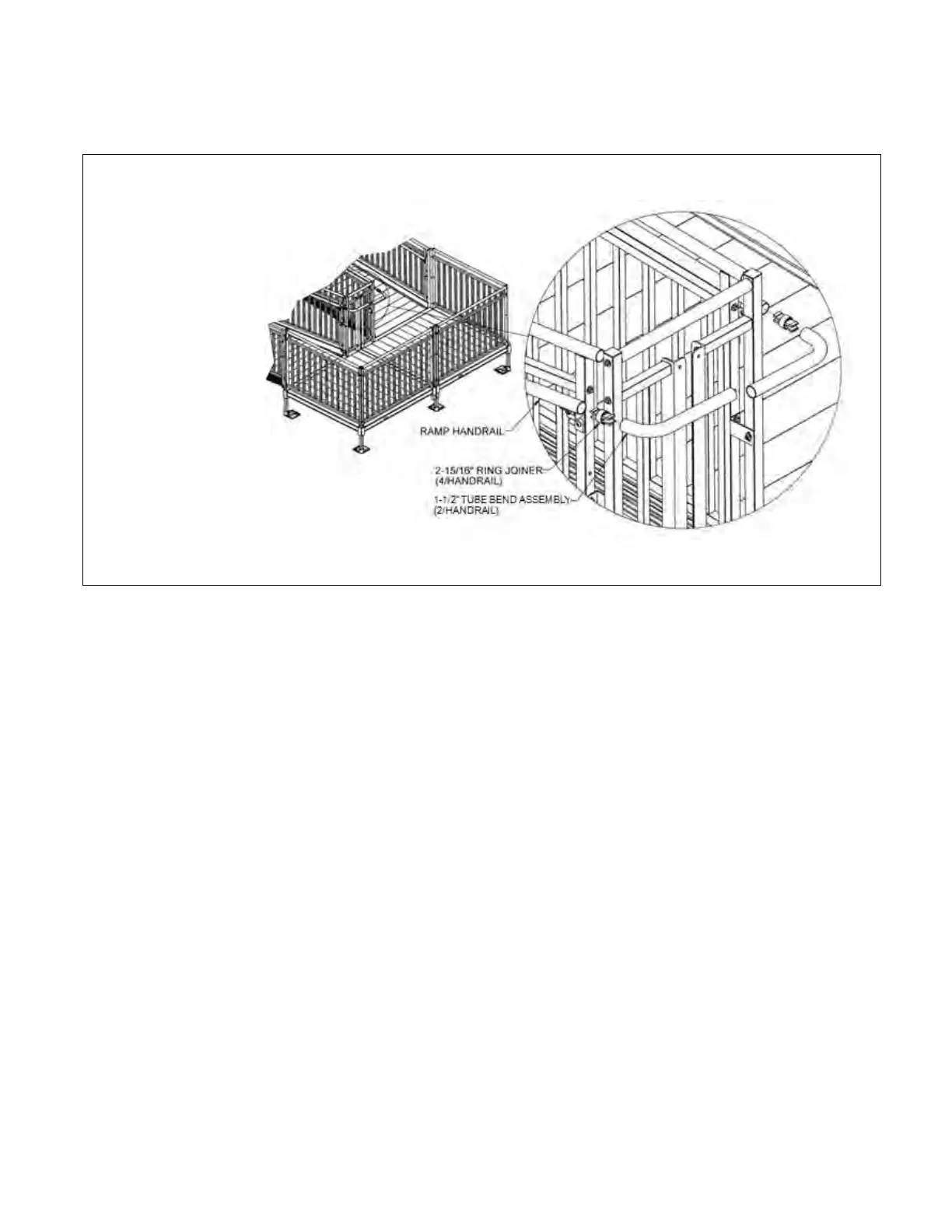

5.8.8. Connect the Ramp Handrails at the turn back by first inserting 2-15/16” ring joiners in the
open ends of the Ramp Handrails. Install a 1-1/2” diameter tube bend on the opposite
end of the joiner. Orient the joiner set screws toward the underside of the ramp
handrails (FIG. 5.33).
FIG. 5.33
