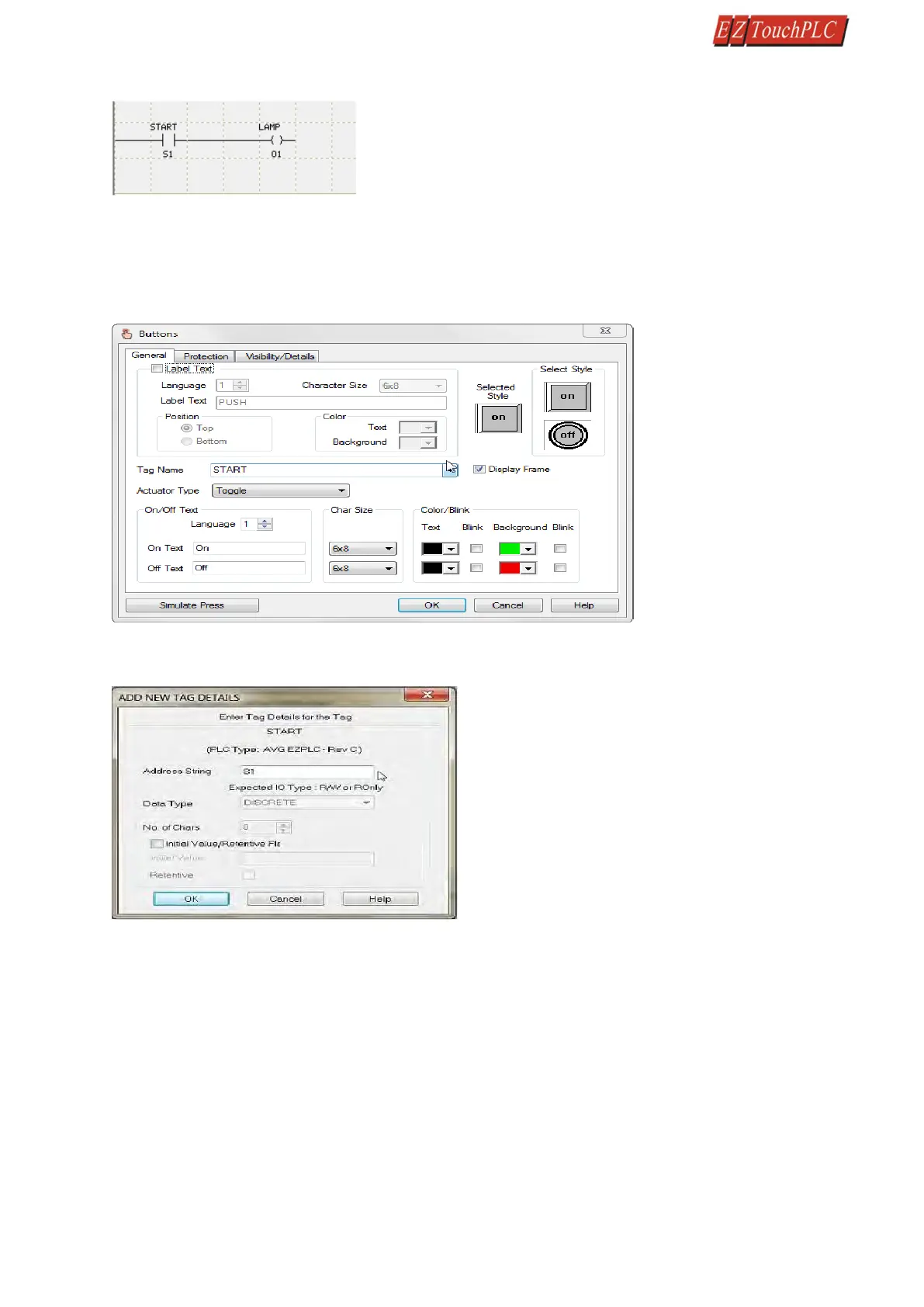

Click on Instructions > Line to wire “NO Contact” and “NO Coil.” Your screen should look like this when
finished:
Create a Panel Program: Click on “Panel” and "Scr 1" to create the Panel display screen as explained in the sample
below.
1. In the Main Menu, click on Objects > Buttons > Buttons. The screen below will appear. Enter START for
Tag Name. Click OK.
2. A dialog box might appear requesting the memory location. Enter "S1" in the field to the right of "Address
String." The Data Type should be marked as DISCRETE. Click OK.
