VIPRION Platform Maintenance
Platform Guide: VIPRION
®
5 - 3
To install a blade
1. Extend the eject levers, located on each side of the blade, into the
open position.
2. Carefully lift the blade and align the guide grooves on either side
with the corresponding grooves on the interior of the slot as shown
in Figure 5.4.

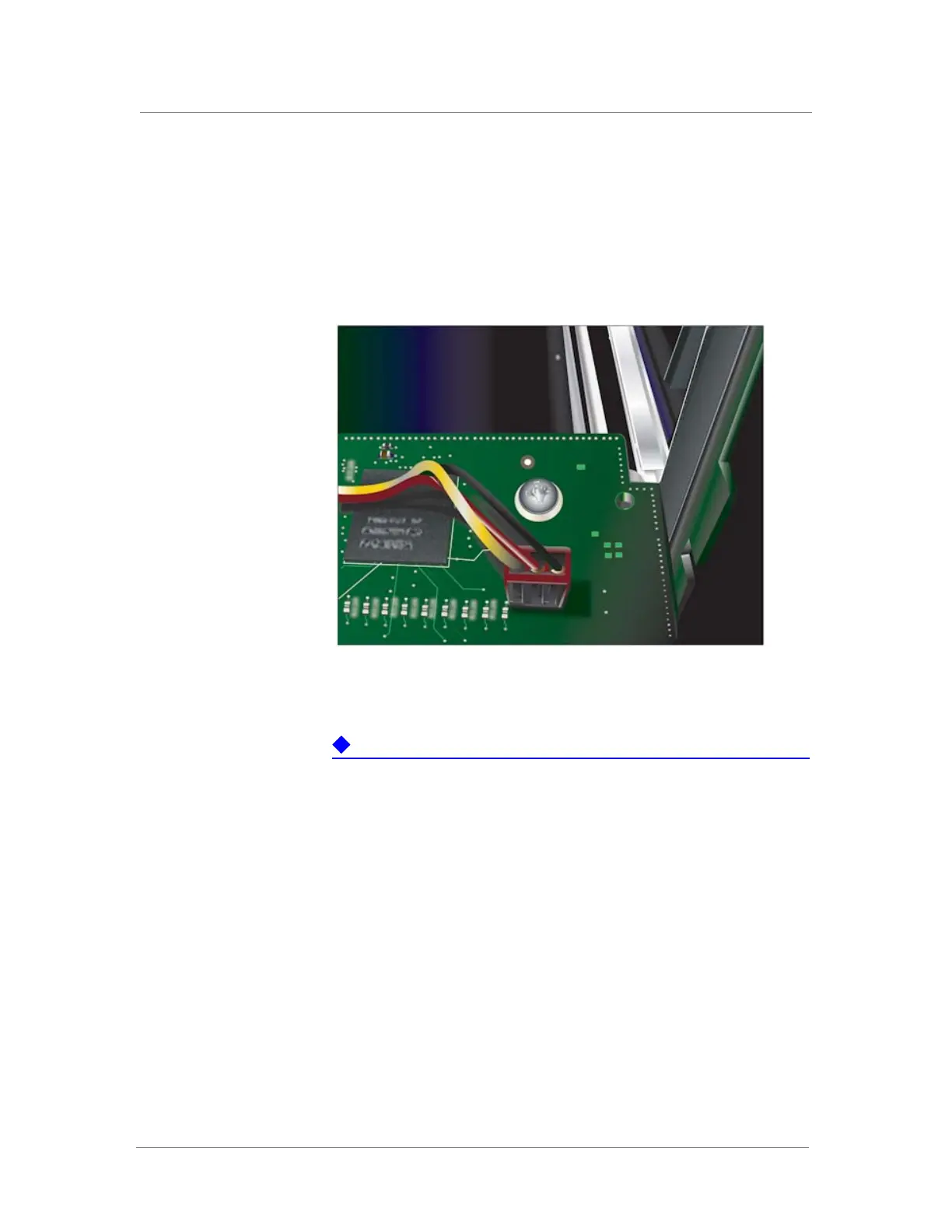

Figure 5.4 Aligning the blade in the slot
Verify that the blade is aligned with these grooves; otherwise, the blade
does not seat correctly in the platform.
3. Slide the blade in until it is fully seated in the slot.
4. When the eject levers engage the chassis, press the eject levers on
the blade towards the center of the blade until they are locked in
place as shown in Figure 5.5, on page 5-4.
