Page 67

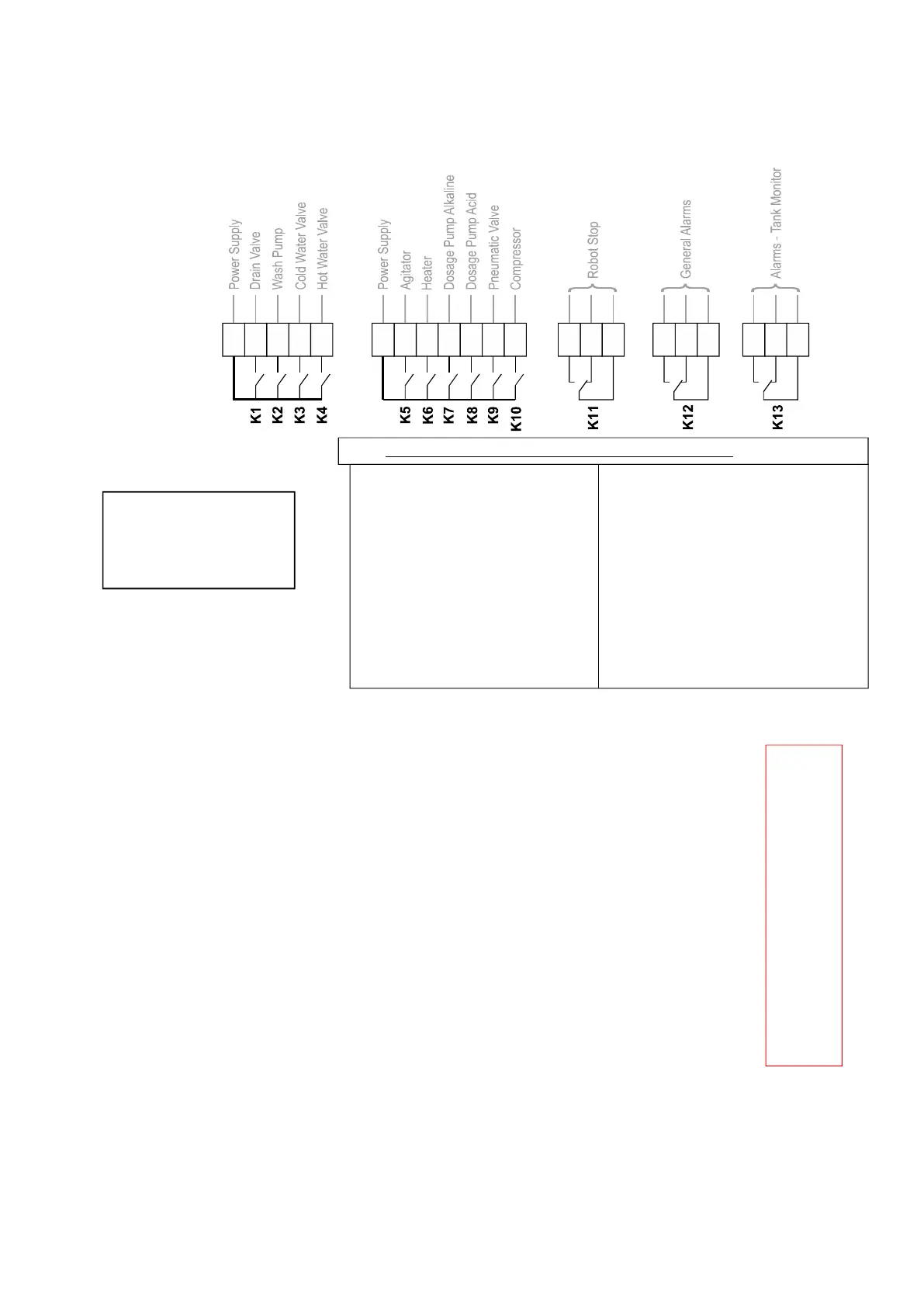

Assignment of output functions to relays K1 to K13
0: deactivated 13: cleaning active
1: alarm tank monitor * 14: alarm in general *
2: robot stop 15: drain valve 2
3: detergent „acid“ 16: hot water valve
4: heater 17: disinfection
5: cleaning pump 18: compressor 2 / 2. cooling level
6: drain valve 1 19: red warning light
7: pneumatic butterfly valve 20: compressor 3 / 3. cooling level
8: detergent „alkaline“ 21: Boost Pump
9: warm water 22: Output - multifunction relay
10: cold water 23: Output Level 2
11: compressor 1 / 1. cooling level 24: Off Mode active
12: agitator 25: Cooling active
Range Default UK/Irish
A1 assignment relay K1 5 6 60 .. 2
A2 assignment relay K2 5 5 50 .. 2
A3 assignment relay K3 5 10 100 .. 2
A4 assignment relay K4 5 9 90 .. 2
A5 assignment relay K5 5 12 120 .. 2
A6 assignment relay K6 5 4 0 .. 2 21
A7 assignment relay K7 5 8 80 .. 2
A8 assignment relay K8 5 3 30 .. 2
A9 assignment relay K9 5 7 70 .. 2
A10 assignment relay K10 5 1 110 .. 2 1
A11 assignment relay K11 5 2 20 .. 2
A12 assignment relay K12 5 4 0 .. 2 1 18
A1 assignment relay K13 3 5 1 10 .. 2
A14 assignment external relay K1 0 .. 25 0
A15 assignment external relay K2 0 .. 25 0
A16 assignment external relay K3 0 .. 25 0
A17 assignment external relay K4 0 .. 25 0
A18 assignment external relay K5 0 .. 25 0
4321 765E2 8 13 14
The relay functions for
assignment 1 and 14
are configured in
parameters A45 and
A46.
*
8. Setting of parameters
E1 9 10 15 16 17 18 19 20 21
