8. Setting of parameters
Assignment of output functions to digital inputs 1 to 8
0: deactivated
1: safety switch (manual butterfly valve)
2: remote start cooling
3: dry protection heating
4: thermal protection pump
5: water pressure switch
6: thermal protection compressor
7: cleaning release robot
8: milk pump impulse 1
9: milk pump impulse 2
10: milk pump impulse 3
11: Inductive stirring unit sensor / switch 1
12: Inductive stirring unit sensor / switch 2
13: Float switch ‚alkaline’
14: Float switch ‚acidic’
15: Start from rinse stop
16: Level sensor 1 (release 2nd cooling level)
17: Level sensor 2 (release 3rd cooling level)
18: Level sensor 3 (tank full)
19: Compressor lock /release
20: Low pressure error detection
21: High pressure error detection
22: Transfer function: Start button
23: Transfer function - level sensor
24: Multifunction time relay
25: External T1/T2 toggle switch
26: Milk withdrawal button
27: Off Mode button
28: Wash Start button
29: Cooling Start button
30: Manual Agitation Start button
31: Robot Stop button
32: Outlet Valve (Open/Close) button
33: Tank Monitor Reset button
Range Default

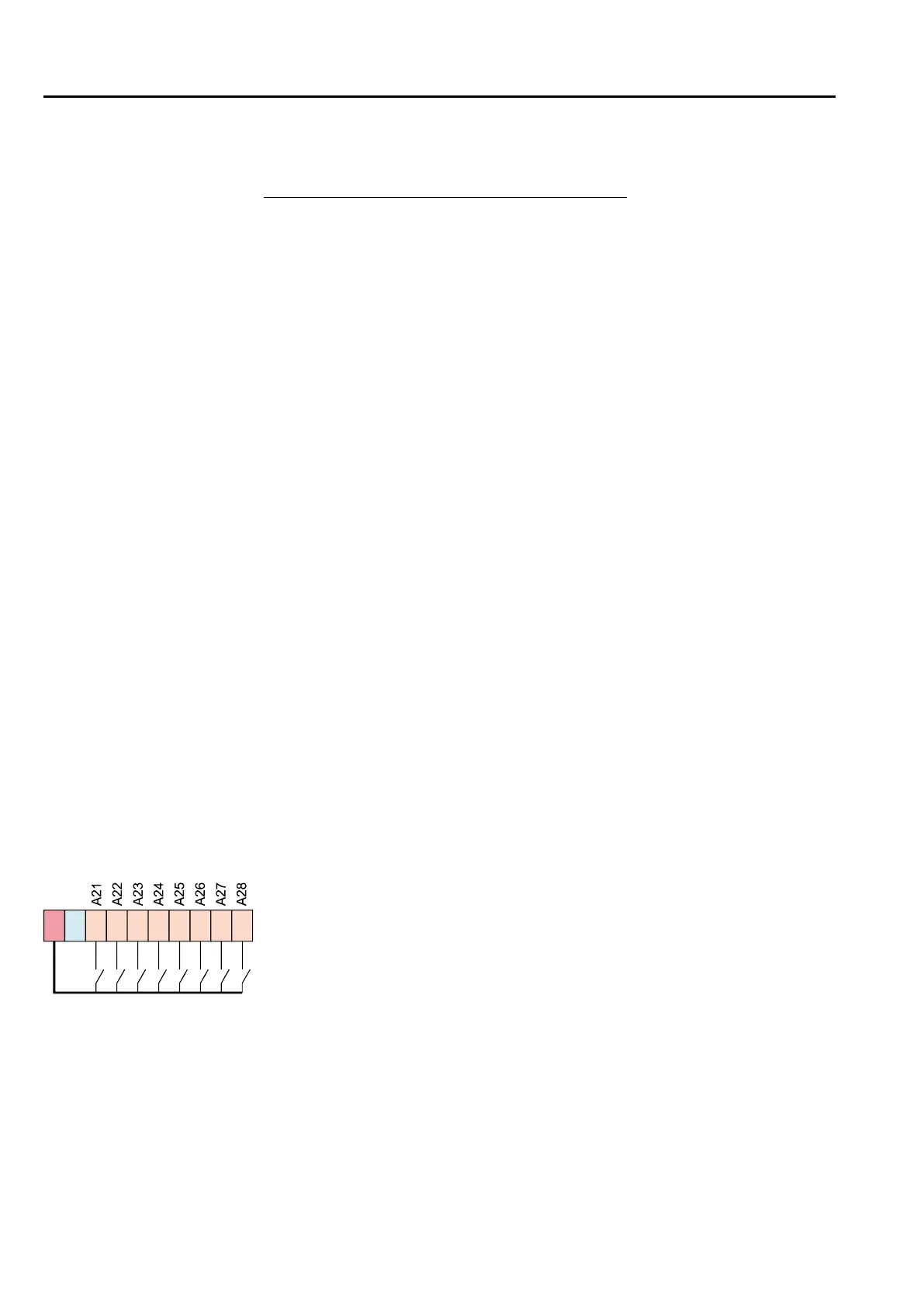

A21 assignment digital input 1 0 .. 33 5
A22 assignment digital input 2 0 .. 33 0
A23 assignment digital input 3 0 .. 33 0
A24 assignment digital input 4 0 .. 33 0
A25 assignment digital input 5 0 .. 33 0
A26 assignment digital input 6 0 .. 33 0
A27 assignment digital input 7 0 .. 33 0
A28 assignment digital input 8 0 .. 33 0
A29 assignment of external digital input 1 33 00 ..
A30 assignment of external digital input 2 0 .. 33 0
A31 assignment of external digital input 3 0 .. 33 0
A32 assignment of external digital input 5 0 .. 33 0
A33 assignment of external digital input 6 0 .. 33 0
8.10 Level “Configuration” (A parameters)
