DIMENSIONS BUILT IN AND APPLIANCE
Silva Spectra Feeling Silence Sense Serene
Builders opening (mm)
A Opening width 600 770 960 960 960 665
B Opening height 715 710 649 649 649 535
C Opening depth (min.) 370 410 385 385 385 330
Shelf dimensions
D Minimum height shelf from top frame 350 350 350 350 350 350
E Depth shelf 150 150 150 150 150 150
Dimensions of the appliance (mm)
F Box width 578 755 880 880 880 662
G Box depth 324 361 366 366 366 330
H Box height 700 695 636 636 636 535
I Frame width 629 790 1064 1064 1064 870
J Frame height 727 720 678 678 678 590
K Frame thickness 15 23 47 20 56 42
L Position flue collar measured from frame 198 260 269 269 269 234
M Position flue collar measured from back 102 98 96 96 96 96
N Height underside foot to underside frame 11 20 43 43 4 -8
O Height underside foot to builders opening
≥ N
=dimensions in the row above

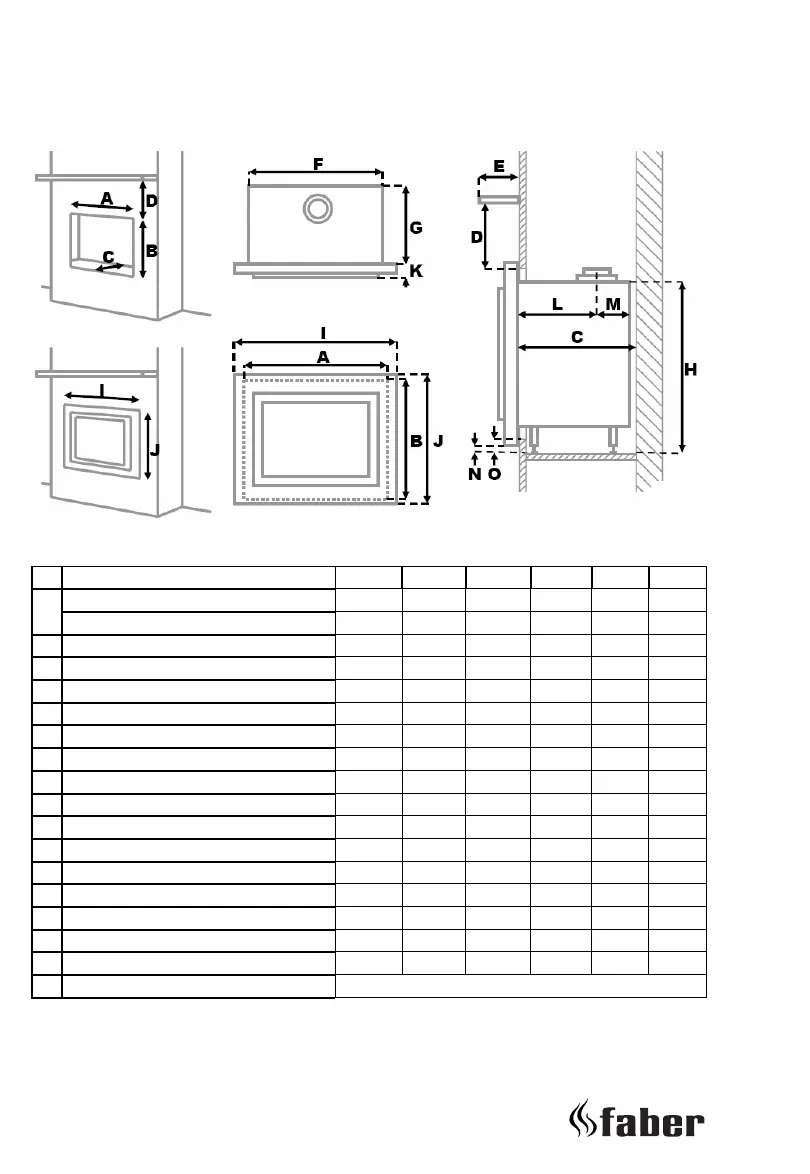

fig. 1
table 1
