FX16 Master Controller Technical Bulletin 29
The Remote Mount Antenna (LP-KIT090-003C) has a permanent
magnet in its base and is designed for mounting on a metal surface. It is
supplied with a 2.5 m (8.2 ft) long cable and an adapter to connect the
cable to the modem.

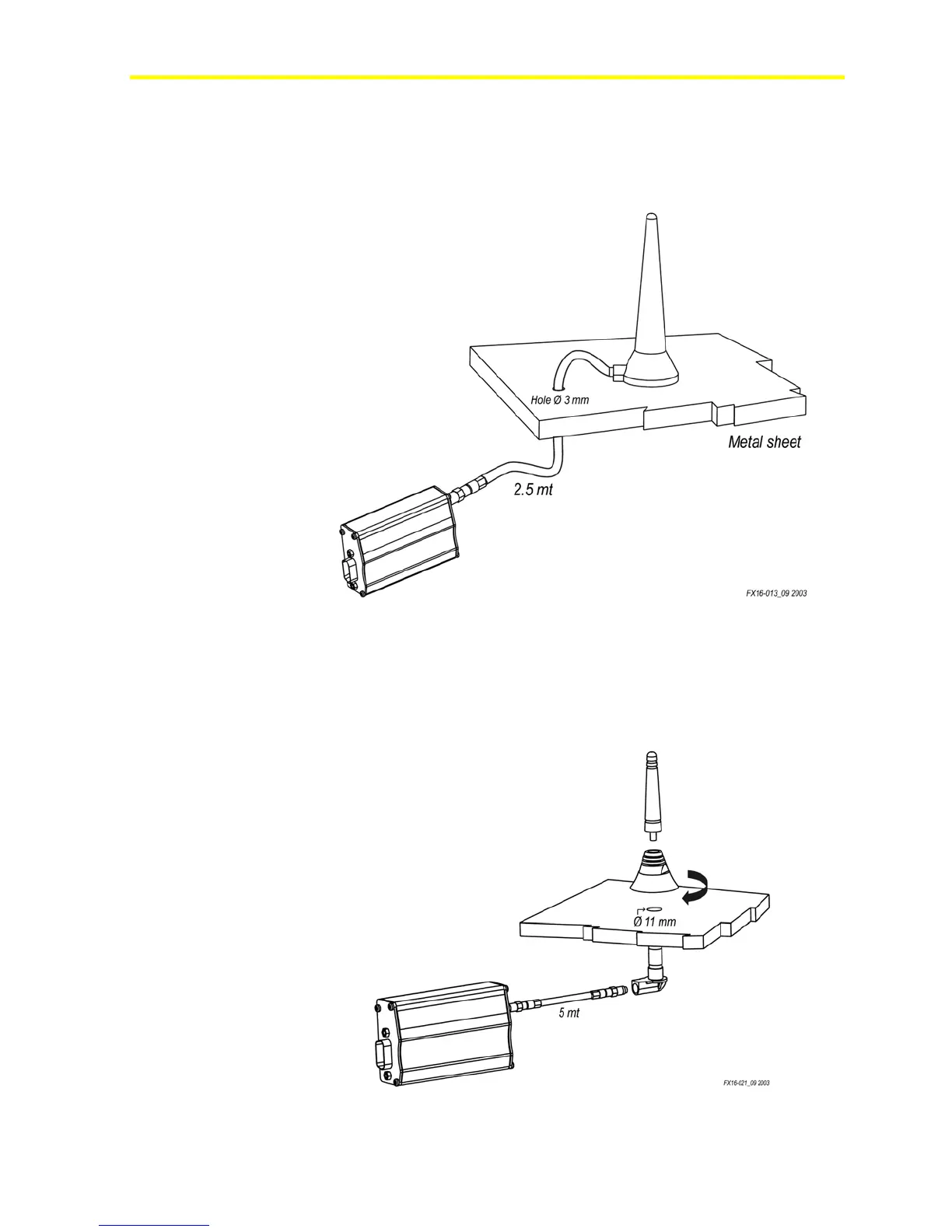

Figure 23: Remote Mount Antenna (Magnetic)
The Panel Mount Antenna (LP-KIT090-004C) is designed for
mounting through an 11 mm (0.44 in.) hole in a panel. It is supplied
with a 5 m (16.4 ft) long cable and adapters to connect the cable to the
antenna and the modem.
Figure 24: Panel Mount Antenna
