FX16 Master Controller Technical Bulletin 61
Connecting the Relays
!
WARNING: Risk of Electric Shock. Disconnect power supply before
making electrical connections. Contact with components carrying hazardous
voltage can cause electrical shock and may result in severe personal injury or
death.
The FX16 Master Controller features up to nine digital outputs with
electromechanical relays. The relays are divided into six groups and the
common terminals of relays have been grouped together.
41 51 55 6242 52 56 6343 53 5754 6144 45 46 47 48
DO1 Com
DO4 no
DO5 no
DO4/5 Com
DO6/7/8 Com
DO2 Com
DO3 Com
DO1 no
DO8 no
DO7 no
DO6 no
FAIL no
FAIL Com
FAIL nc
DO2 no
DO3 no
Max
8(3)250V~
TB6
TB5TB4
TB3
FX16-026_11 2003
Group #6Group #5Group #4Group #3Group #2Group #1

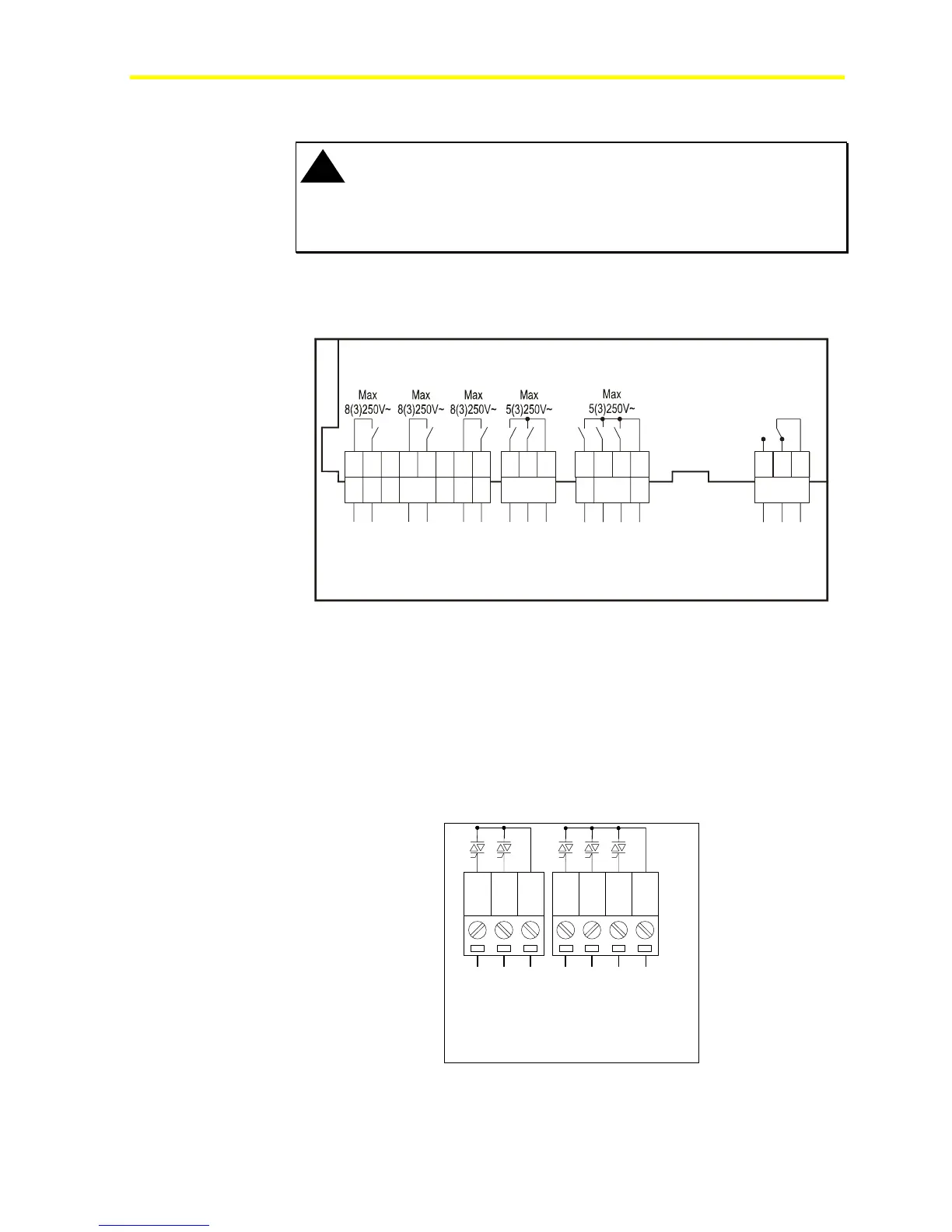

Figure 54: Relay Groups
Inside each group, you must connect the groups to the same voltage
supply. A double isolation is between the groups; therefore, you can
connect the groups to different voltage supplies.
Connecting the Triacs
The FX16 Master Controller triac (0.5 A, 24 VAC) digital outputs are
commonly used to operate in Position Adjust Type (PAT) and Duration
Adjust Type (DAT) modes.
54 575655535251
DO6 no
DO8 no
DO7 no
DO4 no
DO3 no
DO 4/5 Com
DO 6/7/8 Com
Figure 55: Triac Groups
