In particular, you can use the Digital Outputs PAT mode through the
triac outputs to drive Incremental Valve Actuators.

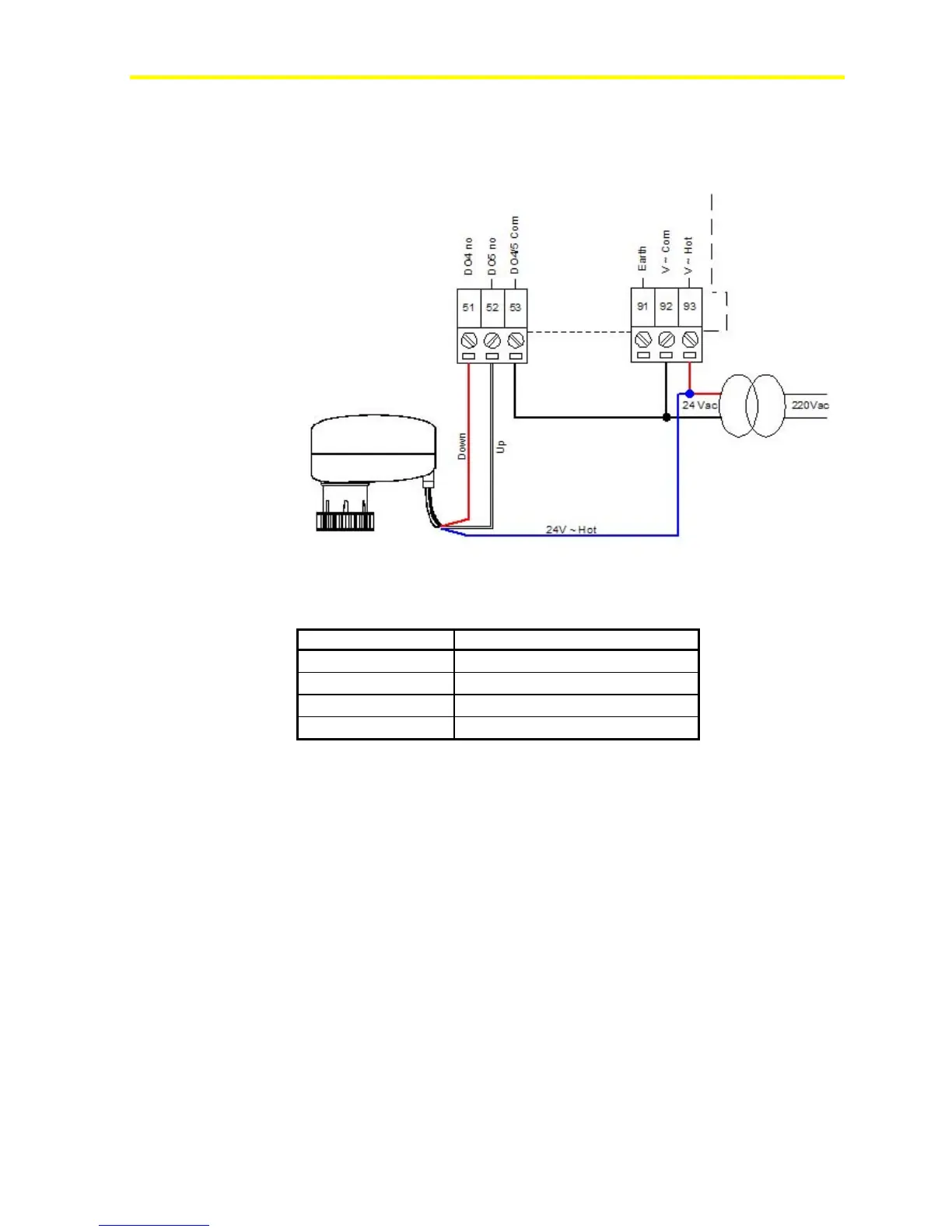

Figure 56 displays an example of a triac connection:
Figure 56: Connecting an Incremental VA-7450 Actuator
Table 20: Connecting an Incremental VA-7450 Actuator
FX16 Terminals Description
DO4 (51)
24 V ~ Down command
DO5 (52)
24 V ~ Up command
V ~ Hot (93)
24 V ~ Hot Reference
DO 4/5 Com (53)
24 V ~ Common Reference
Note: The numbers between the brackets are the FX16 terminal
numbers.
