Remote modules. RIO5, RIOW and RIOR series.
CNCelite
8058 8060
8065 8070
RIOR-E-48I32O / RIOR-E-48I32O-ANALOG (ETHERCAT).
Dimensions.
ꞏ105ꞏ
REF. 2107

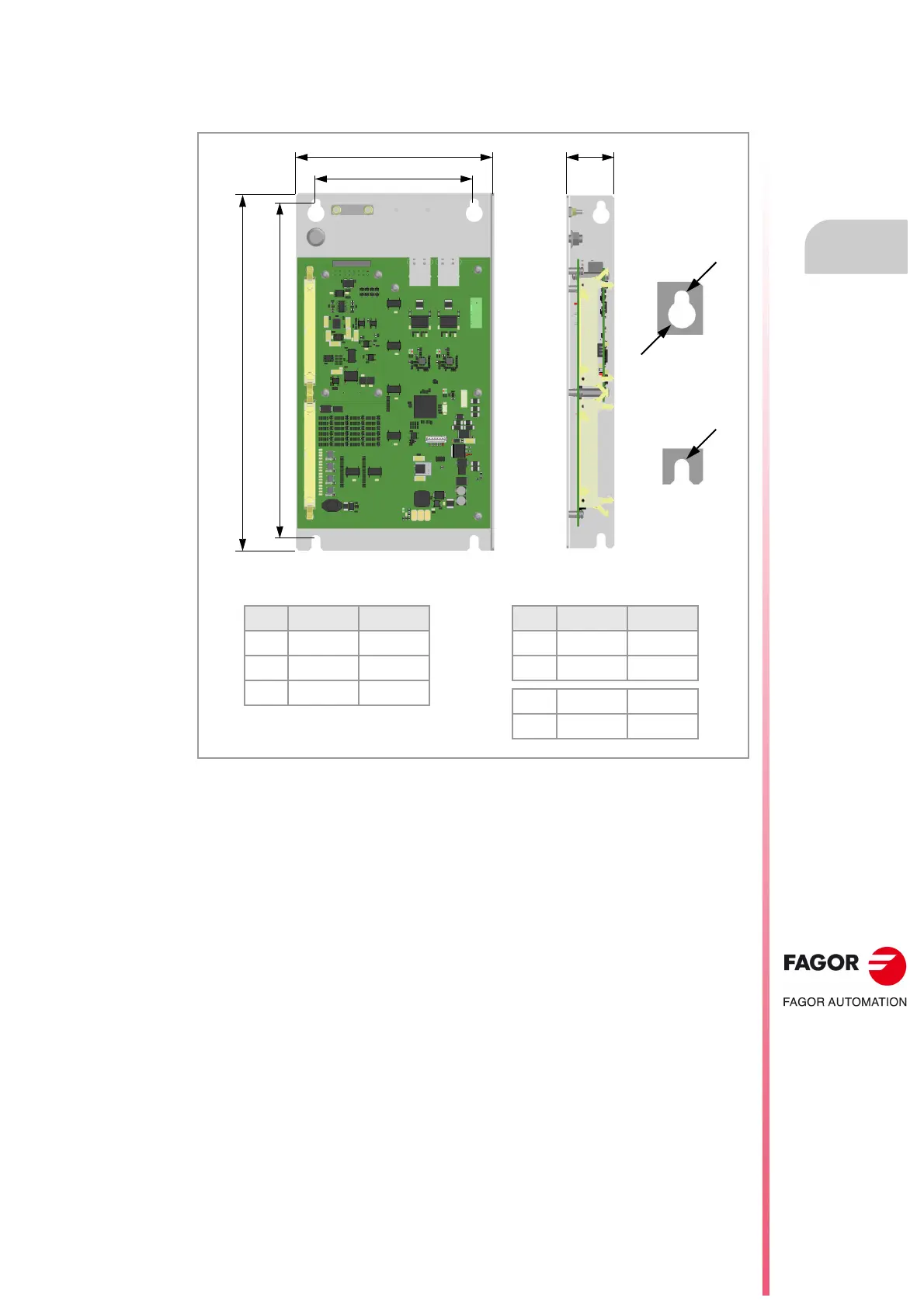

6.2 Dimensions.
Dbb
a
Da
c
mm inch
Da 120 4.72
Db 256 10.08
mm inch
a 150 5.90
b 272 10.70
c 36.50 1.44
Ra R 3.50 R 0.14
Rb R 6.50 R 0.26
Ra
Rb
Ra
