3.
RIO5 REMOTE MODULES. (CANOPEN PROTOCOL).
Digital inputs and digital outputs (double module).
ꞏ40ꞏ
REF. 2107
3.4 Digital inputs and digital outputs (double module).
This module is used to expand the digital inputs and outputs (remote I/O). Each module has
48 digital inputs and 32 digital outputs.
DIGITAL IN/OUT
X12
X13
X14
X15
I61
I72
I49
I60
GND
O48
O41
+24V
GND
O40
O33
+24V
X8
X9
X10
X11
I37
I48
I25
I36
GND
O32
O25
+24V
GND
O24
O17
+24V

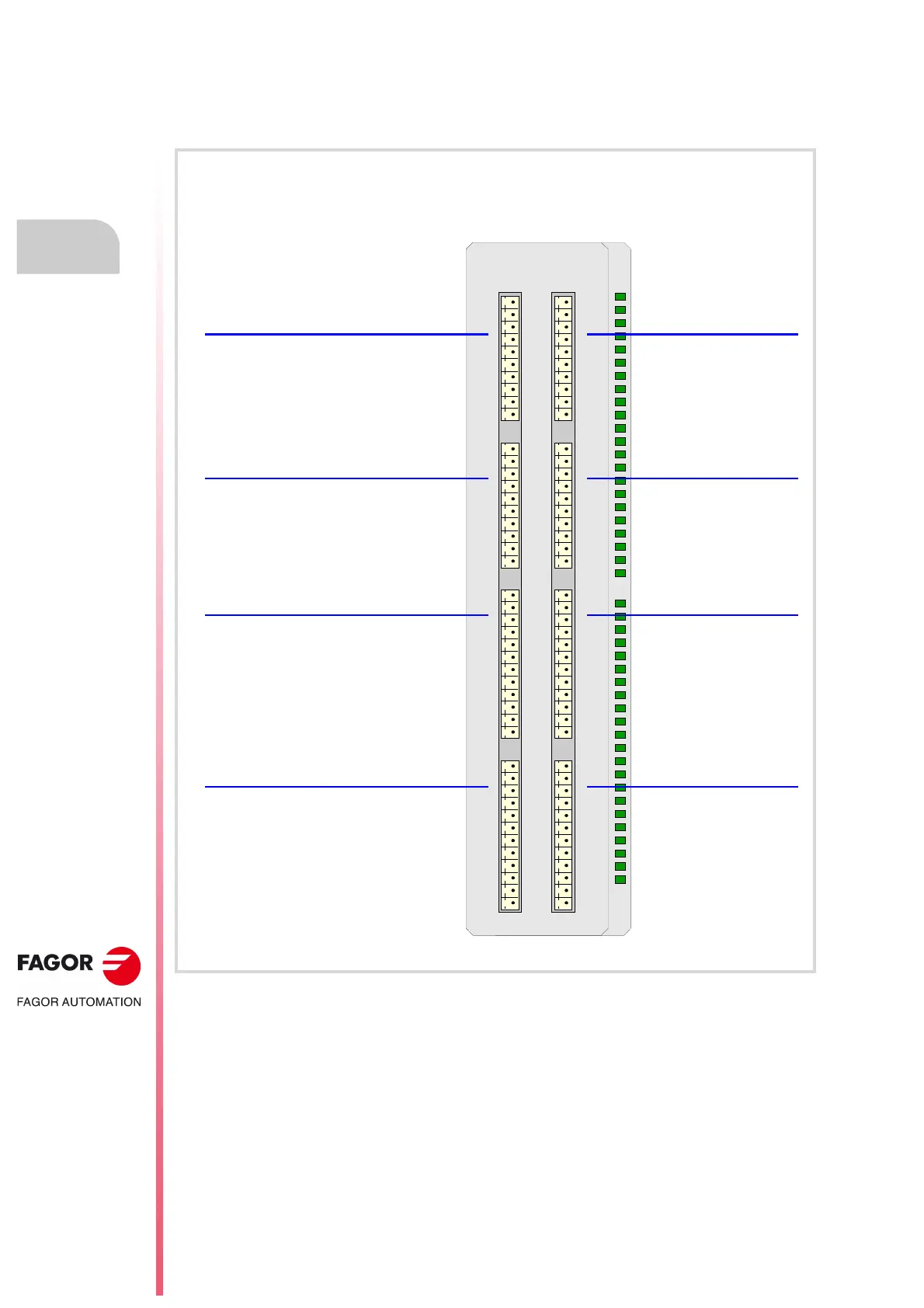

Digital inputs and digital outputs
(double module).
Connector ꞏX12ꞏ.
8 digital outputs.
Connector ꞏX13ꞏ.
8 digital outputs.
Connector ꞏX14ꞏ.
12 digital inputs.
Connector ꞏX15ꞏ.
12 digital inputs.
Connector ꞏX8ꞏ.
8 digital outputs.
Connector ꞏX9ꞏ.
8 digital outputs.
Connector ꞏX10ꞏ.
12 digital inputs.
Connector ꞏX11ꞏ.
12 digital inputs.
