4.6 RIOW-PS24 module.
This module is in charge of supplying power to the I/O modules through the side jumpers
with 24 V 10A. If when configuring the remote group, the consumption of the I/O modules
is higher, additional RIOW-PS24 modules must be added.
Power the module with an external 24V DC regulated power supply.
48
15
26
37
C
A
D
B
Power supply.
0 V reference signal.
Ground connection.
Power supply.
0 V reference signal.
Ground connection.

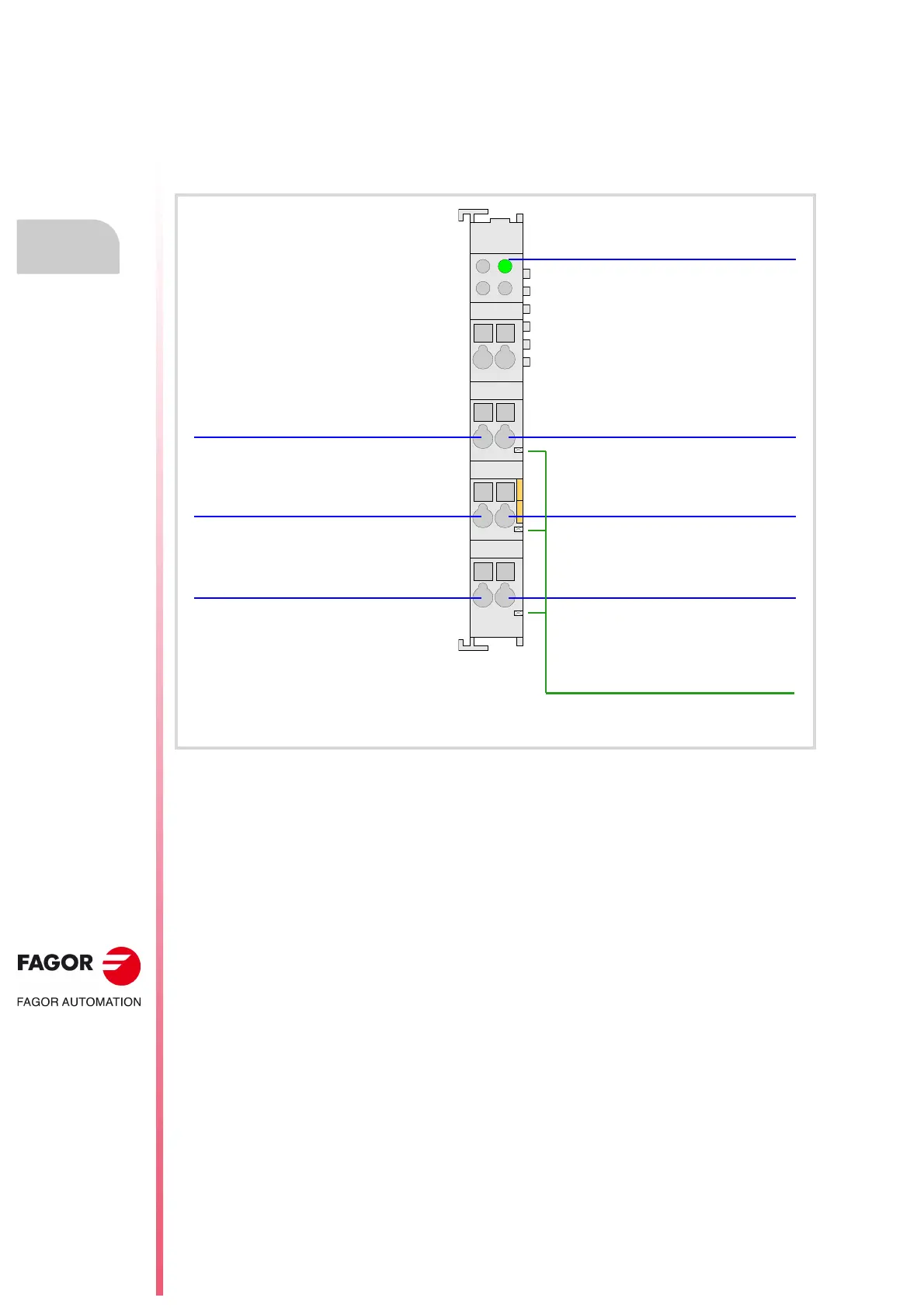

LED indicating the voltage at side
jumpers.
Jumpers to power the next module.
