Remote modules. RIO5, RIOW and RIOR series.
CNCelite
8058 8060
8065 8070
RIOW REMOTE MODULES. (CANOPEN PROTOCOL).
4.
RIOW-CANOPEN-STAND module. Leading (first) module.
ꞏ61ꞏ
REF. 2107

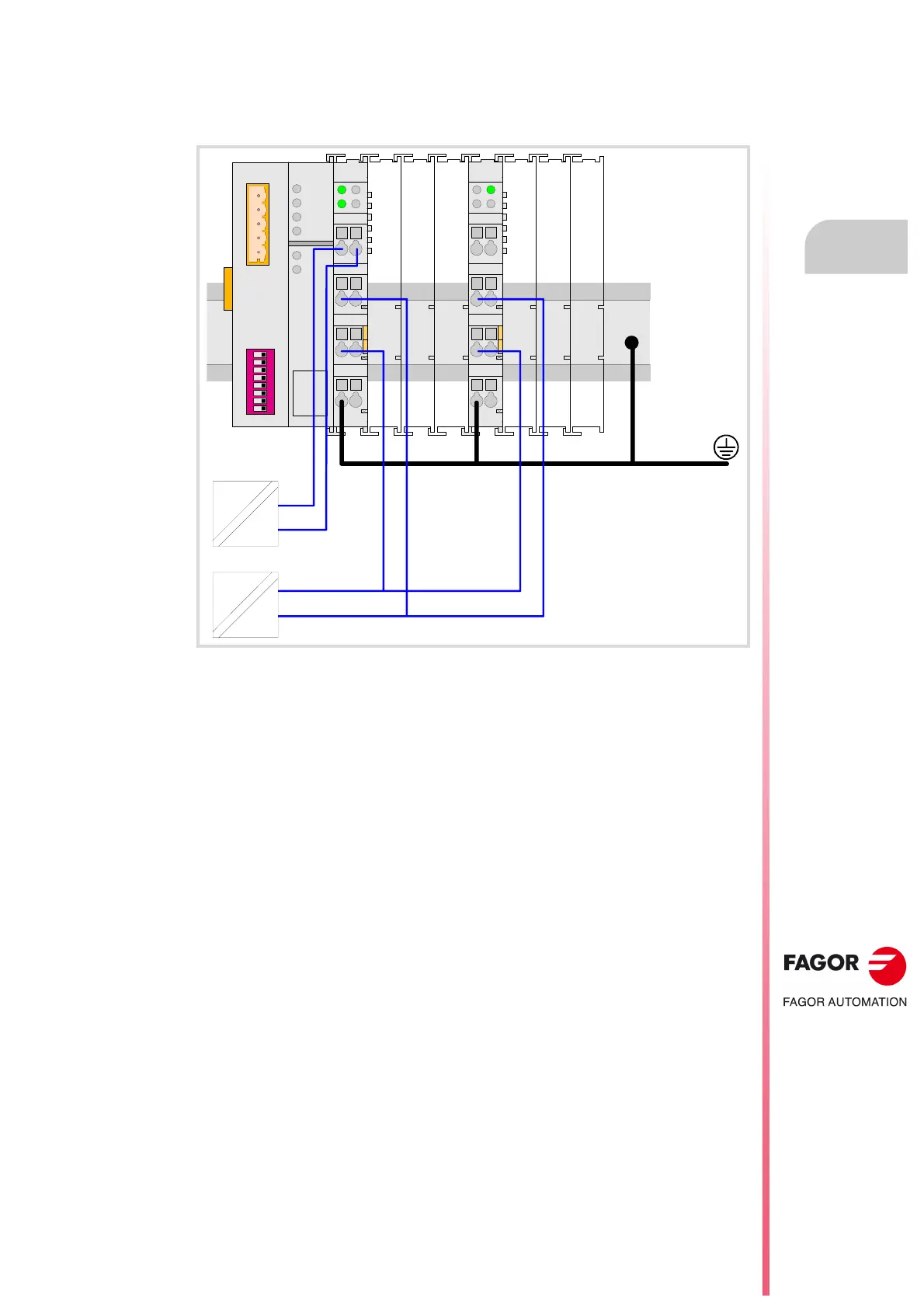

4.5.2 Voltage supply for the module.
Power for the module and for the rest of the modules must be separated in order to ensure
the operations in the bus in case of a short-circuit on the side of the actuator.
48
15
26
37
C
A
D
B
56781234
ON
STOP
RUN
TX
RX
Overflow
I/O
48
15
26
37
C
A
D
B
24 V
24 V
24 V
0 V
24 V
0 V
