RIOW REMOTE MODULES. (CANOPEN PROTOCOL).
4.
RIOW-4AI module. Module of 4 analog inputs.
ꞏ75ꞏ
REF. 2107

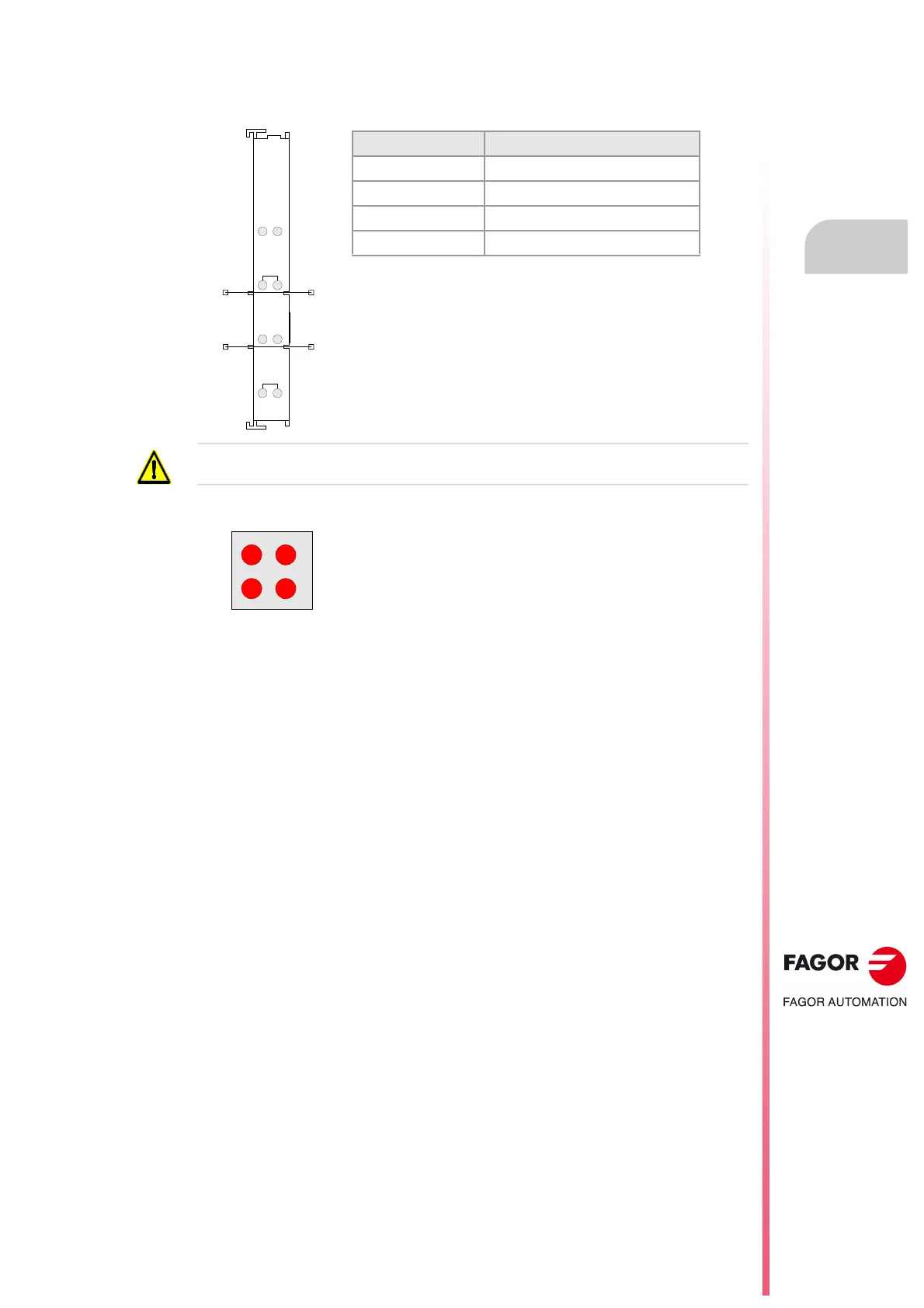

4.9.1 Elements (connectors).
Analog inputs (4 inputs).
Status indicator LED's.
AI1
GND
AI3
GND
AI2
GND
AI4
GND
24 V
0 V
Signal Function
AI1 - AI4 Analog inputs.
Common (GND) Common ground connection.
0 V Power supply.
24 V Power supply.
Connectors ꞏ2ꞏ and ꞏ6ꞏ are joined together internally.
Connectors ꞏ4ꞏ and ꞏ8ꞏ are joined together internally.
Always connect the shield of the cable to the ground plate using a metallic clamp.
Red LED's. All analog inputs have a status indicating LED that
turns on when there is an over-voltage or an under-voltage.
