Remote modules. RIO5, RIOW and RIOR series.
CNCelite
8058 8060
8065 8070
RIOR-E-48I32O / RIOR-E-48I32O-ANALOG (ETHERCAT).
Hardware functionality. Connectors.
ꞏ109ꞏ
REF. 2107

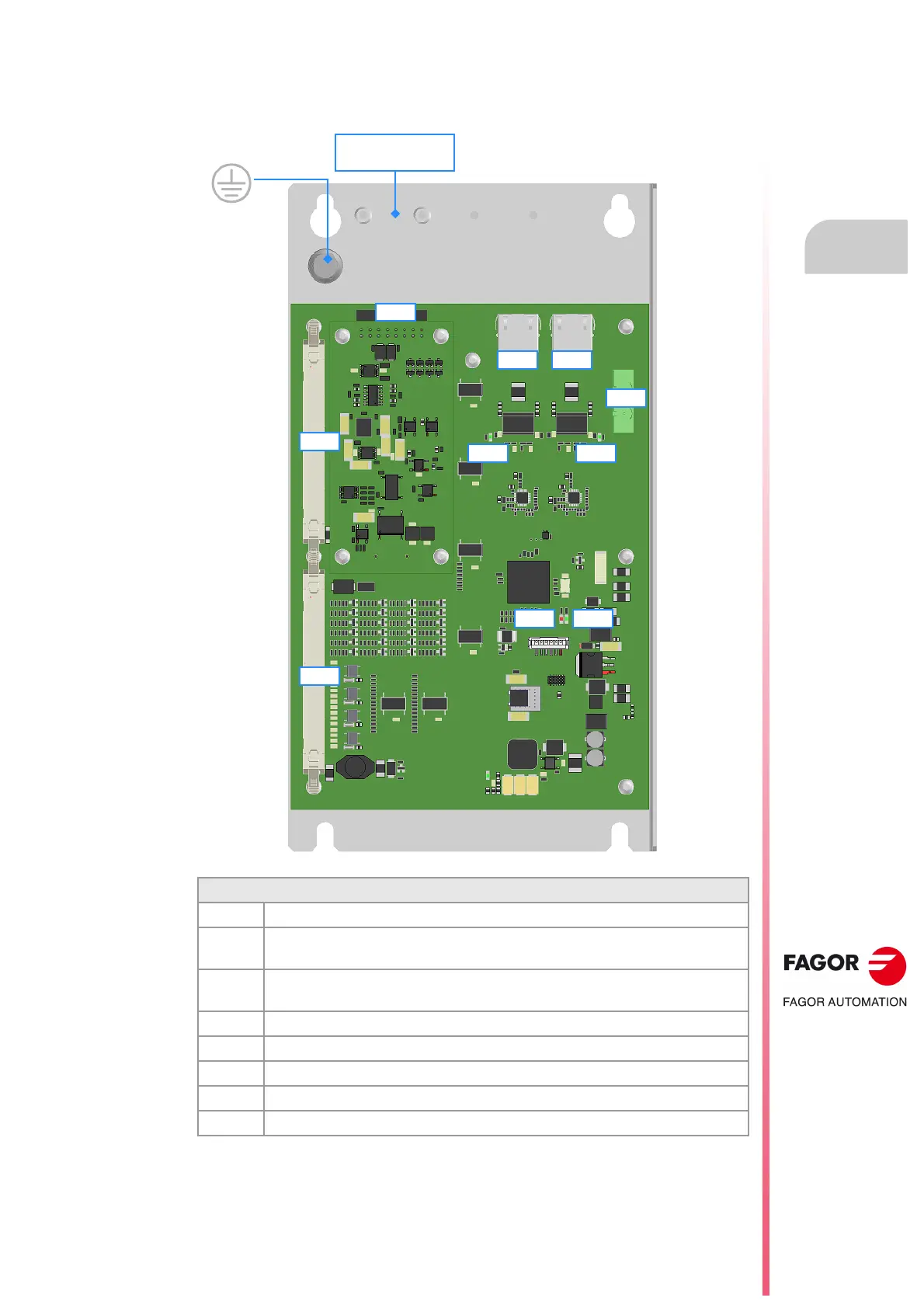

6.5 Hardware functionality. Connectors.
Connector.
A22 24 V DC supply input.
B64A
B64B
EtherCAT bus.
I44A
I44B
Digital inputs and outputs.
I48 PT100 analog inputs and outputs (only for RIOR-E-48I32O-ANALOG).
D69A L/A led of the EtherCAT bus (IN connector).
D69B L/A led of the EtherCAT bus (OUT connector).
RN RUN Led.
ER LED ERROR.
Ground plate
B64AB64B
I48
I44A
I44B
D69AD69B
A22
RNER
