Remote modules. RIO5, RIOW and RIOR series.
CNCelite
8058 8060
8065 8070

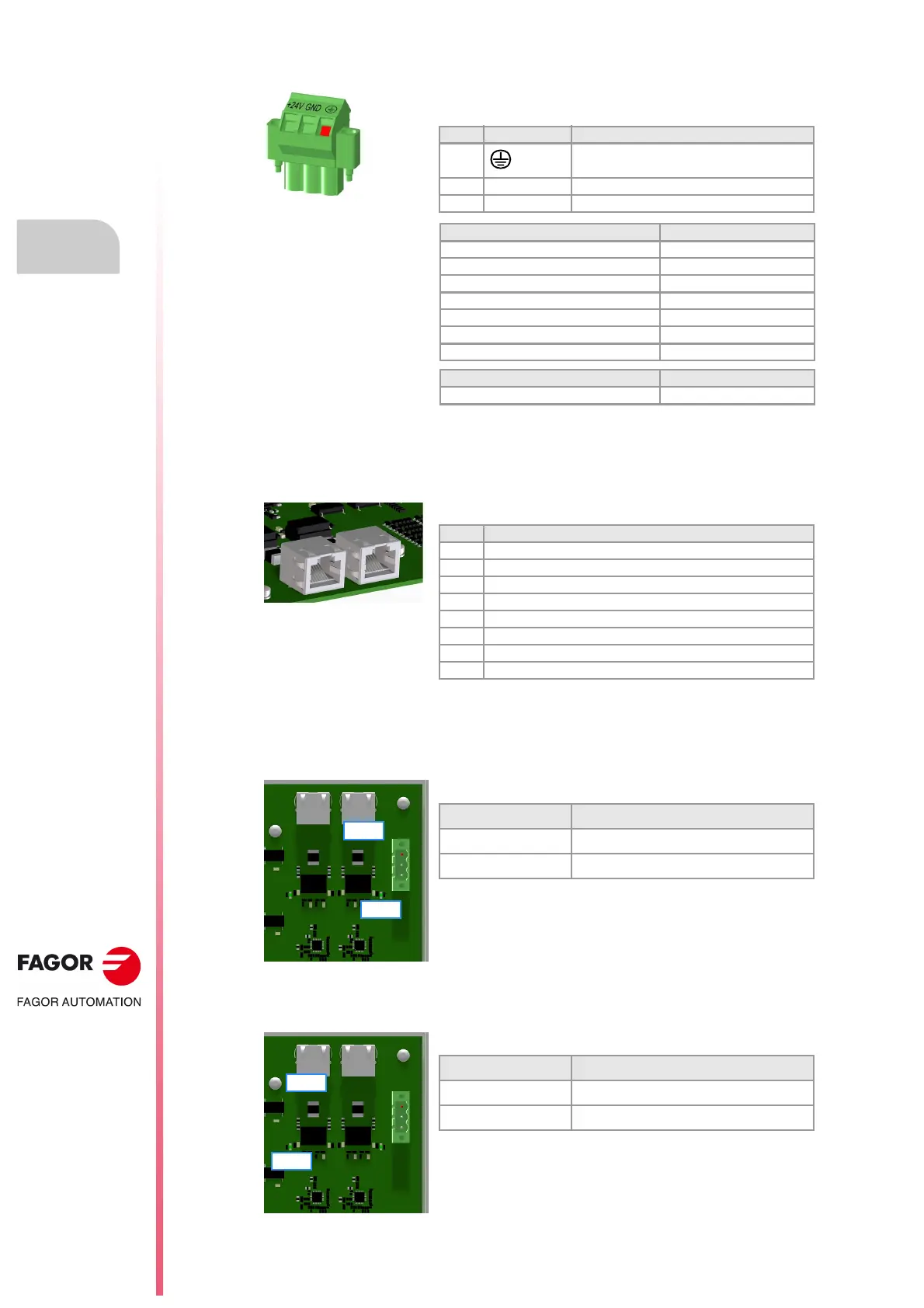

RIOR-E-48I32O / RIOR-E-48I32O-ANALOG (ETHERCAT).
Hardware functionality. Connectors.
ꞏ110ꞏ
REF. 2107
ꞏA22ꞏ 24 V DC supply input.
ꞏB64Aꞏ/ꞏB64Bꞏ EtherCAT Bus.
ꞏD69Aꞏ L/A led for IN connector.
ꞏD69Bꞏ L/A led of OUT connector.
Connector data.
Number of poles. 3.
Pitch. 5,08 mm.
Connection technique. Screw connection.
Minimum/maximum tightening torque. 0.5 / 0.6 Nm.
Minimum/maximum section. 0.2 / 2.5 mm².
Minimum/maximum AWG section. 24 / 12.
Rated current In. 12 A.
Cable data.
Length to be stripped. 7 mm.
See "6.4 Power supply for the module." on page 107.
See "6.7.2 EtherCAT bus connection." on page 115.
Plug-in part. 3-pole Phoenix-contact combicon connector (5.08 mm
pitch).
Pin Signal. Function.
1 - - -.
2 GND 0 V reference signal.
3 +24 V Power supply.
RJ45 connector for 4-wire cable.
Pin. Signal.
1TD +
2TD -
3RD +
4 - - -
5 - - -
6RD -
7 - - -
8 - - -
The LED is green.
Blinking rate. Description.
On. Module connected to bus.
Blinks. Transmitting/receiving data
B64A
D69A
The LED is green.
Blinking rate. Description.
On. Module connected to bus.
Blinks. Transmitting/receiving data
D69B
B64B
