5.5 CAN bus connection.

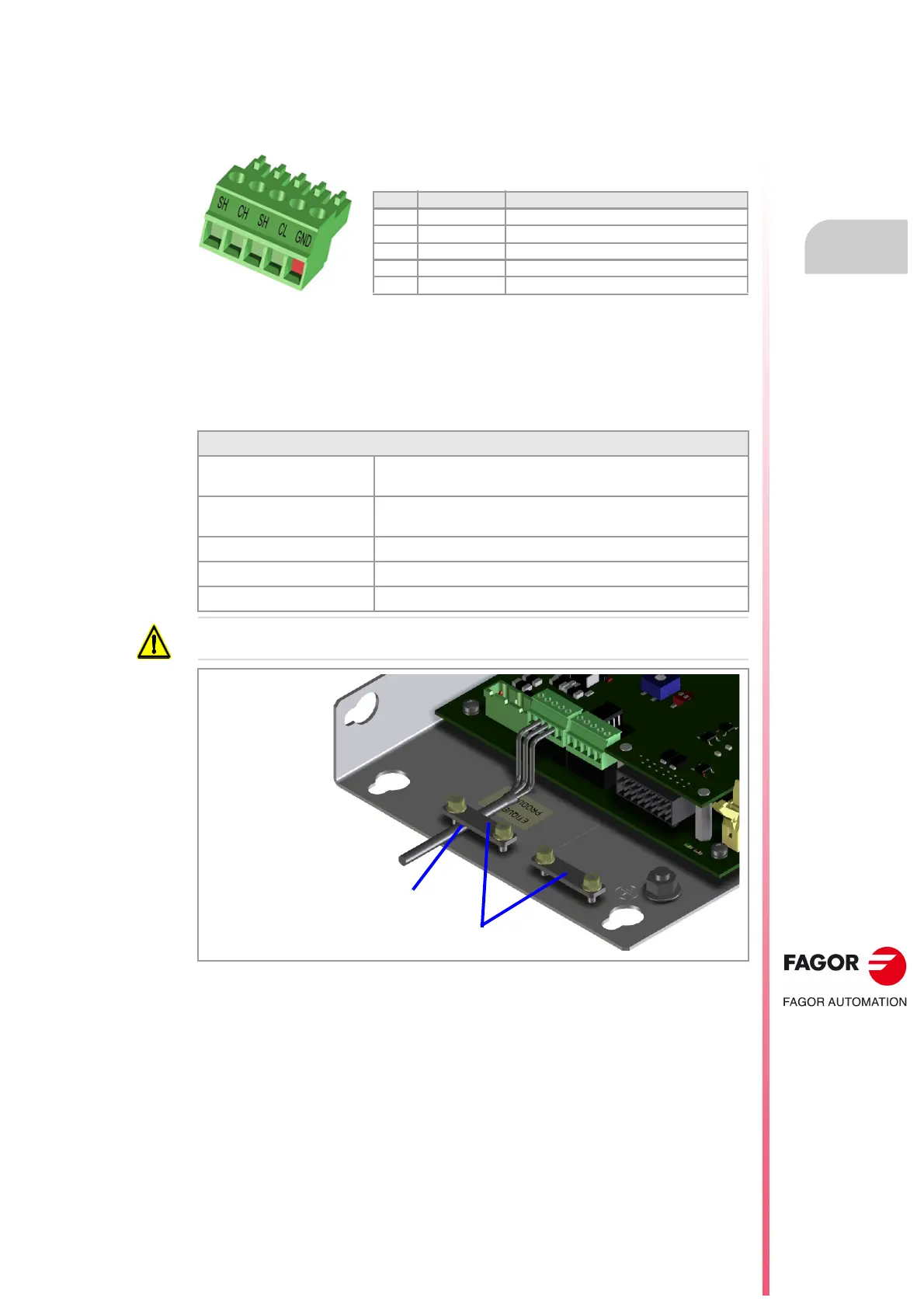

ꞏB28Aꞏ/ꞏB28B connector pinout.
Cable characteristics.
Use a specific CAN cable. The ends of all the wires and the shield must be protected by the
corresponding terminal (pin). Also use the terminals (pins) to secure the cable to the
connector.
General characteristics.
Type. Shielded. Twisted pair (1 x 2 x 0.22 mm²) with a characteristic
impedance of 120 AWG 24 gage.
Flexibility. Extremely flexible. Minimum bending radius, static = 50 mm and
dynamic = 95 mm.
Cover. PUR
Impedance. Cat.5 (100 - 120 )
Capacity. 50 ns/
Plug-in part 5-pole Phoenix contact minicombicon connector (3.5 mm
pitch).
Pin. Signal. Function.
1 - - - Not being used.
2 CL (LOW) bus signal.
3 SH CAN shield.
4 CH (HIGH) bus signal.
5 - - - Not being used.
Always connect the shield of the cable to the ground plate of the module itself.
Shield.
Ground plate.
